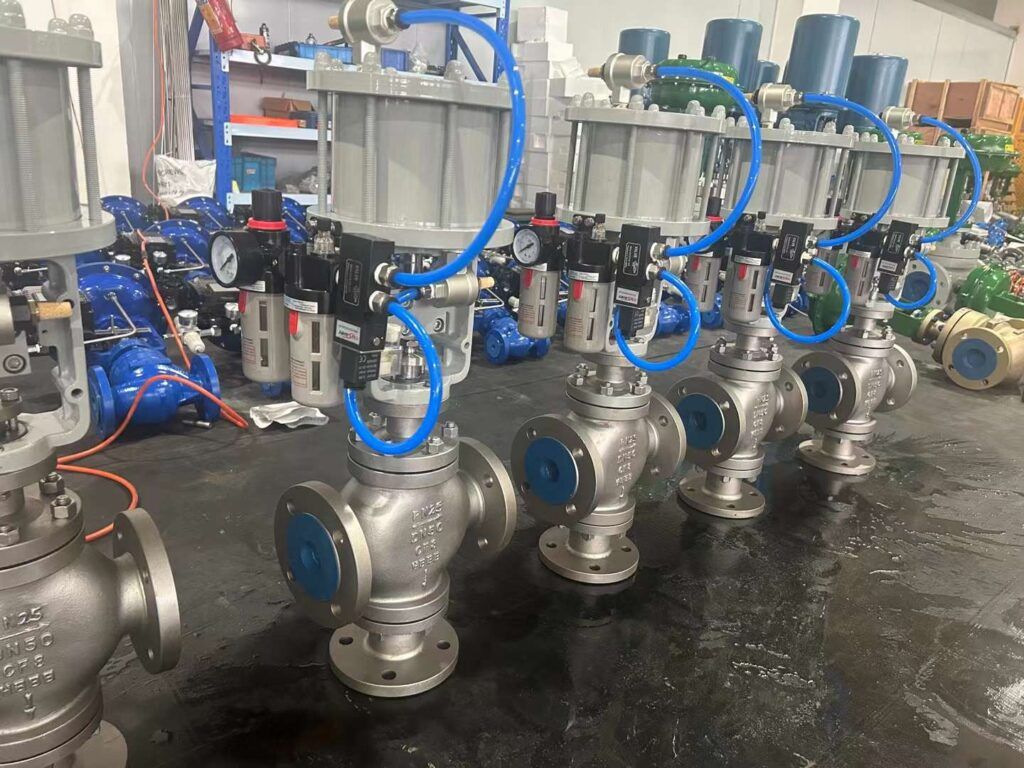

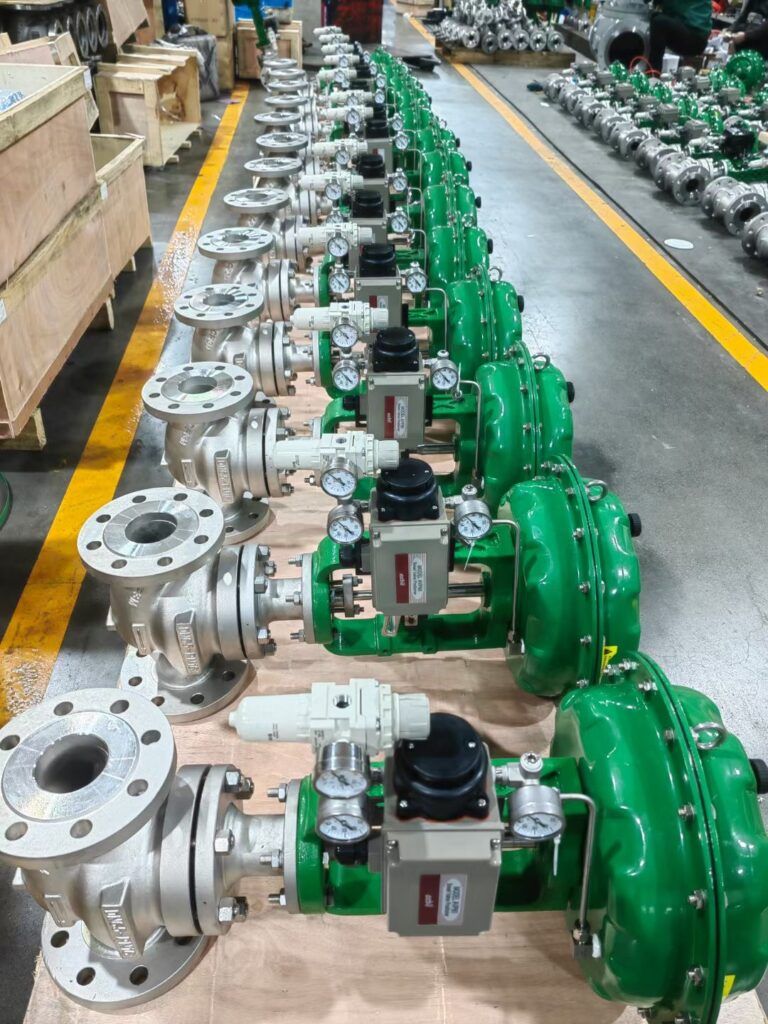

Pneumatic Three-Way Control Valve

In modern industry, the efficiency and safety of fluid control systems are crucial. The pneumatic three-way control valve, as a key automation control device, is widely used for precise regulation of gases, liquids, and steam. This article will detail the construction, working principle, features, and maintenance of pneumatic three-way control valves, providing a reference for industrial applications.

What is a Pneumatic Three-Way Control Valve?

A pneumatic three-way control valve consists of a multi-spring pneumatic diaphragm actuator and a cylindrical thin-walled window valve core. Its design aims to achieve automatic regulation of fluid media in process pipelines, widely applied to ensure that parameters such as pressure, flow rate, temperature, and liquid level remain at set values. This valve can either divide one fluid into two flow paths or combine two fluids into one, making it suitable for various industrial scenarios.

The ZJHF and ZJHH series pneumatic three-way control valves feature an efficient guiding design, with simple structure, light weight, and quick response. They have a nominal pressure range of PN16, 40, and 64, a nominal diameter range of DN25 to 300, and can handle fluid temperatures from -60°C to +450°C, with a leakage standard of Level IV.

Features of Pneumatic Three-Way Control Valves

  • Automation Control: As an actuator in automation control systems, the pneumatic three-way control valve utilizes an electric-pneumatic valve positioner to receive control signals and achieve precise regulation.

  • Action Mode: The valve can be categorized as either direct action (air-closed) or reverse action (air-open) to meet different process requirements.

  • Valve Core Structure: Its cylindrical thin-walled window valve core design ensures good guiding and stability, accommodating various fluid states.

  • Flow and Split Functions: The valve can achieve both three-way merging and splitting functions, catering to different working conditions.

  • Replaceability: The pneumatic three-way control valve can replace two simultaneous two-way control valves, achieving splitting, merging, and proportional regulation functions.

Working Principle of Pneumatic Three-Way Control Valves

The working principle of the pneumatic three-way control valve involves using compressed air as the power source, employing a cylinder as the actuator, and utilizing electric valve positioners and other accessories to achieve either on-off or proportional regulation. The valve adjusts the flow, pressure, and temperature of the pipeline media based on received control signals.

Main Component Materials of Pneumatic Three-Way Control Valves

The main component materials of the pneumatic three-way control valve include the valve body, valve cover, valve core, and valve seat, typically made from corrosion-resistant and high-temperature-resistant materials to ensure the valve’s strength and durability. Additionally, the diaphragm, packing, springs, and other components are made from high-quality materials to ensure sealing performance and sensitivity.

Maintenance and Care for Pneumatic Three-Way Control Valves

  • Define Purpose: The purpose of maintaining the pneumatic three-way control valve is to extend its service life and ensure normal operation.

  • Lubrication: Regularly apply lubricating oil, molybdenum disulfide, or graphite powder to the valve stem threads to reduce friction.

  • Regular Checks: Even valves that are not frequently opened and closed should be periodically turned and lubricated to prevent rust.

  • Protection Measures: Outdoor valves should be equipped with protective covers to prevent rain, snow, and dust from entering.

  • Lubrication Oil Maintenance: If the valve is mechanically actuated, regularly add lubricating oil.

  • Keep Clean: Regularly maintain the cleanliness of the valve to ensure normal operation.

  • Check Integrity: Periodically inspect the integrity of the valve’s components to ensure all parts are functioning properly.

Conclusion

As a vital component of fluid control systems, the pneumatic three-way control valve has achieved significant results across various industrial fields due to its excellent performance and flexibility. Proper maintenance and care can further extend its service life, ensuring efficient operation under various working conditions. Choosing the right pneumatic three-way control valve will help enhance industrial automation levels, ensuring safe and stable production.
