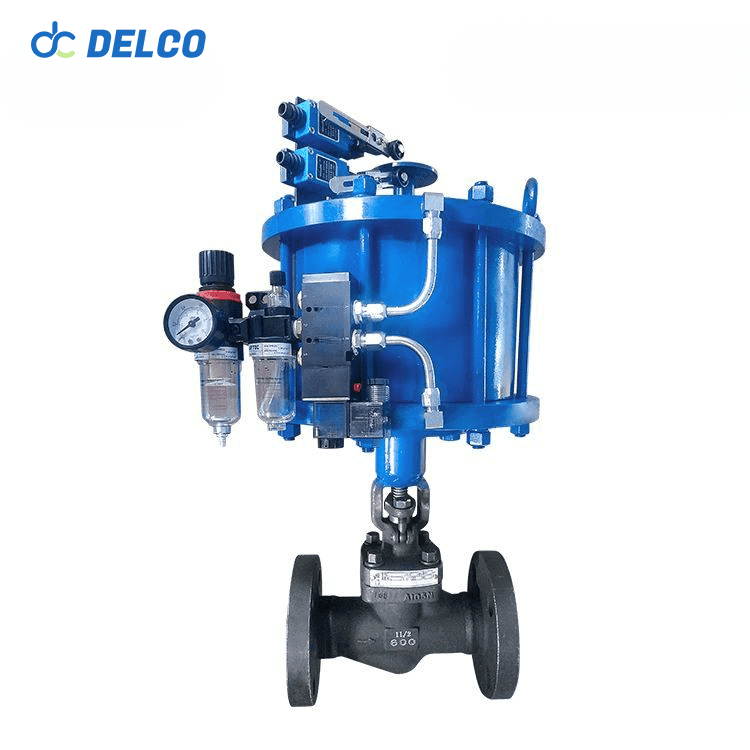

DELCO Carbon Steel Flange Linear Pneumatic Actuator Globe Valve
Model:Linear Pneumatic Globe Valve
Size Range: DN15 to DN150
Pressure Range:16bar to 25bar
Material:Stainless Steel or Carbon Steel
Benefits of Pneumatic Globe Valves:
Pneumatic valves offer cost-effective, fast and responsive operation with low maintenance requirements. They ensure safety in hazardous conditions, provide effective sealing solutions, and boast versatility through seamless integration with different control signals and automation systems.
- Adjustable travel stop for the rod-retract position, piston bottoms out for the rod-extend position. Specific travel applications available, consult factory.
- Spring rod nut is loc ked to prevent unauthorized disassembly of the spring cartridge
- Pneumatic cylinder material is hard anodized aluminum.
- Drive rod material is carbon steel chrome plated. with option for stainless steel
- Other colors/coatings available upon request
- Consult factory for custom thrust, travel and pressure requirements.
Data Sheet of Valve：
Actuator Type | Spring Return / Double Acting | Size Range | DN15 to DN150 |
Connection | Flange | Seal Material | EPDM / Metal |
Medium | Air, water, wastewater, oil, mud, etc | Working Pressure | PN16 |
Body Material | Carbon Steel or Stainless Steel 304/316/316L | Temperature Of Media | -10 to 400℃ (14℉ to 752℉) |

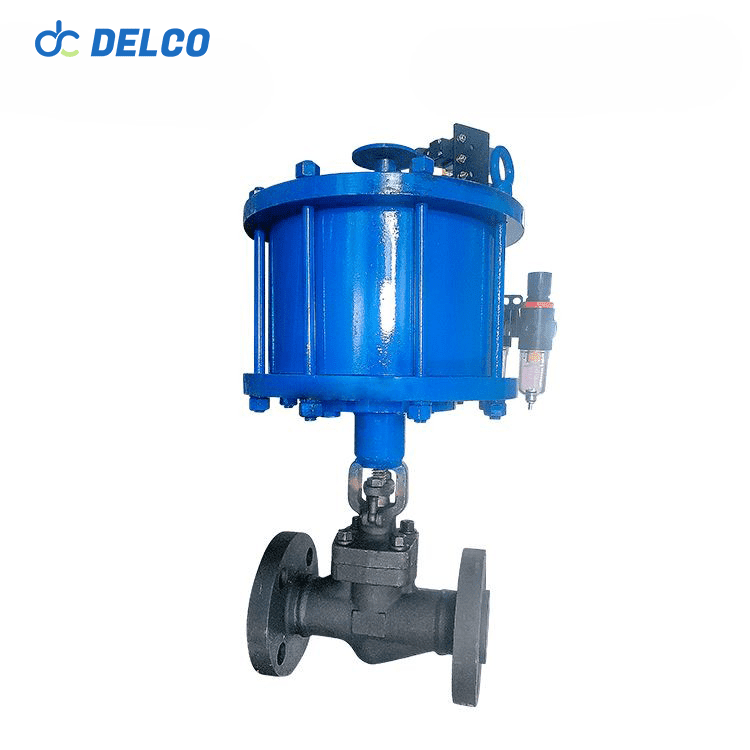

DELCO Flange Type Linear Pneumatic Actuator Globe Valve
Pneumatic Valve Accessories:
Air source processor: The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.
Pneumatic solenoid valve: The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.
Limit switch: The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.
Valve positioner: The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.
Manual device: The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
One-time business is not our goal, we pursuit for long-term partner relationships.
We are not just providing simple quotes but experts in selection, calculation, and drawing.
