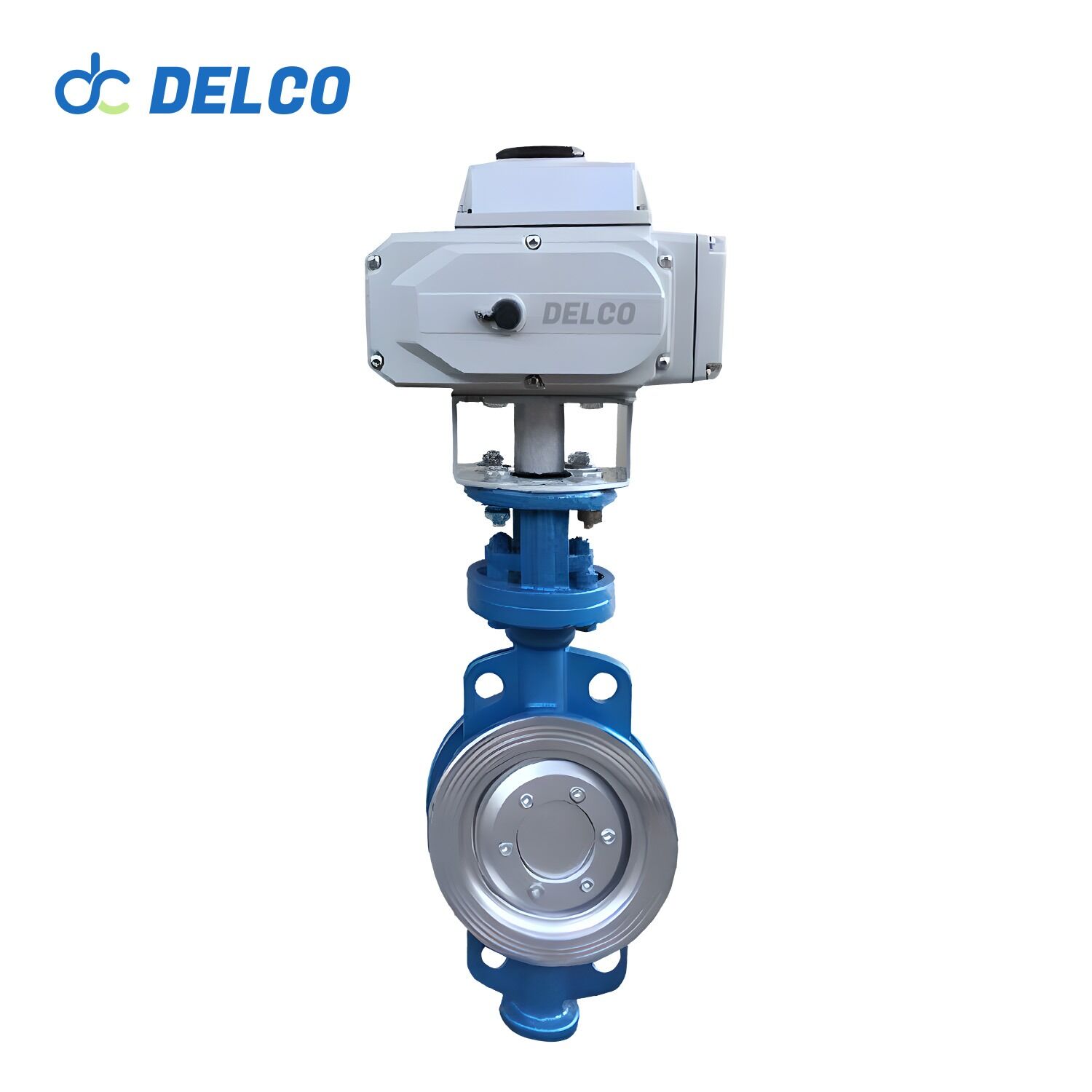

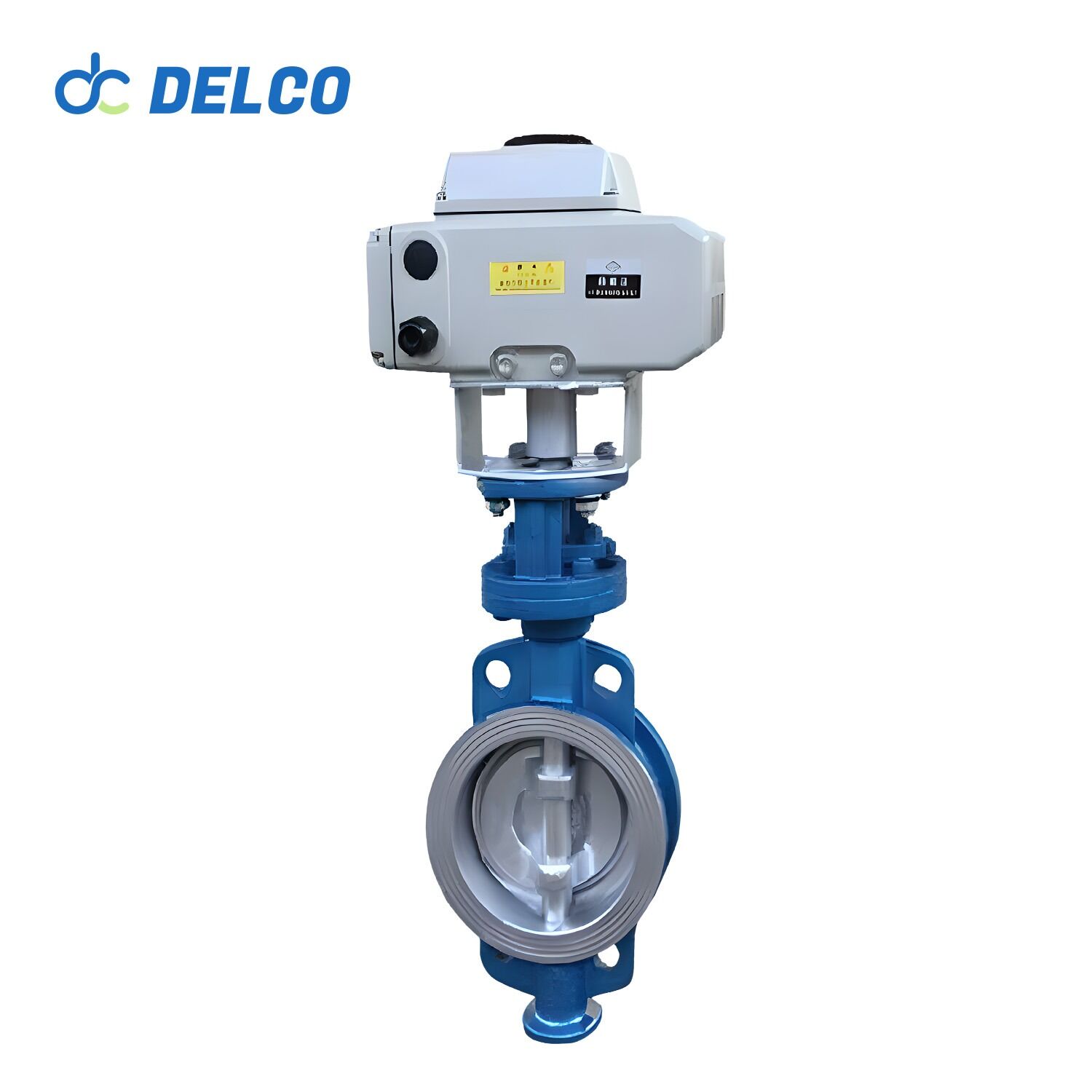

Hard Cast Iron Seal Wafer Butterfly Valves-DK56-WB-G
The wafer butterfly valves often just has two or four non-threaded holes to hold it in place and align it with two flanges that are mated. When using a wafer valve, a lengthy bolt or threaded rod that goes straight through the valve’s two flanges is employed. By pulling the flanges together, the valves is held in place. The purpose of a wafer butterfly valves is to maintain a seal to guard against double-directional pressure differential in liquid flow.
Butterfly wafer valves are used in home pipes, firefighting equipment, and ships. These valves are commonly employed in the cooling water system for thermal power plants in addition to other general industries, including petroleum, chemical, gas, and water treatment. Butterfly wafer valves are also appropriate for pressurized applications involving air or gas.
- Model: Butterfly Valve
- Size Range: 2”~16”
- Pressure Range: 1.0MPa to 2.5MPa
- Material: Cast Iron, Stainless Steel 304/316
Description
The butterfly wafer valve is made up of a lot of additional parts. They consist of the body, seal, packing, stem, actuator, and resilient seat. To create the ideal seal, the robust seat is positioned on the valve’s body. In the event that the robust seat is harmed, the packing offers an extra seal.
There are various configurations for industrial butterfly valves. Based on the method, some operate manually while others do it electronically. They come in various styles as well, which can be acquired from an industrial valve supplier. There are some that offer excellent performance in front suctions and huge pump lines.
Hard Cast Iron Seal Wafer Butterfly Valves technical Parameter
| Body | Valve components | ||
| Size range | DN50~DN400 | Sealing material | PTFE |
| Body material | Cast Iron, Stainless Steel, WCB | Core material | Stainless steel |
| End conection | Wafer, Flange | Stem material | Stainless steel |
| Operating pressure | 1.0 , 2.5 MPa | Applicable media | Water, oil, Gas, Liquid, steam, powder, anti-corrosive base |
Advantages Of Wafer Butterfly Valves
Here are the main advantages of butterfly wafer valves:
The flowing medium can travel through a stream-lined butterfly disc without experiencing a significant pressure reduction or flow restriction.
Butterfly wafer valves are quick-acting; to switch the valve from the completely open to the entirely closed position, the stem only needs to be moved 90 degrees (1/4 turn).
The butterfly wafer valve design is well adapted for flow regulation and does not produce much turbulent flow when somewhat opened or shut down.
The butterfly wafer valves are better appropriate for larger applications since they are often less expensive and not heavier.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK56-WB-G | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
