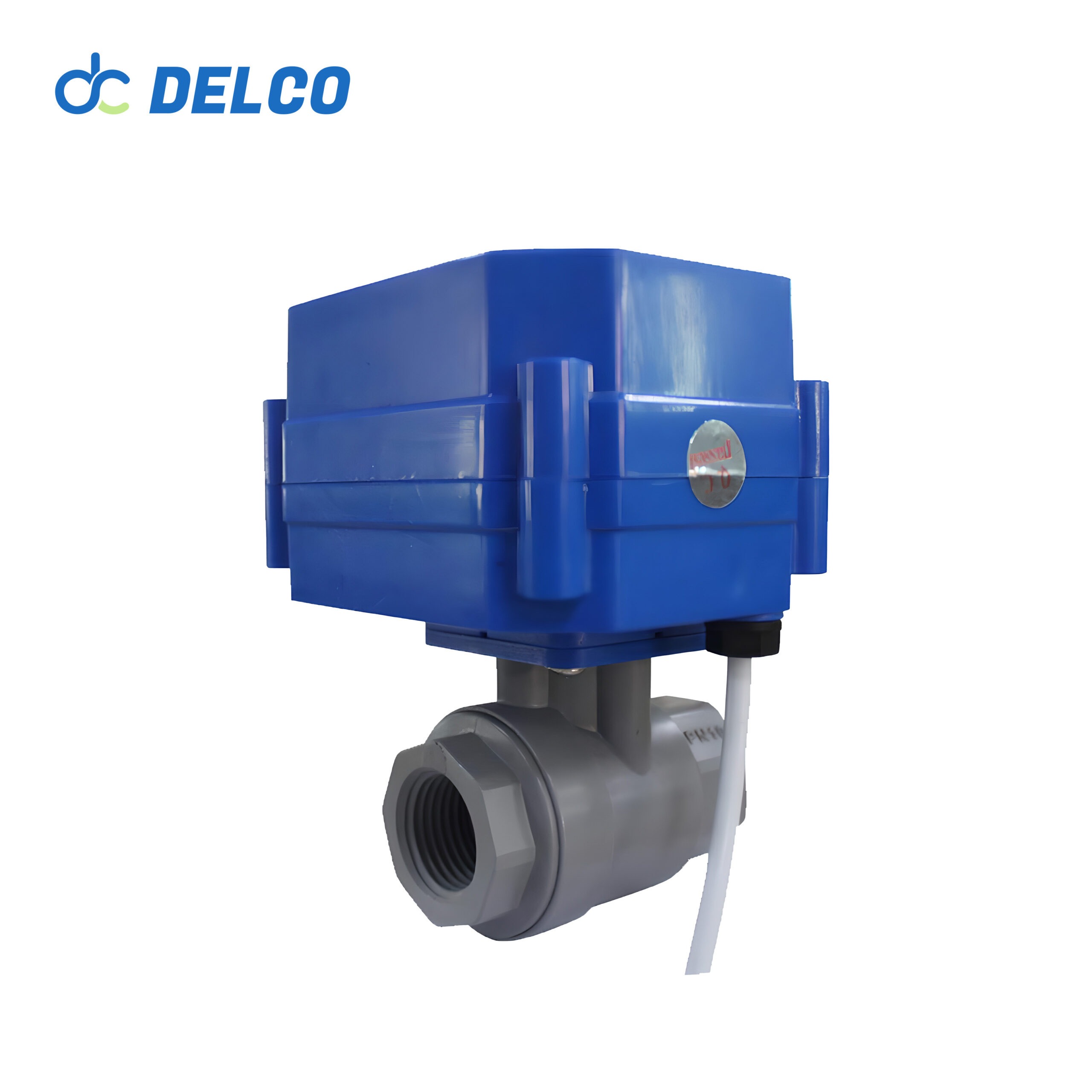

DELCO Valves 2 Way 3/4” UPVC Mini Electric Ball Valves
Model: Mini Electric UPVC Ball Valves
Size Range: 1/2″ to 3/4″
Pressure Range: 0~1.0MPa
Material: UPVC, Stainless Steel 304/316 or Brass
What Is The 2 Way UPVC Electric Actuated Mini Ball Valve？
A 2-way UPVC electric actuated mini ball valve is a compact valve system designed for precise flow control in various industrial applications. The “2-way” designation indicates that the valve has two ports: an inlet and an outlet, allowing for either full flow or complete shut-off. The UPVC (unplasticized polyvinyl chloride) construction ensures durability and resistance to corrosion, making it suitable for use in a wide range of environments.
Data Sheet of Valve：
Body Material | Brass, ss304, ss316(optional) | Temp. of Media | 2°C to 90°C |
Valve Ball | UPVC | Certification | ISO 9001, CE, TUV, SGS |
Sealing Material | PTFE | Indicator | Yes |
Cable length | 0.5mm, 1.5mm(optional) | Manual override | NO |
Actuator material | Engineering Plastics | Ambient temperature | -15°C to 50°C |
Gasket | PTFE | Protection class | IP67 |
Line control | CR2-01,CR2-02,CR3-03,CR4-01,CR5-01,CR5-02, CR7-03, Cr7-04(Optional) | ||
2 Way UPVC Electric Actuated Mini Ball Valves
- All-copper gear design, high accuracy output torque, especially for mulchannel scaling system
- With self-cleaning function, effectively ensure the pipeline smooth
- Small size, compact structure, easy to operate, good sealing performance
- A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unittesting
- Leakage: Zero leakage, Return difference: ±2.5%
