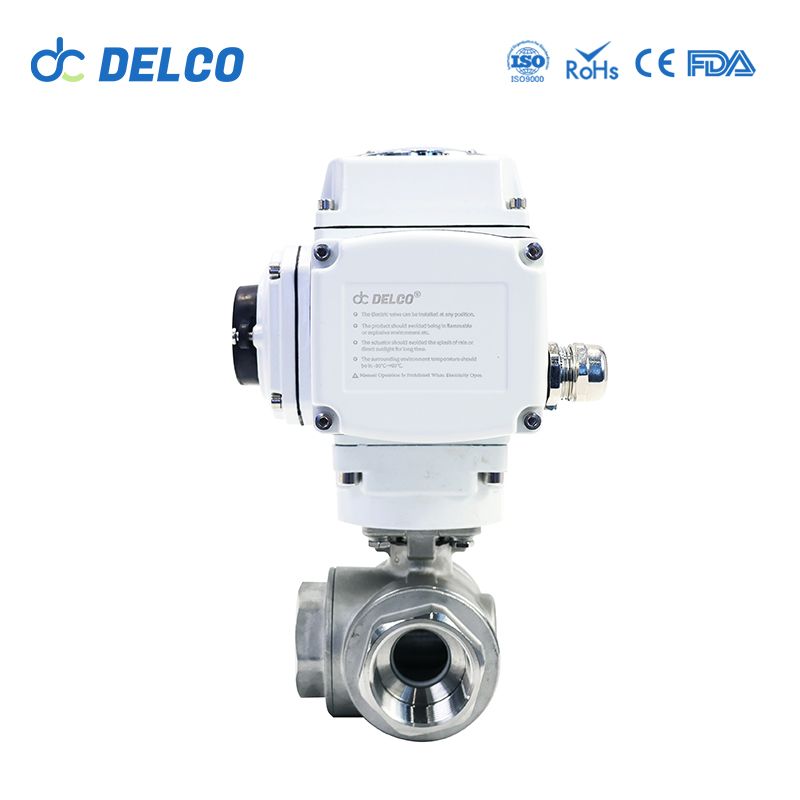

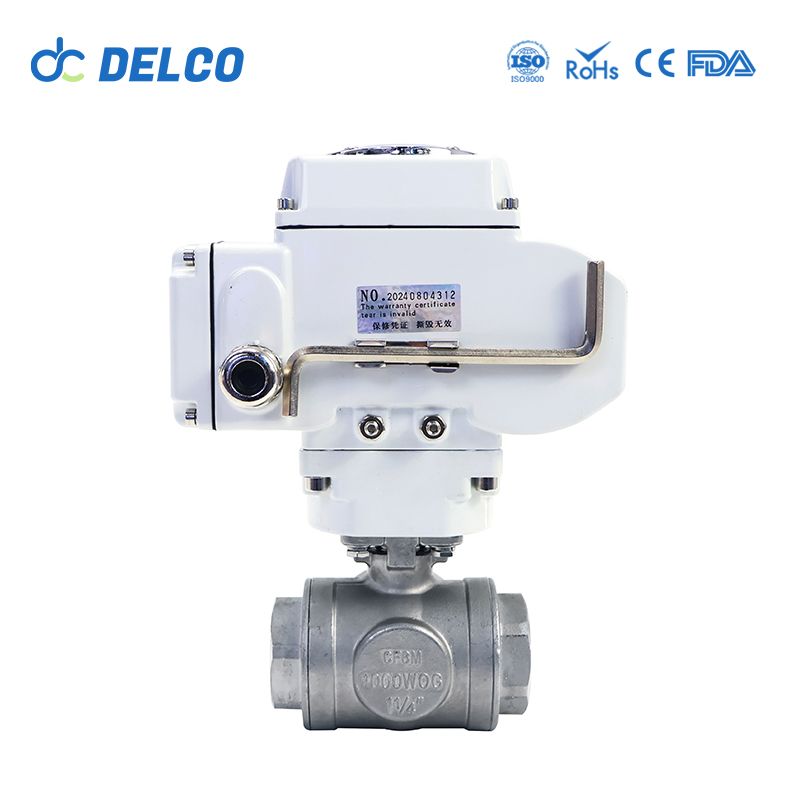

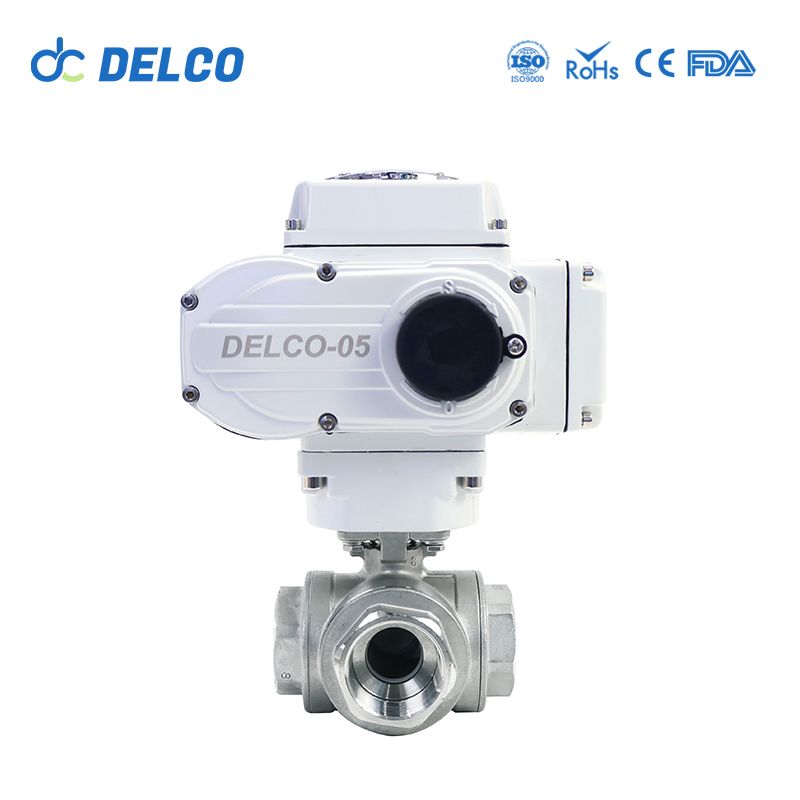

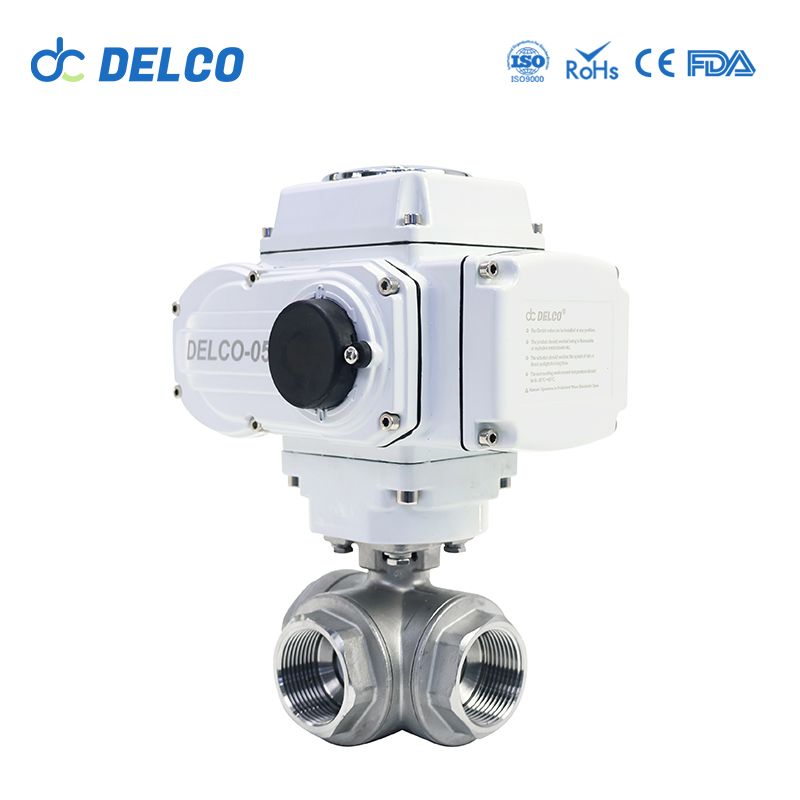

DELCO Motorized 3 Way 3 Inch Thread Electric Ball Valves-DK55-3T
Model: DK55-3T
Size Range: 1/4” to 3”
Pressure Range: 0 to 1.6MPa
Material: Stainless Steel 304/316
What Is 3 Way 3 Inch Motorized Electric Ball Valve？
3-way 3-inch motorized electric ball valves are advanced flow control devices used in industrial applications for directing the flow of fluids in three different directions. These valves feature a ball with a central bore, allowing for three ports or openings in the valve body. With an electric actuator, these valves offer automated operation, eliminating the need for manual intervention.
Data Sheet of Valve：
| Valve Body | Valve components | ||
| Size Range | DN08-DN80 | Sealing material | PTFE: -29℃~180℃ |
| PPL: -29℃~250℃ | |||
| Body Material | Stainless Steel | Core Material | Stainless Steel |
| End Connection | Threaded | Stem Material | Stainless Steel |
| Operating Pressure | 1.0MPa~1.6MPa | Applicable media | Control of water, Air, Gas, Oil, Liquid, Steam |
| Structure | 3 Way L-port/T-port | ||
DELCO 3 Way 3 Inch Motorized Electric Ball Valves
- Consistent product quality and reduction of defective rate
- Excellent control performance, even in the most demanding systems
- Easy handling and installation
- Excellent strength and toughness, easy installation
- It widely used in water treatment, environmental protection, automation industry, energy saving equipment
- Increased reliability and operational safety
- Built-in thermic and overload protection of the electro motor
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK-3T | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
