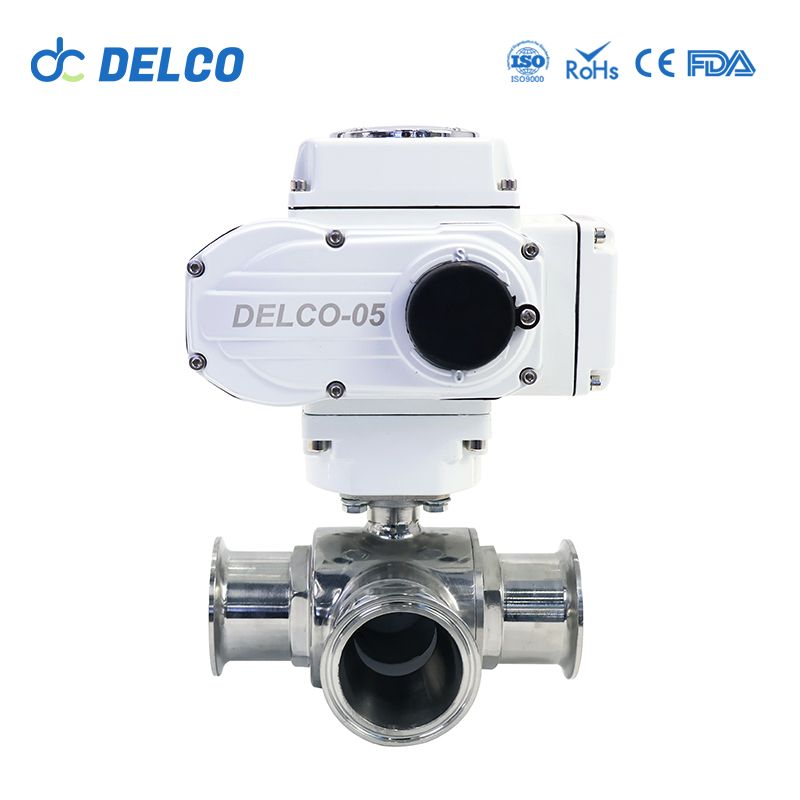

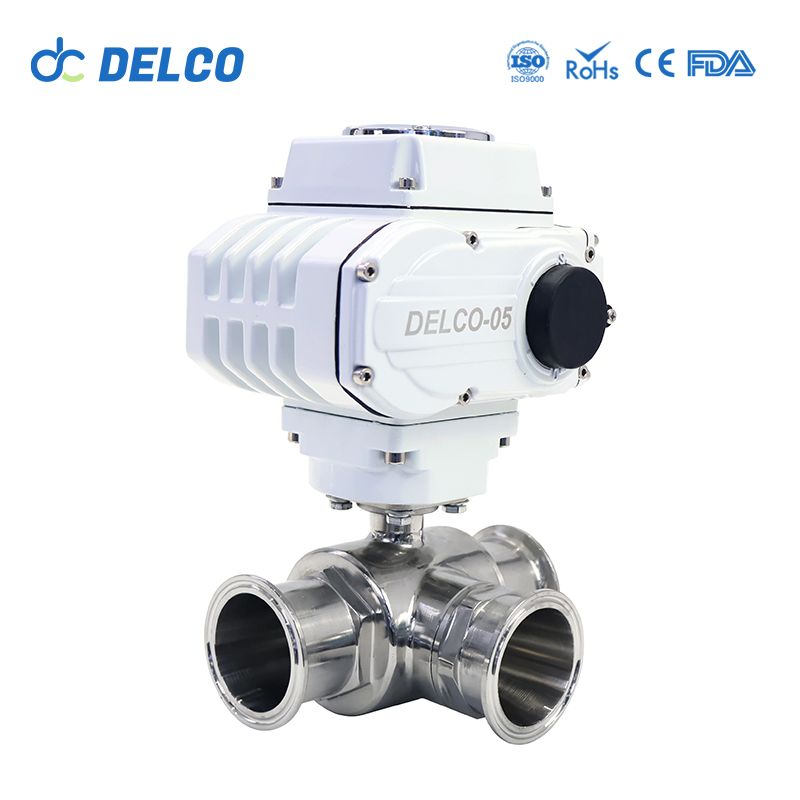

DELCO 3 Way Food Grade Stainless Steel Sanitary Electric Ball Valves-DK55-3WS
Model: DK55-3WS
Size Range: 1/2” to 4”
Pressure Range: 1.0MPa to 1.6MPa
Material: Stainless Steel 304/316
What Is 3 Way Food Grade Stainless Steel Sanitary Electric Ball Valve ?
A 3-way food-grade stainless steel sanitary electric ball valve represents a pinnacle in fluid control technology for industries requiring strict adherence to sanitary standards. Crafted from high-quality stainless steel, these valves offer exceptional resistance to corrosion and contamination, making them ideal for use in food and beverage processing, pharmaceutical manufacturing, and other hygiene-sensitive applications.
Data Sheet of Valve：
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Valve Body | Valve components | ||
| Nominal size | DN15-DN200 | Sealing material | PTFE: -20℃~180℃ |
| PPL: -29℃~250℃ | |||
| Body Material | Stainless Steel 304/316 | Disc Material | SS304, SS316, SS316L |
| End Connection | Clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | 3 Way L-port/T-port | Design standard | ISO, DIN, IDF, SMS, 3A |
DELCO Food Grade Sanitary Motorized Ball Valve
- Sanitary motorized valve torque range from 15 Nm to 4,000 Nm
- Modulating torque range from 15 Nm to 1,600 Nm
- Patented Valve-to-Actuator Mounting System
- Ultra-Compact Design
- Can Be Customized to Meet Specific Application Needs
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK55-3WS | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
