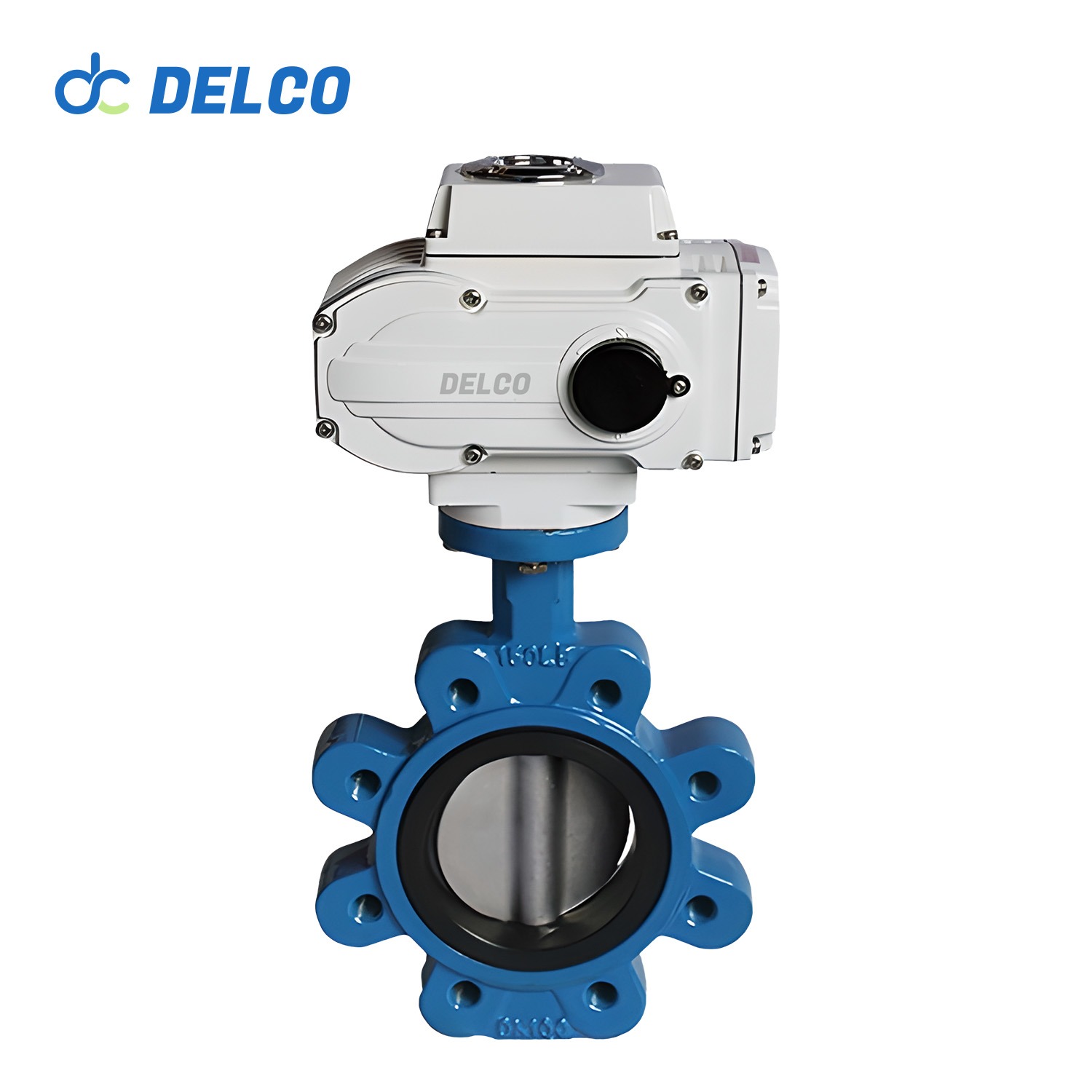

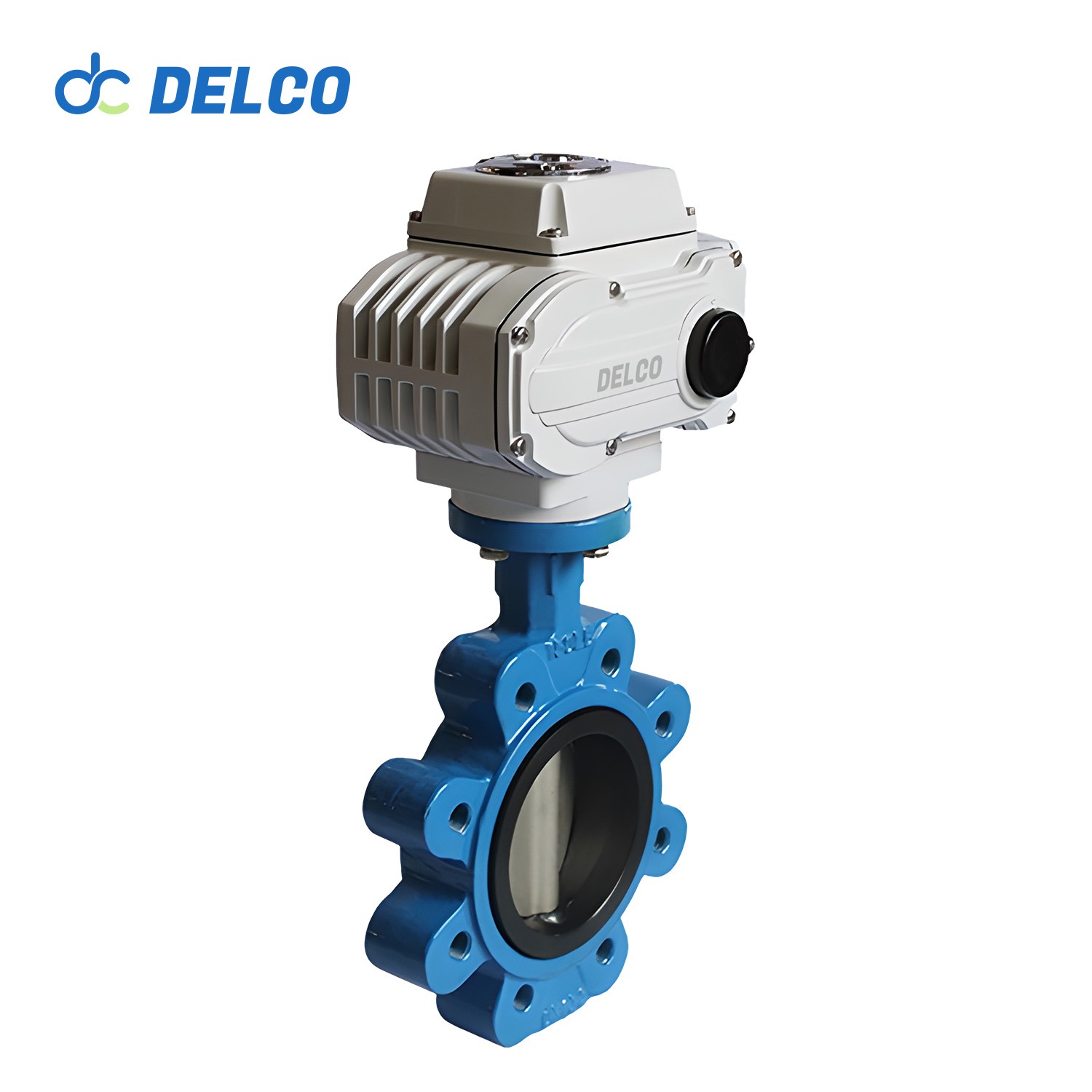

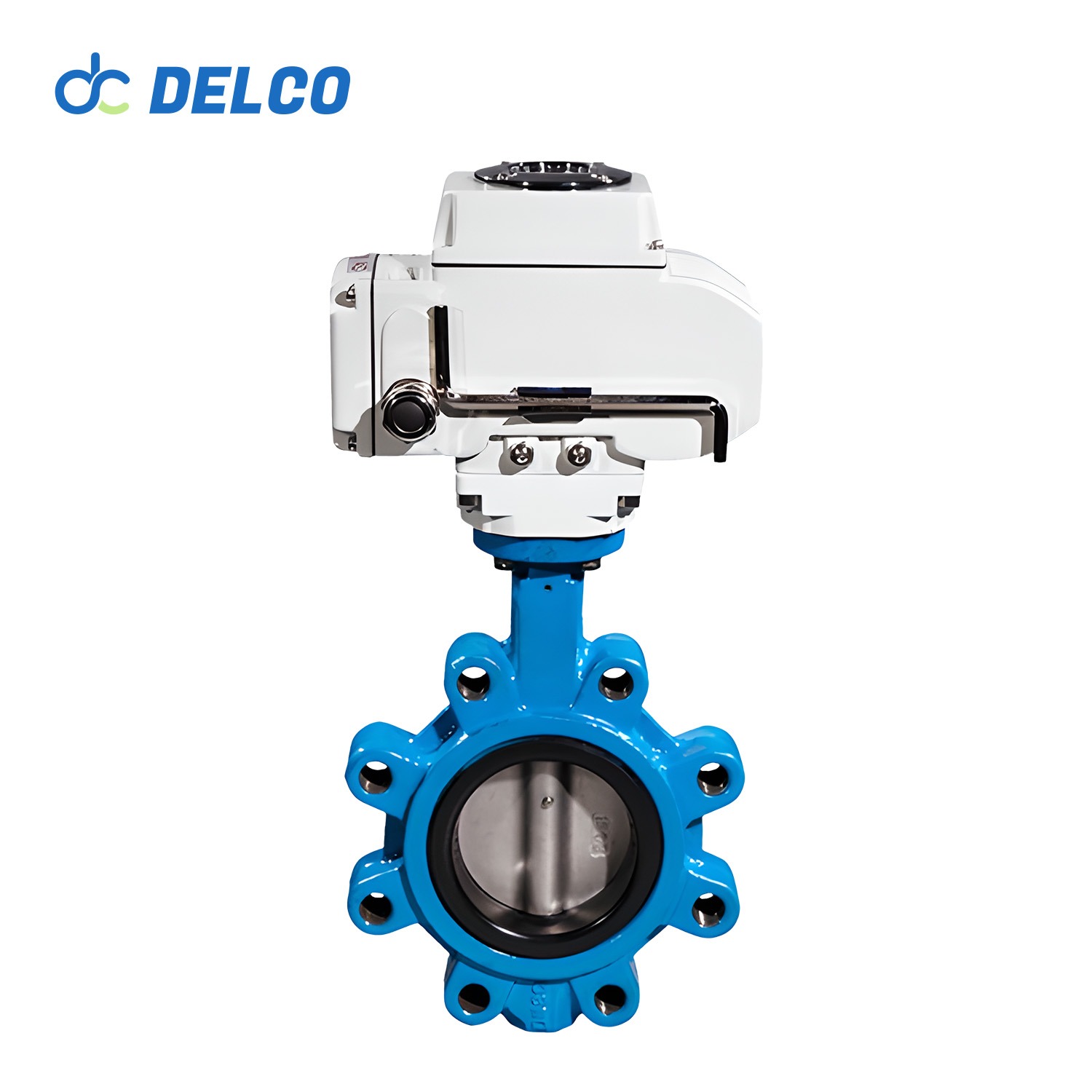

Electric cast iron lug type butterfly valve-DK56-LB
Electric Cast Iron Lug Type Butterfly Valves play a crucial role in optimizing process performance, enhancing productivity, and ensuring operational safety in modern industrial processes. Their ability to offer precise control, reliable operation, and remote control capability makes them indispensable in fluid handling systems across various industries.
In conclusion, the Electric Cast Iron Lug Type Butterfly Valve represents a cornerstone of fluid control technology, offering unmatched durability, reliability, and precision in industrial applications. Its innovative design, electric actuation, and numerous advantages make it an indispensable component in fluid handling systems, ensuring optimal performance and efficiency in diverse industrial processes
- Model: Lug Type Butterfly Valve
- Size Range: 2″ to 16″
- Pressure Range: 1.0MPa to 1.6MPa
- Material: Cast Steel, Cast Iron, Ductile Iron, Stainless Steel 304/316
Description
The Electric Cast Iron Lug Type Butterfly Valve features a robust cast iron body with lugs for easy installation and secure mounting. This construction ensures stability and durability even in harsh operating conditions. The valve’s butterfly disc, mounted on a central shaft, controls the flow of fluid within the pipeline. An electric actuator, typically mounted atop the valve, drives the disc’s rotation, allowing precise modulation of flow rates.
The Electric Cast Iron Lug Type Butterfly Valve is a cutting-edge solution in fluid control technology, providing precise and reliable regulation of flow in various industrial settings. Constructed from durable cast iron, these valves offer exceptional strength and resistance to corrosion, making them ideal for demanding environments. In this comprehensive product introduction, we will delve into the design, operation, advantages, applications, and significance of Electric Cast Iron Lug Type Butterfly Valves in modern industrial contexts.
Cast iron lug type butterfly valve technical Parameter
Normal Size Range | Core Materal | Body Material | Voltage | Voltage Tolerance |
2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″ | Stainless Steel 304/316/316L | Cast Iron | DC-12V, 24V; AC-24V, 110V, 220V, 380V | ±10% |
End Connection | Working Pressure | Suitable Media | Temperature Of Media | Structure |
Lugged | <16 bar (232 psi) | Water, Air, Oil, Gas, etc | -10 to 180℃ (14℉ to 356℉) | Midline structure A type |
ON/OFF Type | Regulation Type | Field Operation | Voltage optional | Protection Class |
Feedback: the active contact signal, passive contact signal, resistant, 4-20mA | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V | The field, remote control switch regulation and MODBUS, PROFIBUS field bus | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized | IP65; Explosion Proof Construption Are Available: EX d II BT4 |
Cast iron lug type butterfly valve Advantages:
Corrosion Resistance: Constructed from cast iron, these valves exhibit exceptional resistance to corrosion, making them suitable for applications involving corrosive fluids and harsh environments.
Precise Control: Electric Cast Iron Lug Type Butterfly Valves offer precise control over fluid flow rates, enabling accurate modulation and regulation of process parameters.
Reliable Operation: With electric actuation, these valves provide consistent and repeatable performance, reducing the risk of manual errors and ensuring reliable operation over extended periods.
Remote Control Capability: These valves can be remotely operated and integrated into automated control systems, allowing for seamless integration into modern industrial processes.
Cast iron lug type butterfly valve Applications:
The Electric Cast Iron Lug Type Butterfly Valve finds applications across various industries and processes where precise fluid control is essential. Some common applications include:
Water Distribution: These valves are used in water distribution networks to regulate the flow of water in municipal, commercial, and industrial settings, ensuring efficient water supply and distribution.
Wastewater Treatment: In wastewater treatment plants, Electric Cast Iron Lug Type Butterfly Valves control the flow of wastewater, chemicals, and sludges, facilitating effective treatment processes.
Chemical Processing: These valves are employed in chemical manufacturing plants to regulate the flow of corrosive chemicals, solvents, and abrasive slurries, ensuring safe and efficient production processes.
Power Generation: Used in power plants and utilities, these valves control the flow of water, steam, and cooling fluids, contributing to efficient energy generation and distribution.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK56-LB | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
