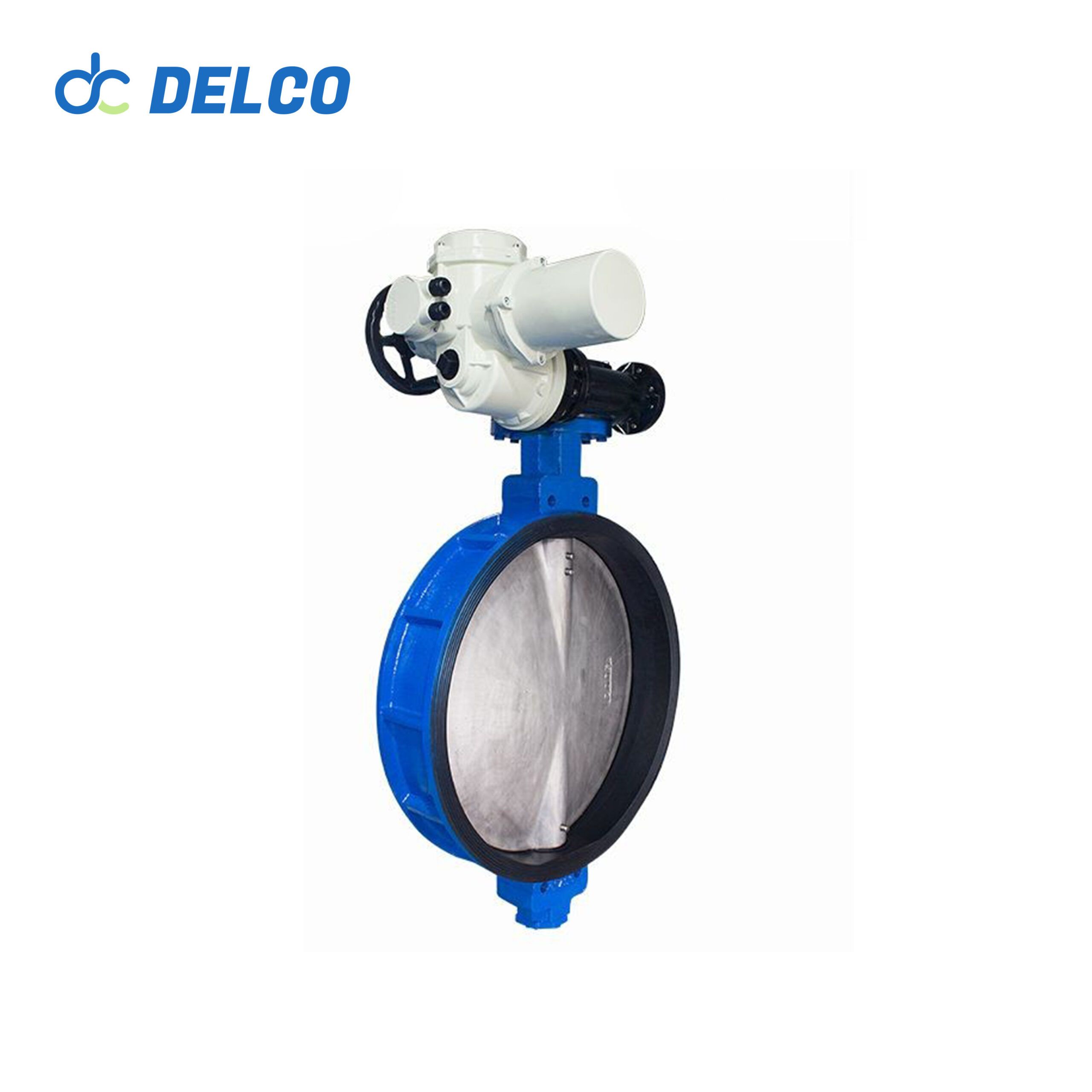

DELCO Valve Cast Iron Multi Turn Electric butterfly Valves
The multi-turn electric actuator for cast iron butterfly valves is a crucial component utilized for operating, closing, or adjusting valves. It acts as a pivotal actuating mechanism enabling remote, centralized, or self-control functionalities over valves. Renowned for its versatility, reliability, and advanced control system, this actuator boasts a compact design, lightweight construction, and ease of application and maintenance.
Designed to accommodate butterfly valves with linear motion mechanisms, the multi-turn electric actuator offers comprehensive functionality. Its reliable performance and advanced control capabilities make it indispensable across various industries where precise valve control is paramount for operational efficiency and safety.
Model: Multi Turn Electric butterfly valves
Size Range: 2” to 40”
Pressure Range: 1.6Mpa to 6.4Mpa
Material: Cast Iron
What Is Multi Turn Electric butterfly valve?
Multi-turn electric butterfly valves are sophisticated control valves designed to regulate fluid flow within industrial piping systems with precision. Unlike traditional butterfly valves that operate with a quarter-turn motion, these valves employ multiple rotations for opening and closing, providing finer control over flow rates. They feature a disc positioned perpendicularly to the flow when closed and parallel when open, allowing for precise modulation of fluid flow. The integration of an electric actuator enables remote or automated control, making them ideal for applications requiring accurate flow control, such as water treatment plants and chemical processing facilities.
In industries where precise flow control is paramount, multi-turn electric butterfly valves offer a reliable solution. Their electric actuation allows for seamless integration into automated systems, enhancing operational efficiency and facilitating remote monitoring and control. With their ability to provide precise flow modulation and maintain consistent process parameters, these valves play a crucial role in ensuring optimal performance and safety across a wide range of industrial applications.
Technical Parameters of Valve Actuator
Power supply | general: single-phase 220v, three-phase 380v(50Hz), long distance DC24V |
special: single-phase 110v, three-phase 415v, 660v(50Hz, 60Hz) | |
Working environment | Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized) |
Relative humidity: 95% (at 25 ° C) | |
The outdoor type can be used in the places without inflammable / explosive and corrosive medium | |
d I | applicable to non-excavating workinarea for coal mine |
d I BT4 | applicable to the environment with IIA , IIB grade TL-T4explosive gas mixture , can be used in the factory |
Protection level | Outdoor type and explosion-proof type are IP55 (IP65, IP67) |
Working time | short time 10 minutes (15-60 minutes for special order) |
Advantages of butterfly valve:
- It is convenient and quick to open and close, labor saving, low fluid resistance, and can be operated frequently.
- Simple structure, small size and light weight.
- Mud can be transported, with the least accumulation of liquid at the pipe mouth.
- Under low pressure, good sealing can be achieved.
- Good adjustment performance.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Valve Body | Valve components | ||
Nominal size | DN50-DN1000 | Sealing material | PTFE, EPDM |
Body Material | Cast Iron | Disc Material | Stainless Steel |
End Connection | Flange Ends & Butt welding Ends | Stem Material | Carbon iron |
Operating Pressure | 1.6Mpa to 6.4Mpa |
Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
