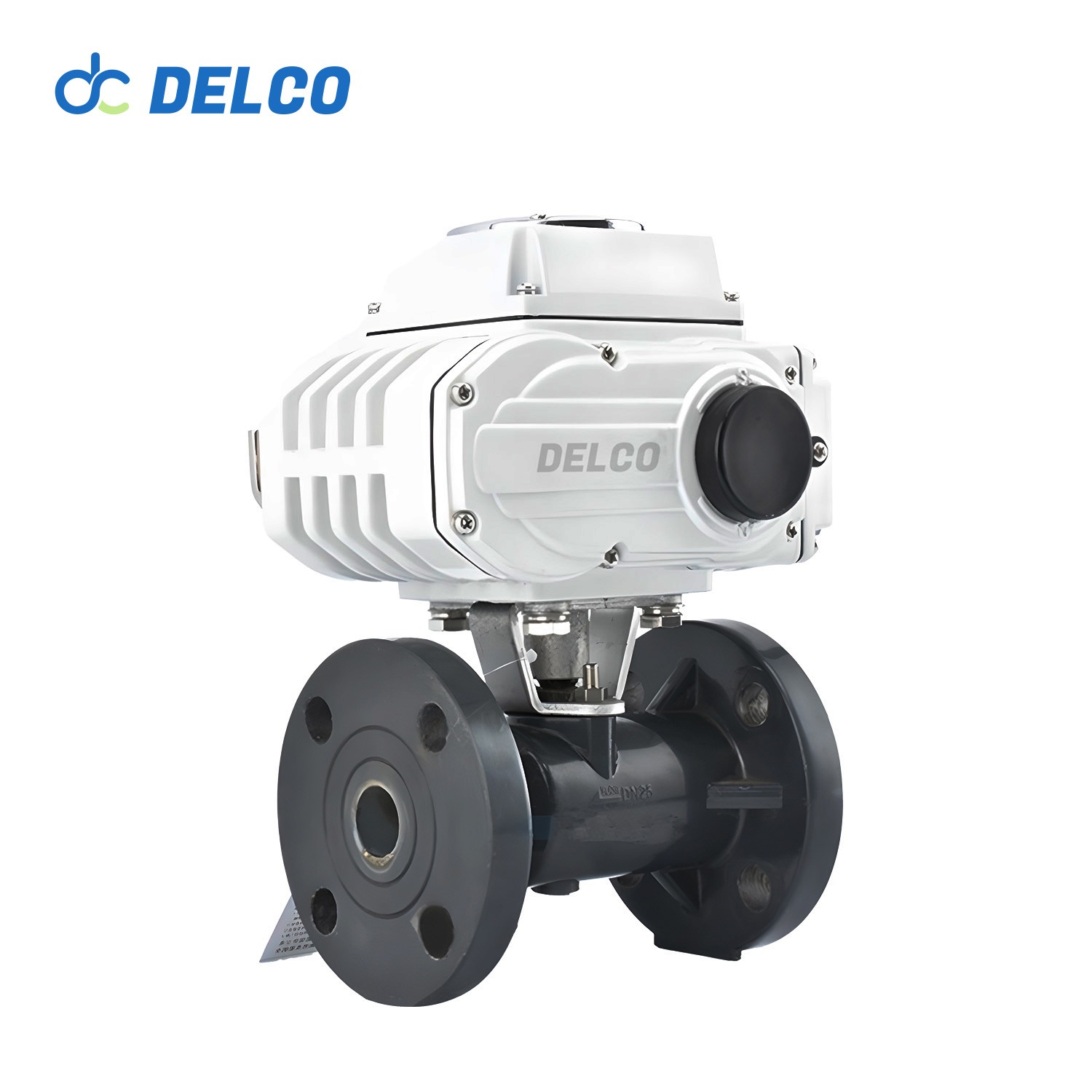

DELCO 2 Way Plastic PVC Electric Actuated Flange Ball Valves-DK55-PVF
Our True Union PVC, UPVC, and CPVC electric actuated ball valves are versatile solutions used in water treatment, paper & pulp, and wastewater treatment industries. They are available in 2-way and 3-way configurations with no minimum order quantity, offering flexibility for various applications.
Featuring quick and thread connection options, our valves ensure easy installation. They are cost-effective, provide high flows, and are corrosion-resistant, ensuring durability in harsh environments. Additionally, they meet food safety standards, making them suitable for food processing applications.
Choose from three actuator options: On/Off, Modulating, and Intelligent types, based on your control needs. Widely used in water treatment, irrigation, and air handling industries, our valves meet diverse fluid control requirements. With over 20 years of experience, we offer a comprehensive range of valves to suit your specific needs.
Model: DK55-PVF
Size Range: 1/2″-4″
Pressure Range: 0~1.6Mpa
Material: Plastic,PVC
What Is 2 Way Plastic PVC Electric Actuated Flange Ball Valve?
A 2-way plastic PVC electric ball valve is a specialized fluid control device crafted for precise flow diversion or mixing needs. Made from durable PVC, these valves boast excellent chemical resistance, ideal for corrosive environments. The “2-way” configuration facilitates versatile fluid routing, enabling tasks like diverting flow between two outlets or mixing fluids from separate sources.
With an electric actuator, these valves allow for remote and automated control, ensuring precise adjustment of flow rates without manual intervention. This capability proves invaluable in industrial processes requiring consistent and accurate flow control. In summary, 2-way plastic PVC electric ball valves offer a dependable and cost-effective solution for various fluid control applications, from water treatment to chemical processing and irrigation systems.
Data Sheet of Valve:
Model | DK55-PVF | Voltage | 24V/12V DC; 110V/220V AC |
MOQ | 1 Set | Actuator Type | On Off/ Modulating Control |
Applicable Standard | GB, ANSI, JIS, DIN | No. of Ways | 2 Way |
Port Size | DN08~DN100 | End Connection | True union |
Operating Pressure | 1000 WOG | Media | Water, Air, Gas, Acid base crossoive media |
Body Material | Plastic PVC | Temp. of Media | -10°C to 180°C |
Structure | Ball | Certification | ISO 9001, CE, TUV, SGS |
Sealing Material | EPDM | Warranty | 1 Year (12 Months) |
ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |

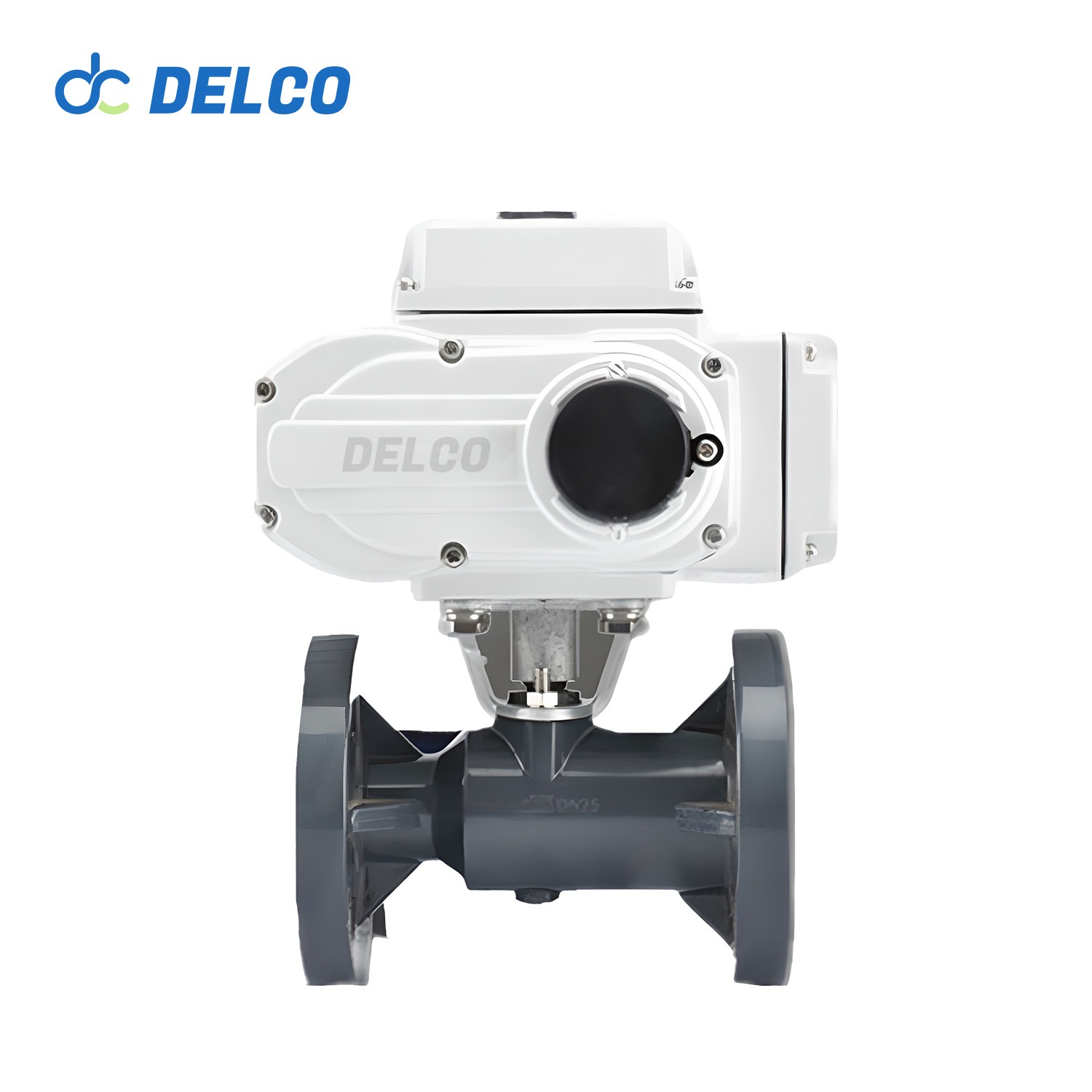

DELCO 2 Way Plastic PVC Electric Actuated Flange Ball Valves
- ISO5211 standard direct mounting actuator; 20 Second, 90° Cycle Time
- Programmatic control with computers; On-site control or controlled from a distance
- Cheaper and cost-efficient actuator valve for your business
- Allow pressure differential: Less than nominal pressure 1.6MPa
- Leakage: Zero leakage, Return difference: ±2.5%
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
