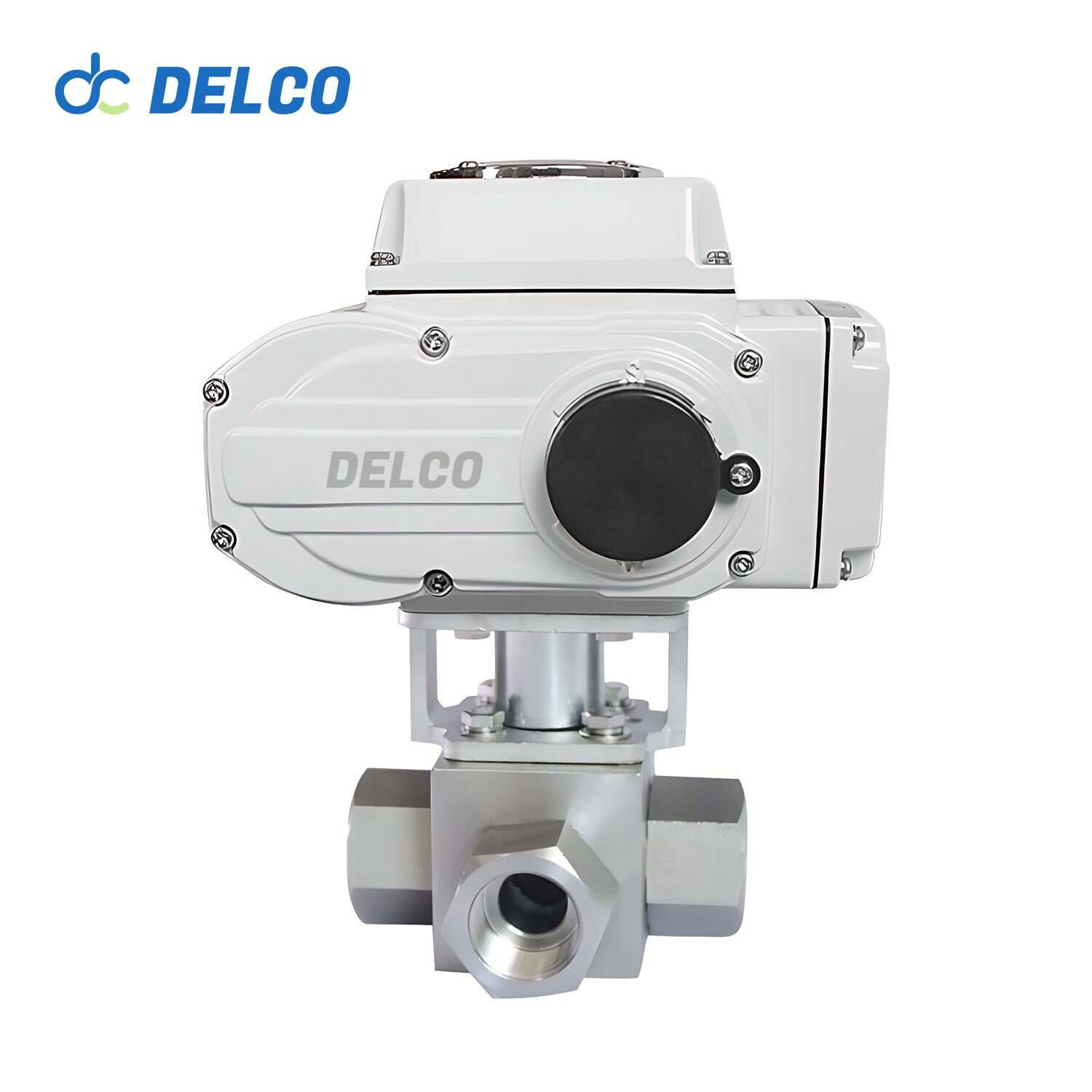

DELCO 3 Way High Pressure Motorized Ball Valves-DK55-HG-T
The DELCO High Pressure Motorized Ball Valves (HPMV) is a specialized three-way valve with two common ports and one controllable port. This design offers versatility in fluid control applications, allowing the valve to be utilized across various fluid systems.
Designed for extreme pressure environments, the super high-pressure electric ball valve is suitable for use with ultra-high-pressure liquids, gases, or mixtures. It finds applications in industries such as ultrahigh-pressure testing, pneumatic and hydraulic pumping, and deep-sea exploration. With a pressure range spanning from 10 to 400 bar, this valve ensures reliable performance under demanding conditions, providing efficient fluid control for various industrial applications.
Model: DK55-HG-T
Size Range: 1/2” to 2”
Pressure Range: 10MPa to 40MPa
Material: Stainless Steel 304/316
What Is 3 Way High Pressure Motorized Ball Valve?
A 3-way high-pressure motorized ball valve is a specialized valve configuration designed for applications requiring precise control over fluid flow in high-pressure environments. Unlike traditional 2-way ball valves that offer only two flow paths (open or closed), 3-way valves provide an additional port to divert or mix the flow of fluids.
In high-pressure systems, these valves play a crucial role in directing fluid flow to different pathways or controlling the mixing of fluids. The motorized aspect refers to the valve’s actuation method, where an electric motor is used to automate the opening and closing of the valve. This automation allows for remote operation and precise control over fluid flow rates, pressures, and directions. Overall, 3-way high-pressure motorized ball valves are essential components in industrial processes requiring efficient fluid control under elevated pressure conditions.
Data Sheet of Valve:
ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
Valve Body | Valve components | ||
Nominal size | DN08-DN50 | Sealing material | PTFE: -20℃~180℃ |
PPL: -29℃~250℃ | |||
Body Material | Stainless Steel 304/316 | Disc Material | SS304, SS316, SS316L |
End Connection | Thread | Stem Material | Stainless Steel |
Operating Pressure | 10MPa to 40MPa | Applicable media | Water, Air, Gas, Steam, Oil, Liquid |
Structure | Floating ball core | Design standard | ISO, DIN, IDF, SMS, 3A |
DELCO 3 Way High Pressure Motorized Ball Valves
- Actuator Type: ON OFF Type, Regulating Type, and Intelligent Type
- Working Pressure Range: PN100~PN400
- Suitable Medium: Water, Oil, Air, Gas, etc
- Compact Design, Eco-friendly, Easy Installation, etc
- Voltage optional: 12V, 24V DC; 110V, 220V, 380V AC
- Widely used in HVAC, irrigation, water treatment, etc.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
