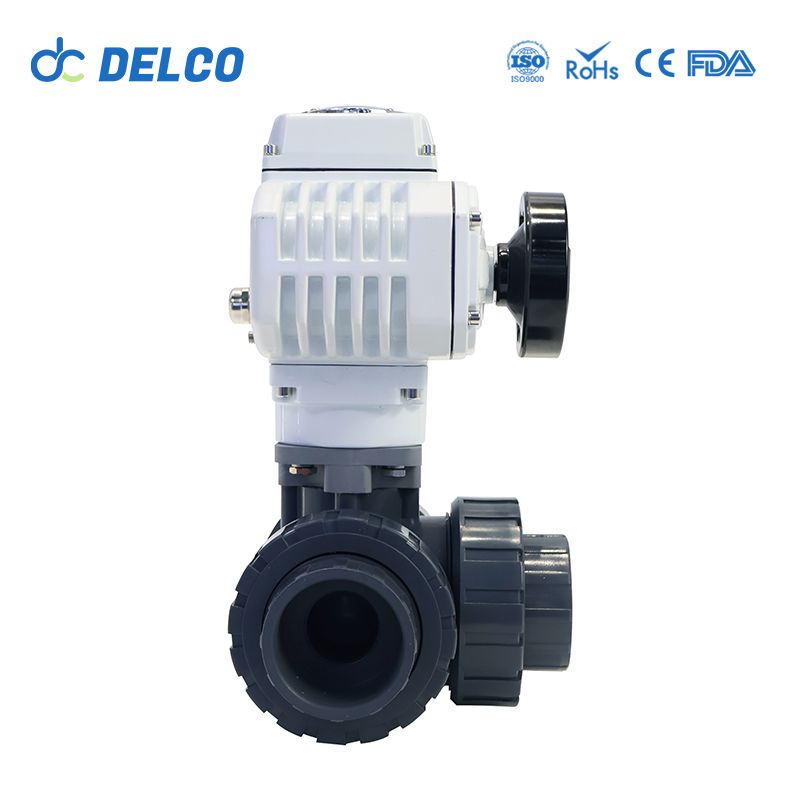

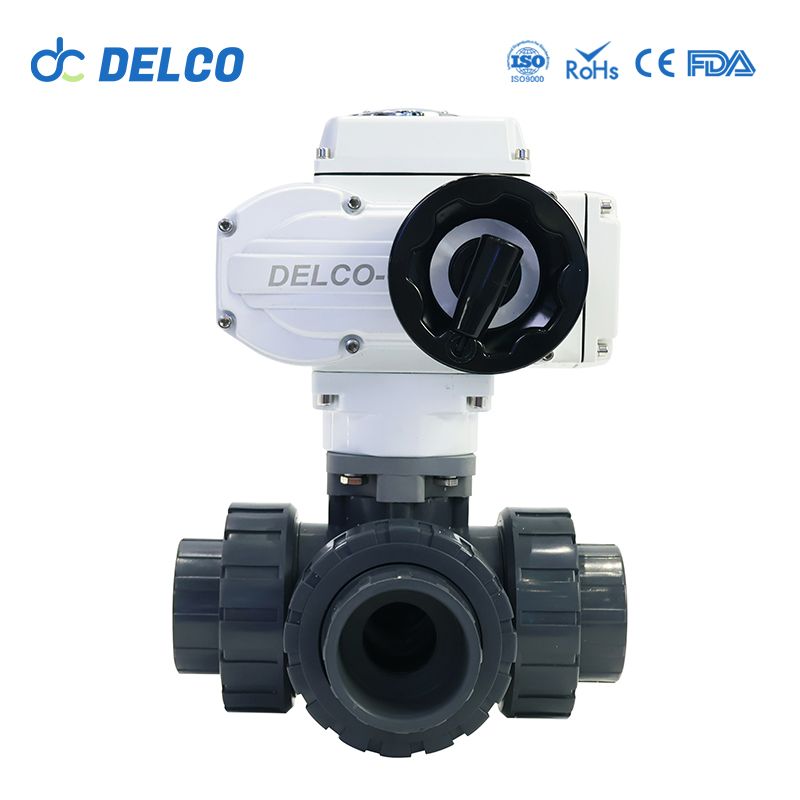

DELCO 3 Way Plastic PVC Electric Ball Valves-DK55-3PL
The DELCO DK55-3PL electric true union PVC ball valve offers versatile functionality with options for both 2-way and 3-way port configurations, making it adaptable to various industrial needs. It features standard on/off control, providing straightforward operation for users. Additionally, the valve can be equipped with either 4-20mA or 0-10VDC modulating control, allowing for precise flow regulation as required.
Constructed from durable 304 or 316 stainless steel, the valve ensures reliability and longevity even in demanding environments. With a standard voltage of 220VAC and a minimum 1/2 inch union connection, it’s designed for compatibility with common industrial setups. The default EPDM seat further enhances its versatility and suitability for different applications.
Model: DK55-3PL
Size Range: 1/2″ to 2″
Pressure Range: 1 to 1.6MPa
Material: PVC, UPVC, CPVC
What Is 3 Way Plastic PVC Electric Ball Valve?
A 3-way plastic PVC electric ball valve is a specialized fluid control device designed for applications where precise flow diversion or mixing is required. Constructed from durable PVC (polyvinyl chloride), these valves offer excellent chemical resistance, making them suitable for use in corrosive environments. The “3-way” configuration means the valve has three ports, allowing for versatile fluid routing options such as diverting flow between two different outlets or mixing fluids from two separate sources.
Equipped with an electric actuator, these valves enable remote and automated control, providing precise adjustment of flow rates and direction without manual intervention. This feature is particularly beneficial in industrial processes where consistent and accurate flow control is essential. Overall, 3-way plastic PVC electric ball valves offer a reliable and cost-effective solution for various fluid control applications, including water treatment, chemical processing, and irrigation systems.
Data Sheet of Valve:
Port size range | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″ | Orifice(mm) | 15, 20, 25, 32, 40, 50, 65, 80, 100 |
End Connection | True Union, Double Union Thread | Structure | T Port / L Port |
Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz | Voltage Tolerance | ±10% |
Suitable Media | Corrosive media, Water, Air, etc | Temperature Of Media | -5~80℃ (23℉~176℉) |
Working Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Actuator Type | ON OFF Type, Regulating Type and Intelligent Type |
ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
Protection Class | IP65 |

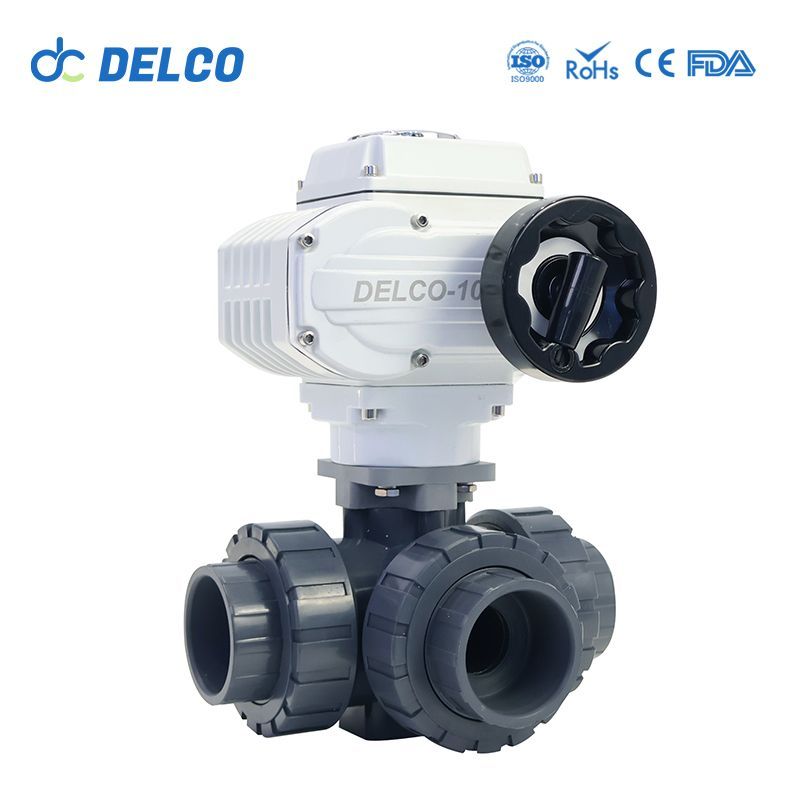

DELCO 3 Way Plastic PVC Electric Ball Valves
- Torque range from 50Nm to 4000Nm.
- Valve type : 2-Ways & 3-Ways Union Ball Valve (T Type or L Type)
- Aluminium alloy die-casting shell, exquisite and smooth, and can reduce electromagnetic interference.
- Intelligent CNC: Intelligent countrol template integrated in the body of electric actuator, digital setting, high precision, one machine mutti-funcitonal
- Small backlash: The integrated structure avoids the clearance of key connection and has high transmission accuracy.
- Widely used in various industrial applications, such as water treatment, irrigation, etc.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK55-3Pl | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
