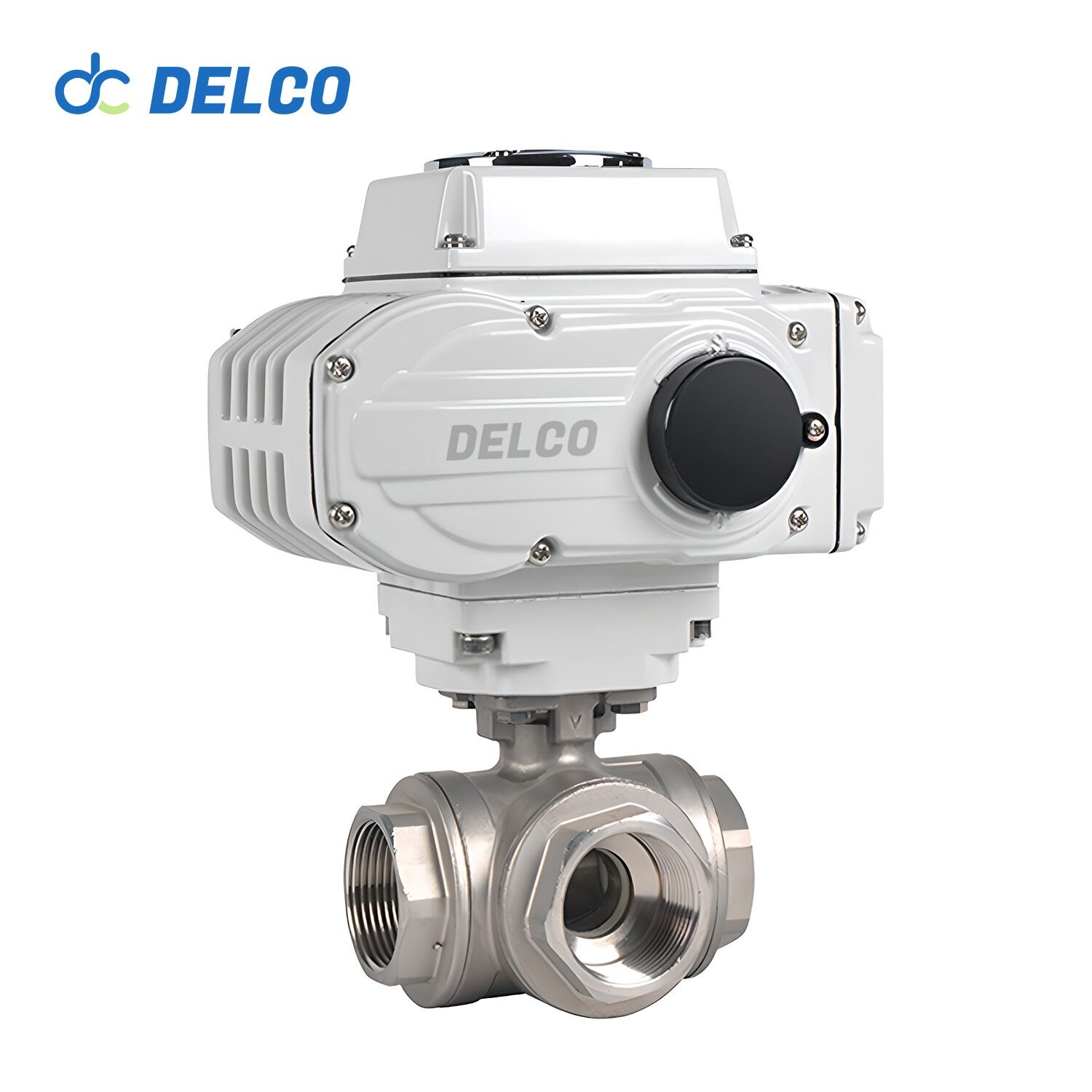

DELCO Motorized 4 Way 2 Inch Thread Electric Ball Valves-DK55-4T
Model: DK55-4T
Size Range: 1/2” to 2”
Pressure Range: 0 to 1.6MPa
Material: Stainless Steel 304/316
What Is 4 Way Motorized Electric Ball Valve？
4-way motorized electric ball valves are sophisticated flow control devices designed to manage the flow of fluids in four different directions. These valves feature a ball with multiple ports or openings in the valve body, allowing for versatile fluid flow configurations. With the inclusion of a motorized electric actuator, these valves offer automated operation, eliminating the need for manual adjustment.
Data Sheet of Valve：
| Valve Body | Valve components | ||
| Size Range | D15-DN50 | Sealing material | PTFE: -29℃~180℃ |
| PPL: -29℃~250℃ | |||
| Body Material | Stainless Steel 304/316 | Core Material | Stainless Steel |
| End Connection | Threaded | Stem Material | Stainless Steel |
| Operating Pressure | 1.0MPa~1.6MPa | Applicable media | Control of water, Air, Gas, Oil, Liquid, Steam |
| Structure | 4 Way L-port/T-port | ||
DELCO 4 Way 2 Inch Motorized Electric Ball Valves
- Consistent product quality and reduction of defective rate
- Excellent control performance, even in the most demanding systems
- Easy handling and installation
- Excellent strength and toughness, easy installation
- It widely used in water treatment, environmental protection, automation industry, energy saving equipment
- Increased reliability and operational safety
- Built-in thermic and overload protection of the electro motor
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | Motorized | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
