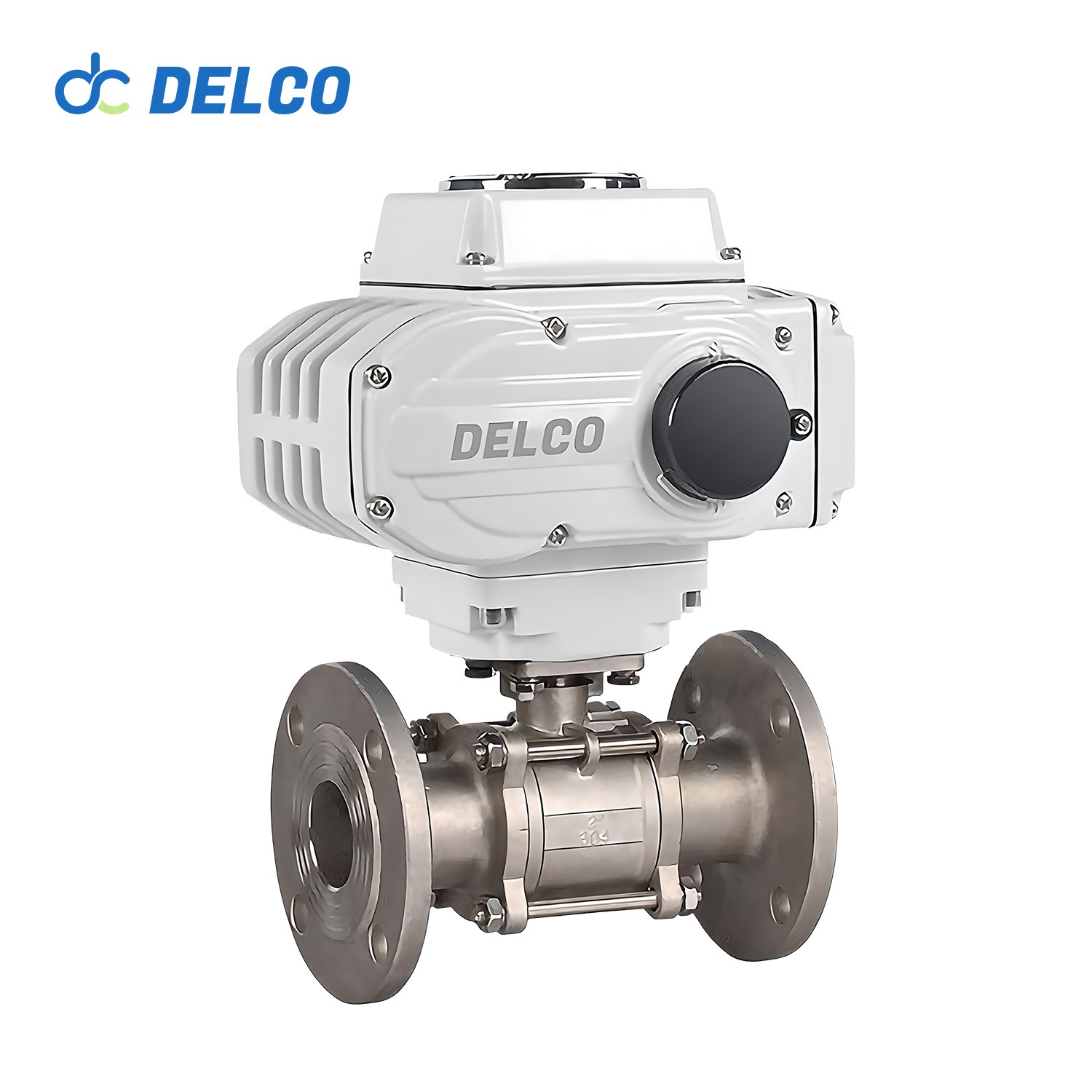

DELCO Electric 2 Way Flange Ball Valves With Actuator-DK55-3PF

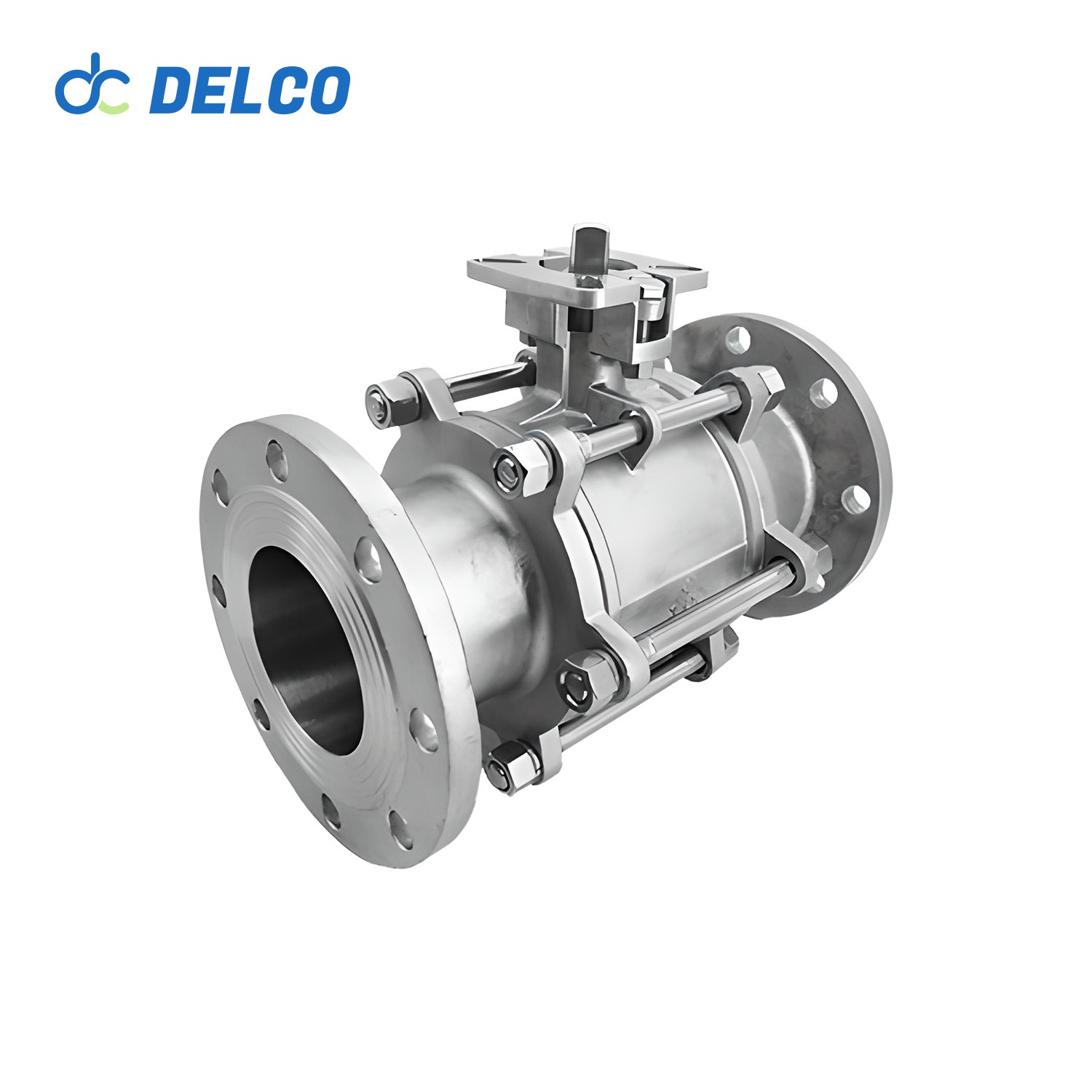

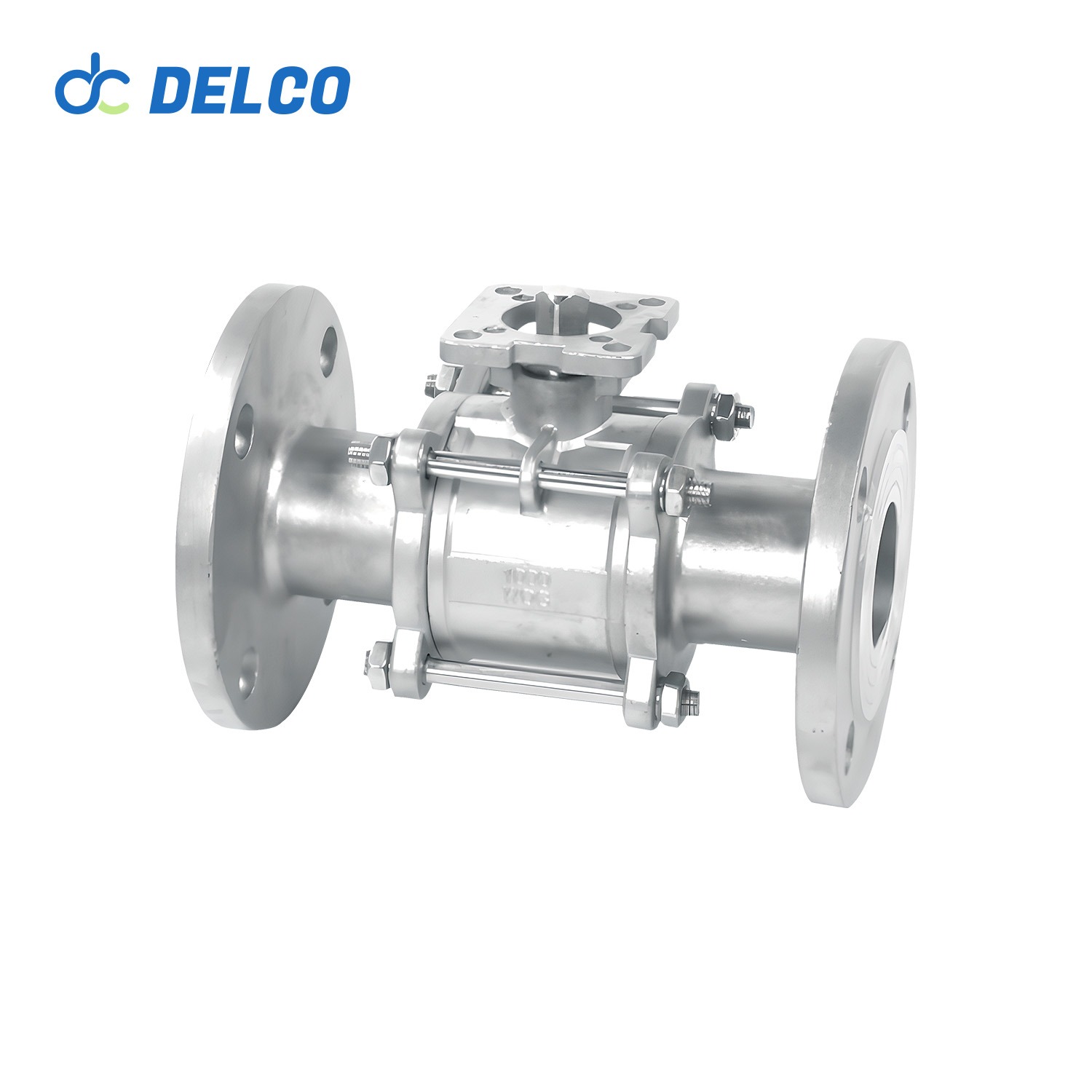

Introducing the DELCO DK55-3PF electric flange ball valve: a reliable 2-way valve with standard on/off control and optional 4-20mA or 0-10VDC modulating control. Constructed from durable 304 or 316 stainless steel, it can withstand higher pressures and temperatures. With a minimum 1/2 inch flanged connection and default PTFE seat, it’s resistant to almost all fluids.
As an electric ball valve manufacturer, DELCO offers a range of valves including 2 pc 2-way, 3-way, and 4-way options with various connection types. We also provide butterfly valves, pneumatic actuated valves, and solenoid valves. Contact us for a quote today!
Model: DK55-3PF
Size Range: 1/2″ to 4″
Pressure Range: 1.6 to 6.4 MPa
Material: WCB, Stainless Steel 304/316
What Is Electric 2 Way Flange Ball Valves With Actuator?
Electric 2-way flange ball valves with actuator are advanced flow control devices used in industrial applications for regulating the flow of fluids. These valves consist of a ball with a hole through the center, which acts as the flow control element. The ball rotates within the valve body, allowing or blocking the flow of fluid depending on its position.
Equipped with an electric actuator, these valves offer automated operation, eliminating the need for manual intervention. The actuator controls the movement of the ball, opening or closing the valve in response to signals from a control system. This automation enhances efficiency and accuracy in fluid flow management, making electric 2-way flange ball valves with actuators ideal for various industrial processes.
Data Sheet of Valve:
Size Range | DN15-DN100 | End Connection | Flange |
Body Material | Stainless Steel 304/316 | Working Pressure | 1.6~6.4 MPa |
Temperature Of Media | -10 to 180℃ (-22℉to 356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
Structure | Straight Through Flow Path | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
Actuator Type | ON OFF Type, Modulating Type, Intelligent Type | Voltage Tolerance | ±10% |
DELCO 2 Way Electric Actuated Stainless Steel Flange Ball Valves
- Torque Range from 50Nm to 4000Nm.
- Valve type : 2-Ways & 3-Ways & 4 Way Flange Ball Valve (T Type and L Type)
- Flange Standard: ANSI, JIS, DIN, GB are available.
- TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
- Blow-out Proof Stem Pressure Balance Hole in Ball Slot
- Widely used in chemical industry, paper & pulp, water treatment, etc.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK55-3PF | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
