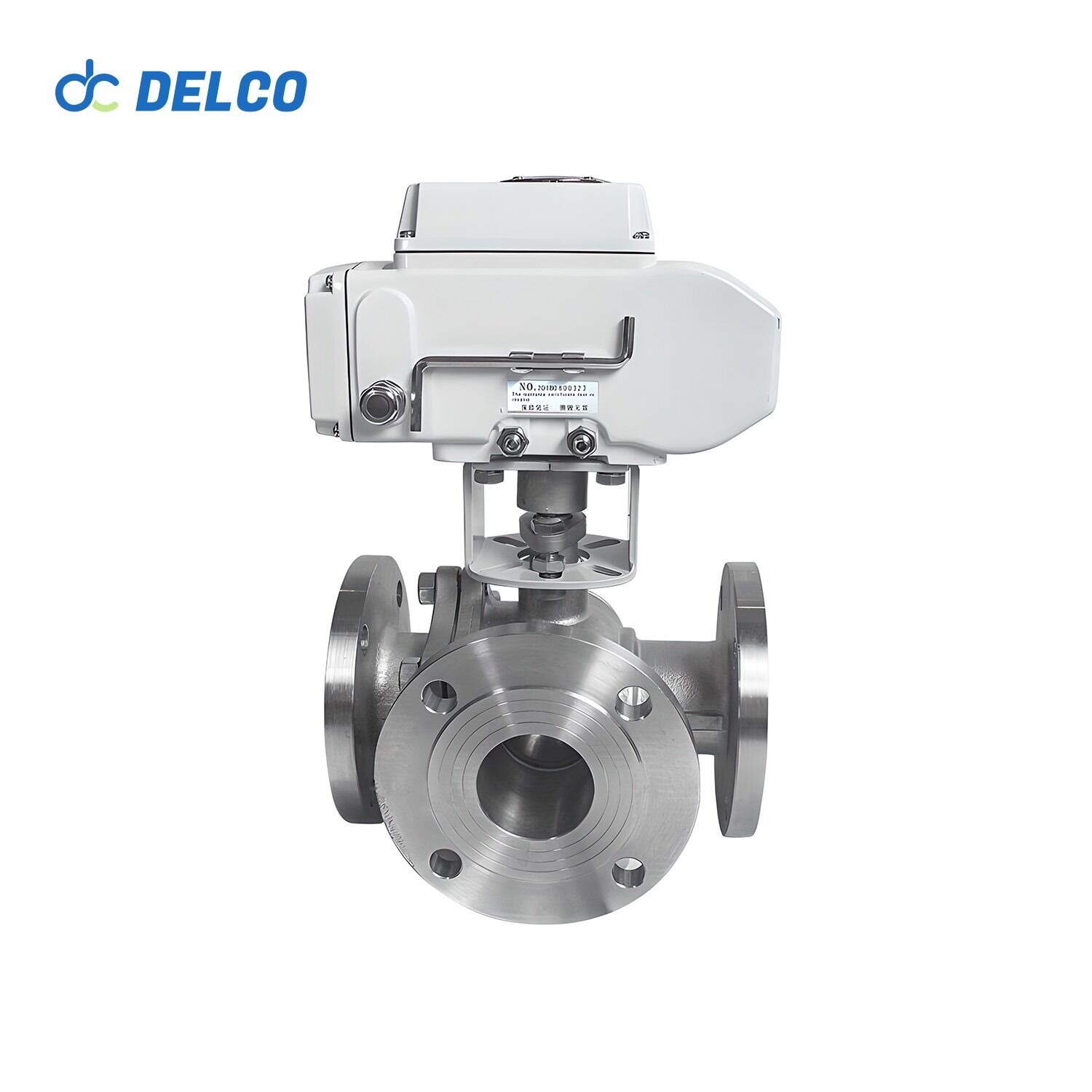

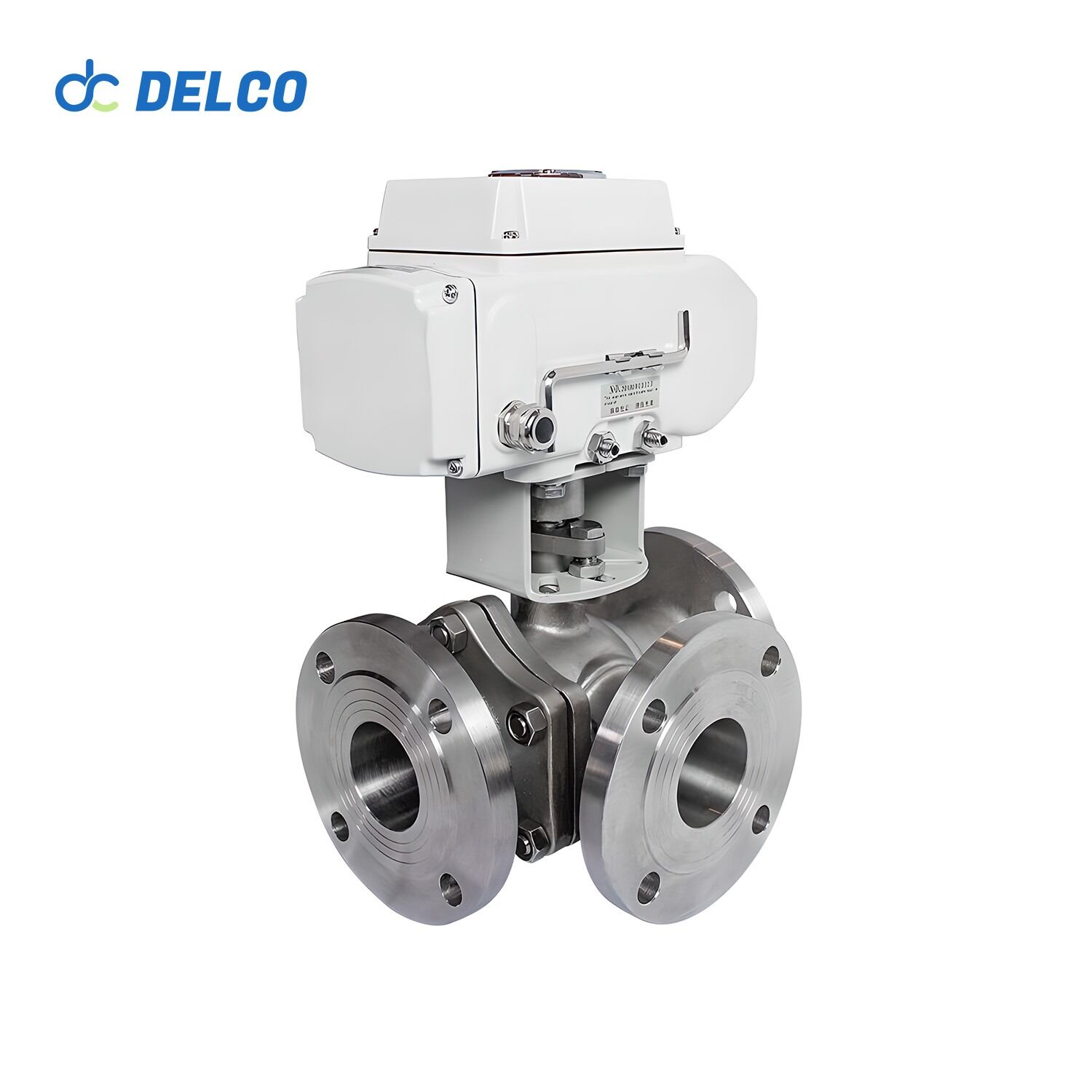

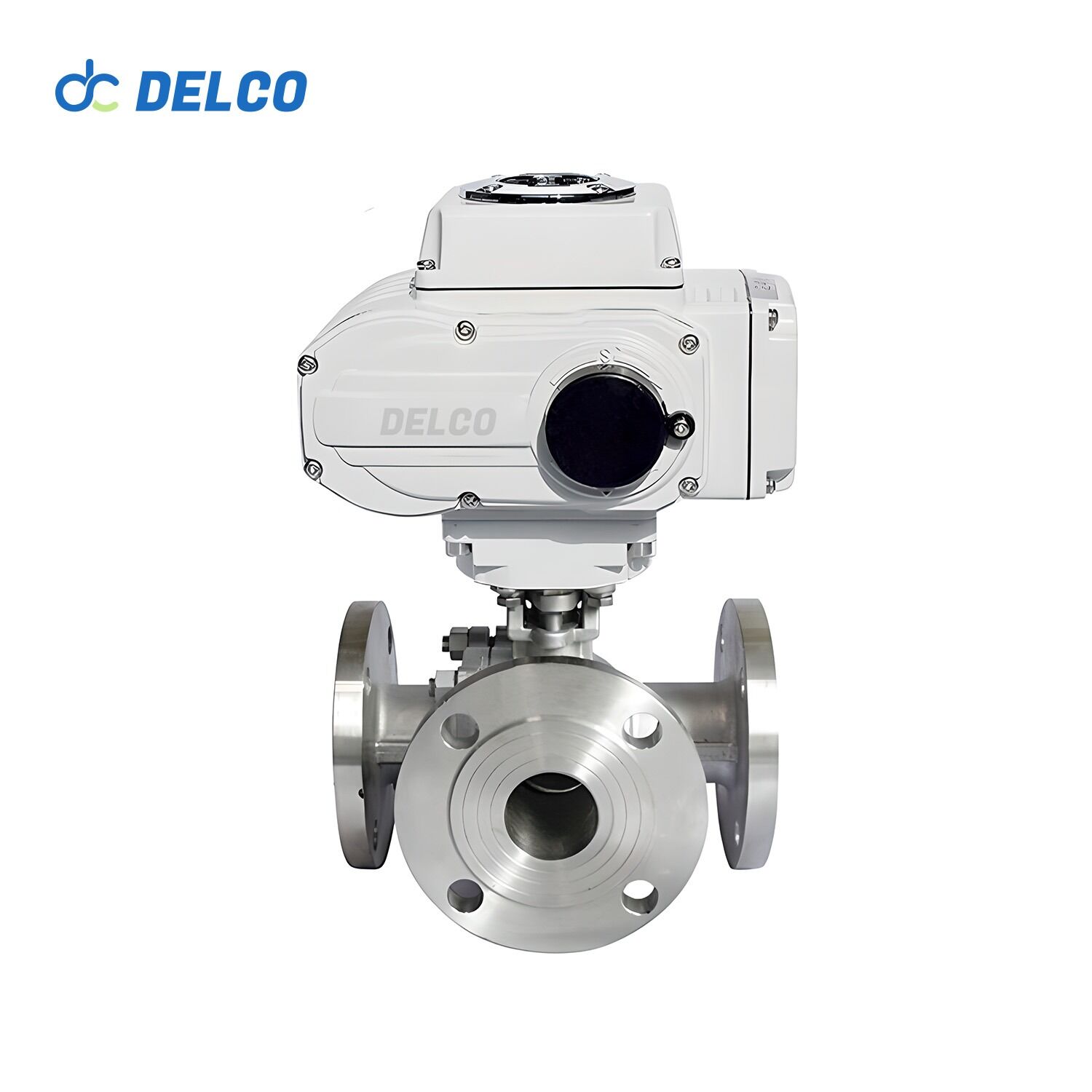

DELCO Flange 3 Way Motorized Ball Valves-DK55-TF
The primary function of the 3-way flange motor ball valve is to facilitate the interruption or connection of fluid flow within pipelines. Additionally, it enables precise fluid regulation and control through the implementation of a quarter-turn electric actuator. This electric actuator is designed with a manual override feature for added flexibility and convenience in operation. The valve accommodates both T-port and L-port configurations, allowing for versatile medium diversion applications.
With a torque range spanning from 50Nm (442 in-lb) to 4000Nm (35398 in-lb), this valve ensures reliable performance across various operating conditions. Moreover, it offers flexibility in installation options, including 2-way, 3-way, and 4-way configurations, as well as compatibility with different connection types such as threaded, tri-clamp, PVC double union, and welded connections. This versatility makes the valve suitable for a wide range of industrial applications, providing efficient fluid control solutions tailored to specific needs and requirements.
Model: DK55-TF
Size Range: 1/4” to 8”
Pressure Range: 1.0MPa to 6.4MPa
Material: Stainless Steel 304/316
What Is Flange 3 Way Motorized Ball Valve?
A Flange 3 Way Motorized Ball Valve is a sophisticated fluid control device commonly used in industrial applications. Its design features flange connections for secure attachment to pipelines, ensuring reliability under high-pressure conditions. The valve offers versatile fluid routing capabilities with three ports, enabling tasks such as diverting or mixing fluids.
The valve’s motorized operation, facilitated by an electric actuator, allows for remote and automated control, enhancing precision and efficiency in fluid regulation. Overall, this valve provides a reliable and flexible solution for various industrial fluid control needs.
Data Sheet of Valve:
ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |

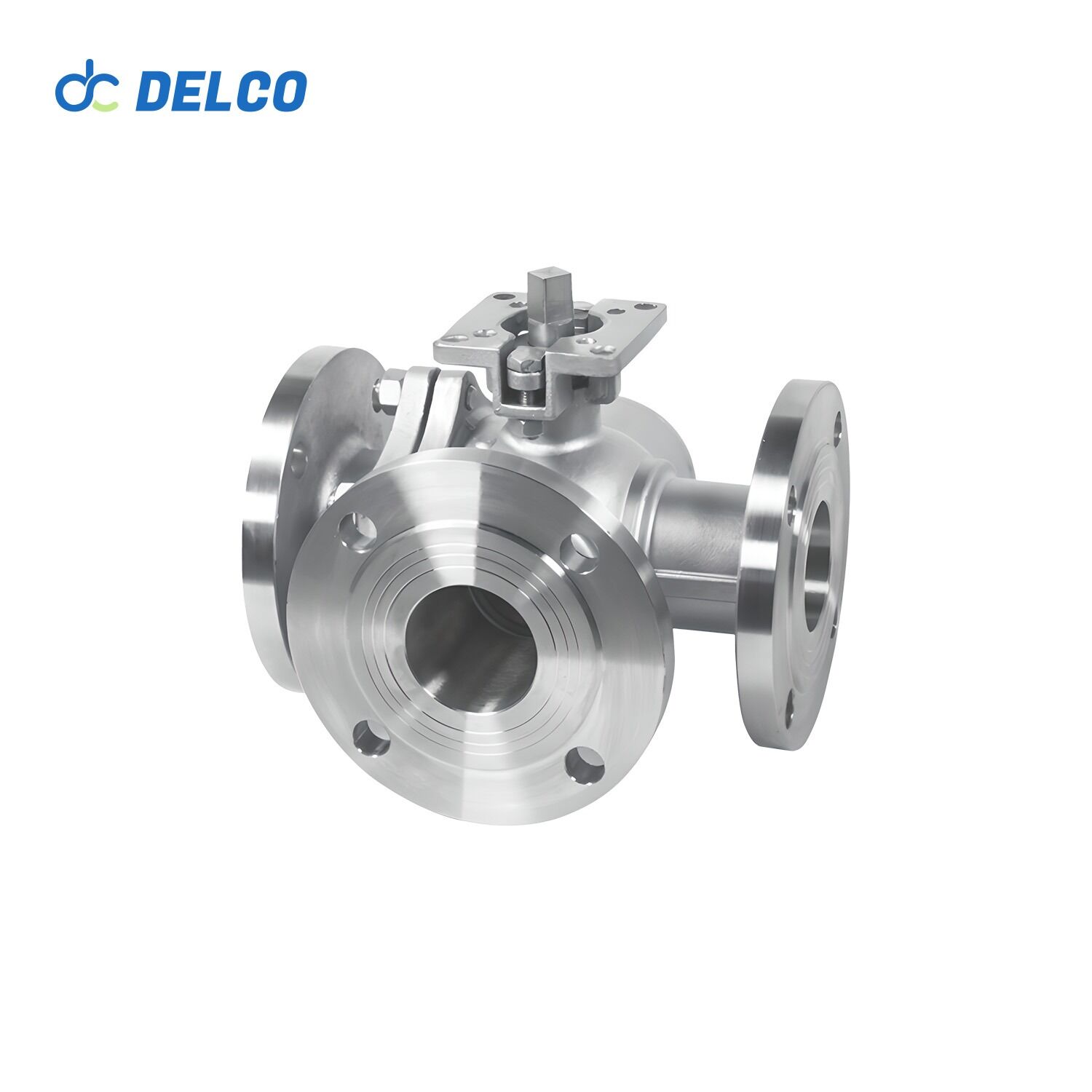

Valve Body | Valve components | ||
Size Range | DN15-DN200 | Sealing material | PTFE: -29℃~180℃ |
PPL: -29℃~250℃ | |||
Body Material | Stainless Steel | Core Material | Stainless Steel |
End Connection | ANSI Flange | Stem Material | Stainless Steel |
Operating Pressure1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar)Applicable mediaWater, Air, Gas, Oil, LiquidStructure3 Way L-port/T-port | 1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Oil, Liquid |
Structure | L-port/T-port |
DELCO 3/4” Automated Rotary Ball Valve
- Designed exclusively for enduring automation. Ideal for high-cycle OEM and end user applications
- Designed for compatibility with the widest variety of industrial and OEM applications.
- Designed for reparability. Wear components can be quickly and easily replaced.
- Application: Industrial Emissions Control Instrumentation Gaseous or Liquid Service
- Premium Quality/Low Cost/Made in China
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK55-TF | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
