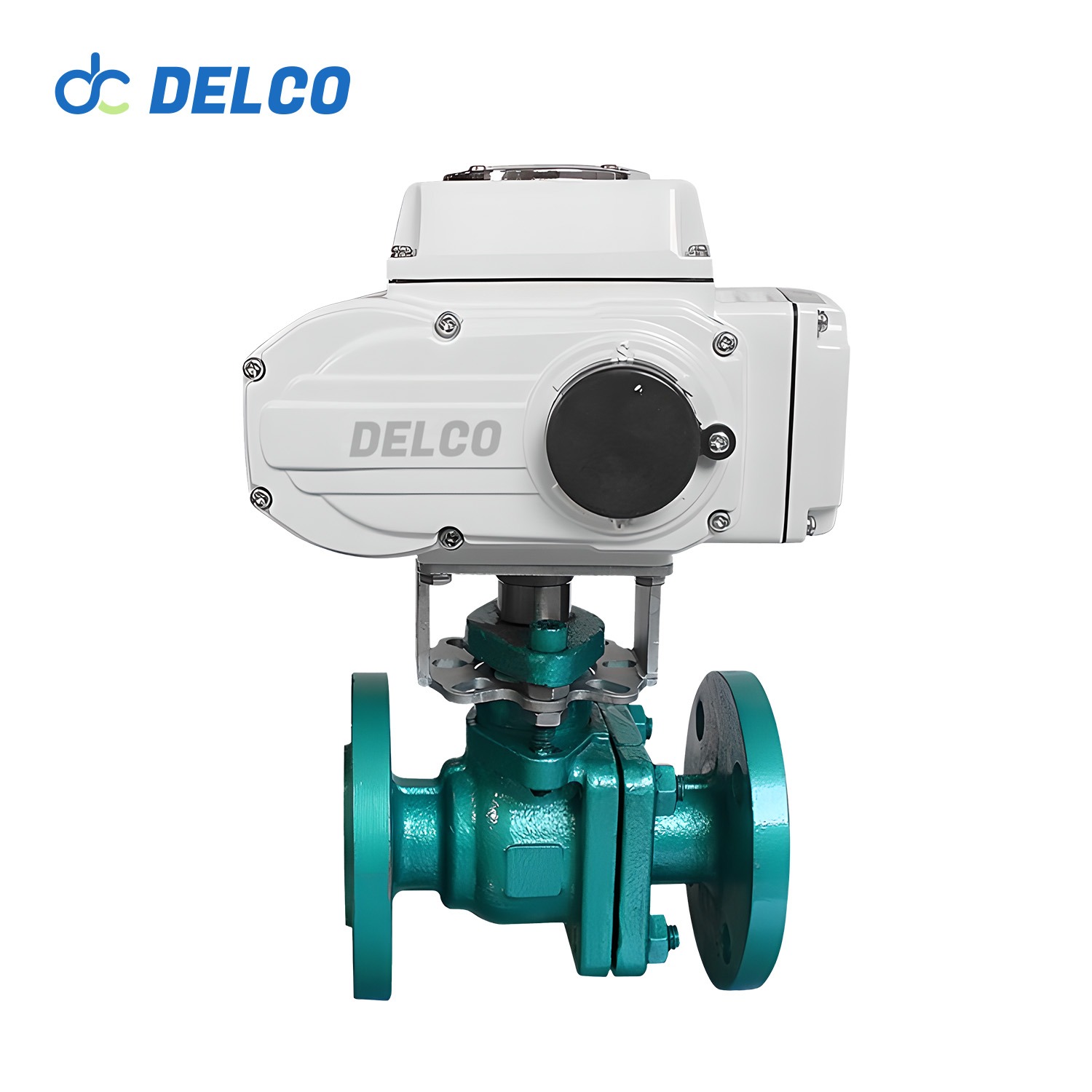

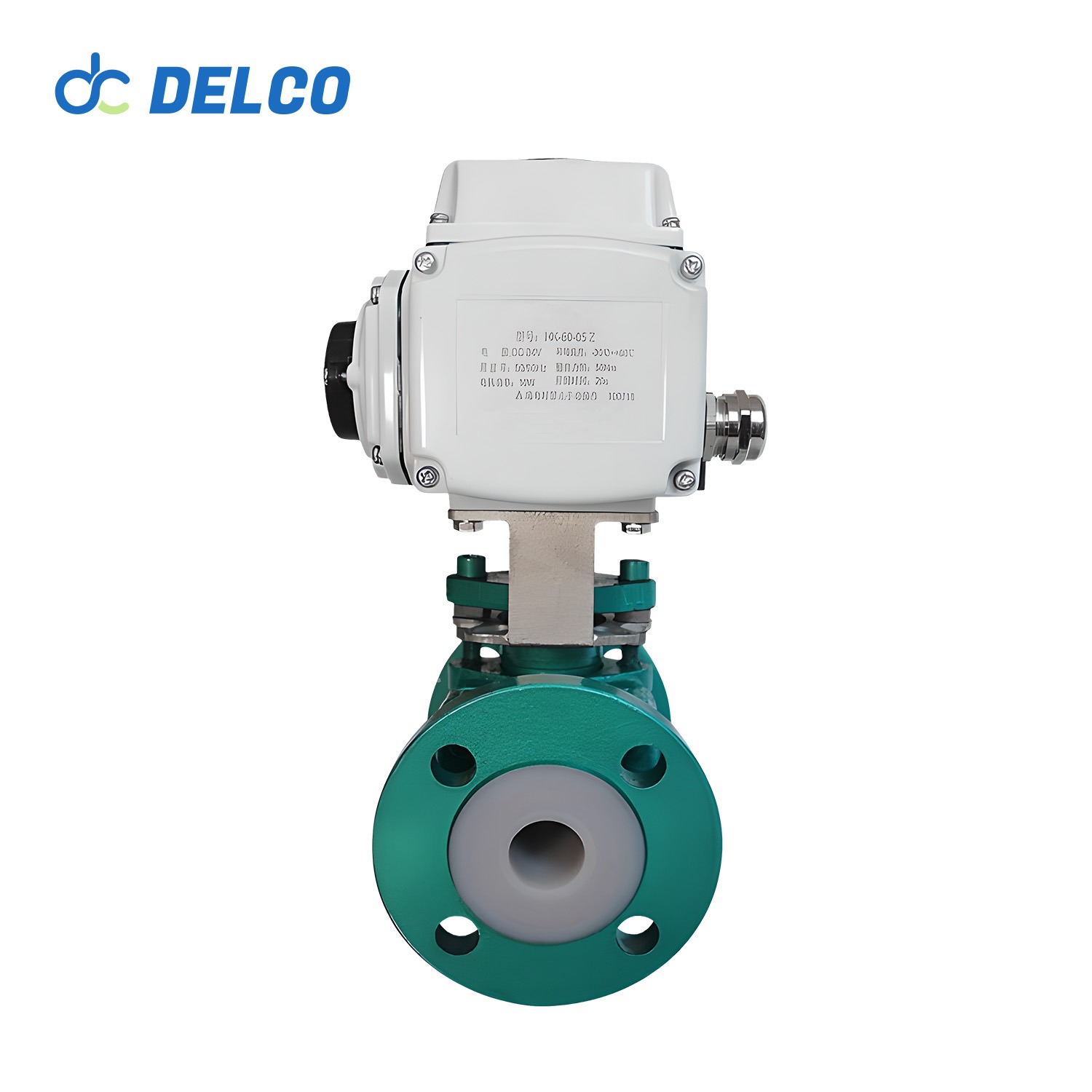

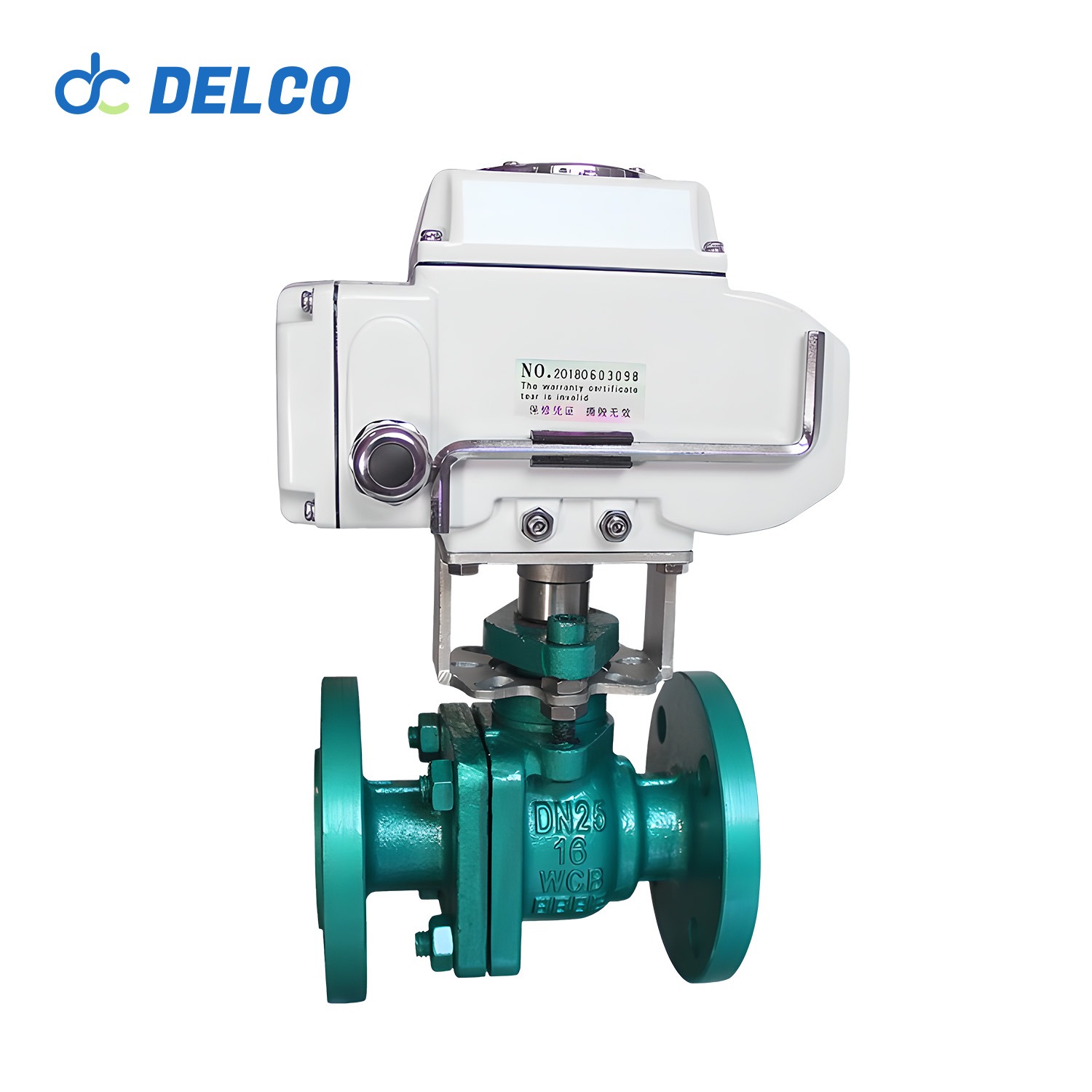

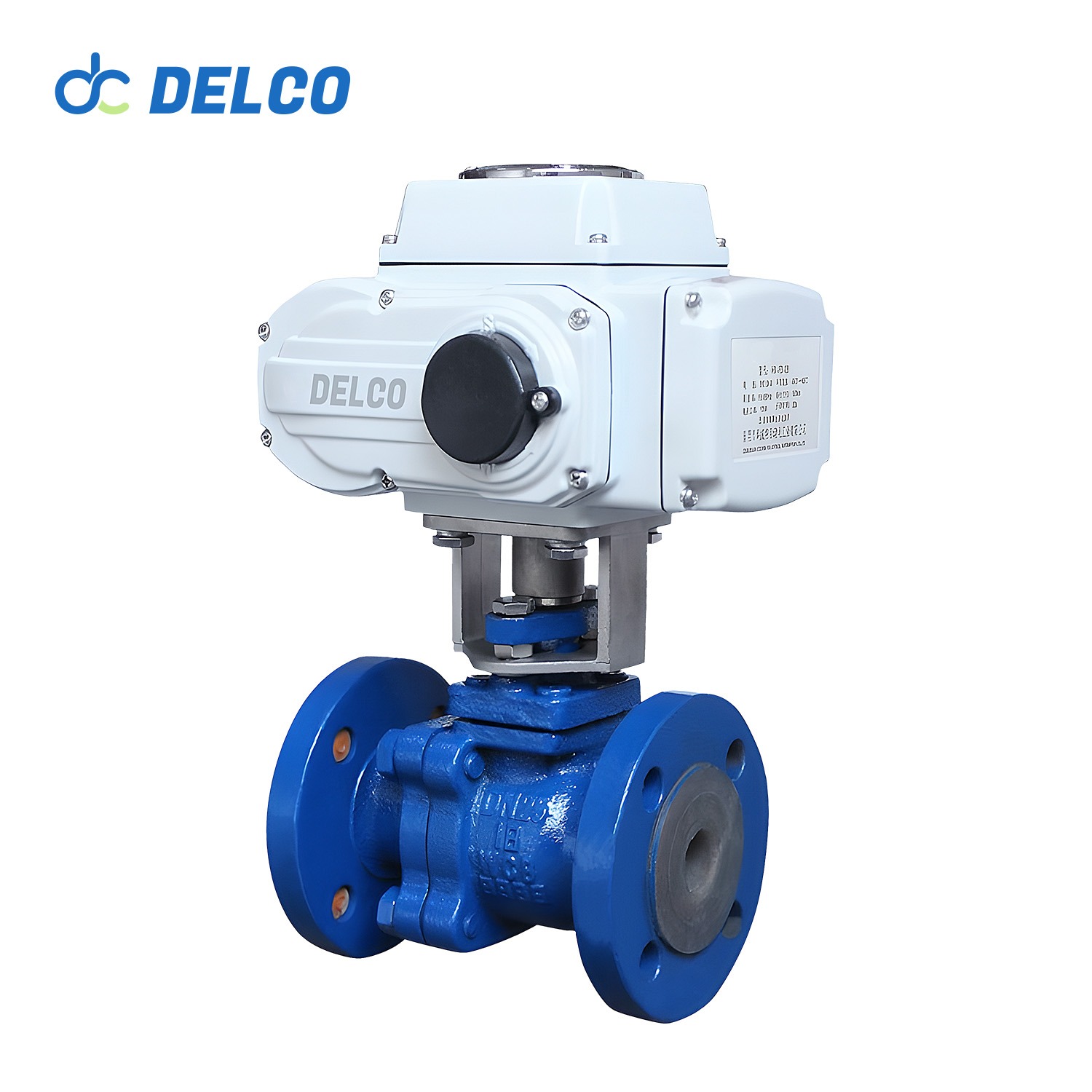

DELCO 220V Fluorine Lining Electric Actuator Ball Valves-DK55-CF
Model: DK55-CF
Size Range: 1/2” to 4”
Pressure Range: 1.6MPa to 6.4MPa
Material: WCB,CF8
What Is Fluorine Lining Electric Actuator Ball Valve？
Fluorine lining electric actuator ball valves combine the superior corrosion resistance of fluorine-lined valves with the automation capabilities of electric actuators. These valves feature a ball with a Teflon (PTFE) lining, providing excellent isolation between the media and the valve body. The addition of an electric actuator enables automated control of the valve, allowing for precise positioning of the ball to regulate flow.
Data Sheet of Valve：
| Valve Body | Valve components | ||
| Nominal size | DN15-DN100 | Sealing material | PTFE: -29℃~180℃ |
| Body Material | WCB | Disc Material | Cast Iron |
| End Connection | Flange | Stem Material | Stainless Steel |
| Operating Pressure | 1.6 / 2.0 / 6.4 MPa ( 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Floating ball core | Design standard | GB, ASMI |
DELCO Fluorine Lining Electric Actuator Ball Valves
- Beautiful appearance, compact structure, high strength, zero leakage
- Strong corrosion resistance, a broad scope of application
- Diversified performance, suitable for the transmission of mediums with large pressure drops and large temperature drops, convenient to install
- The patent positioning technology, reliable products and brands
- Can Be Customized to Meet Specific Application Needs
- Simple structure, easy to operate ,high cost-effective
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK55-CF |
Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
