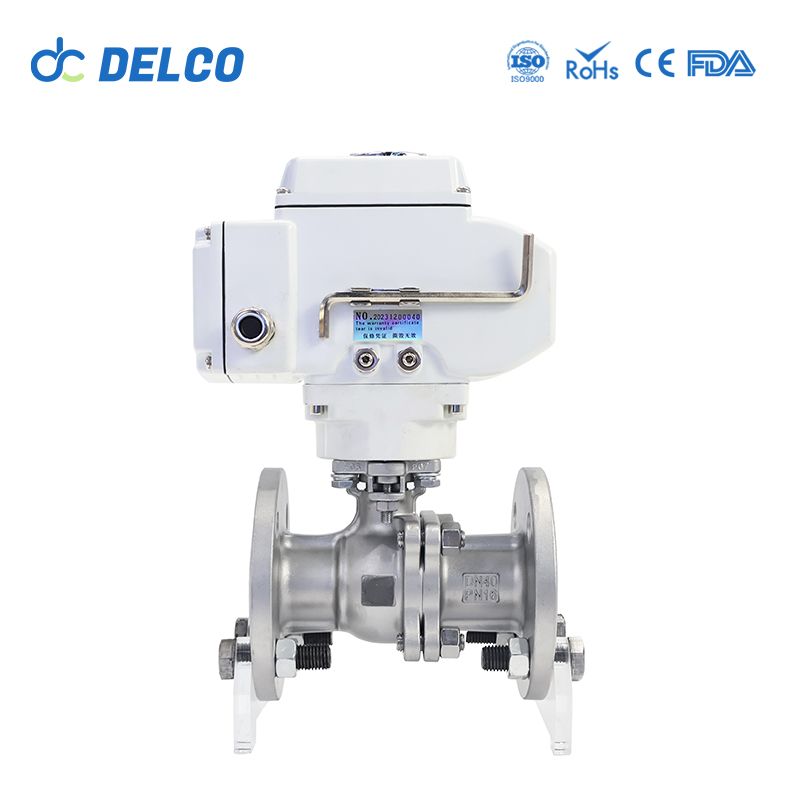

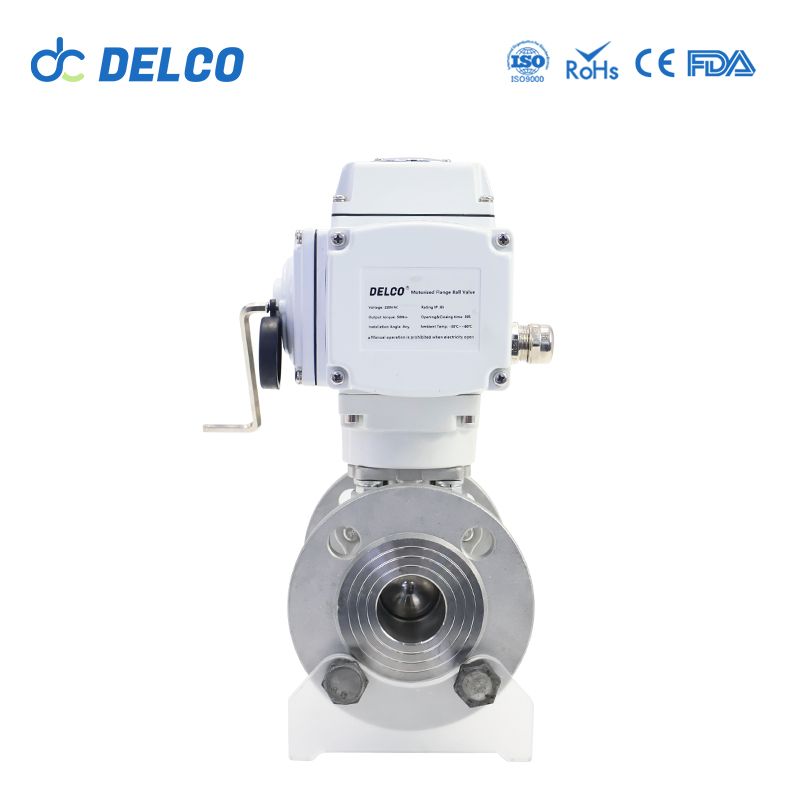

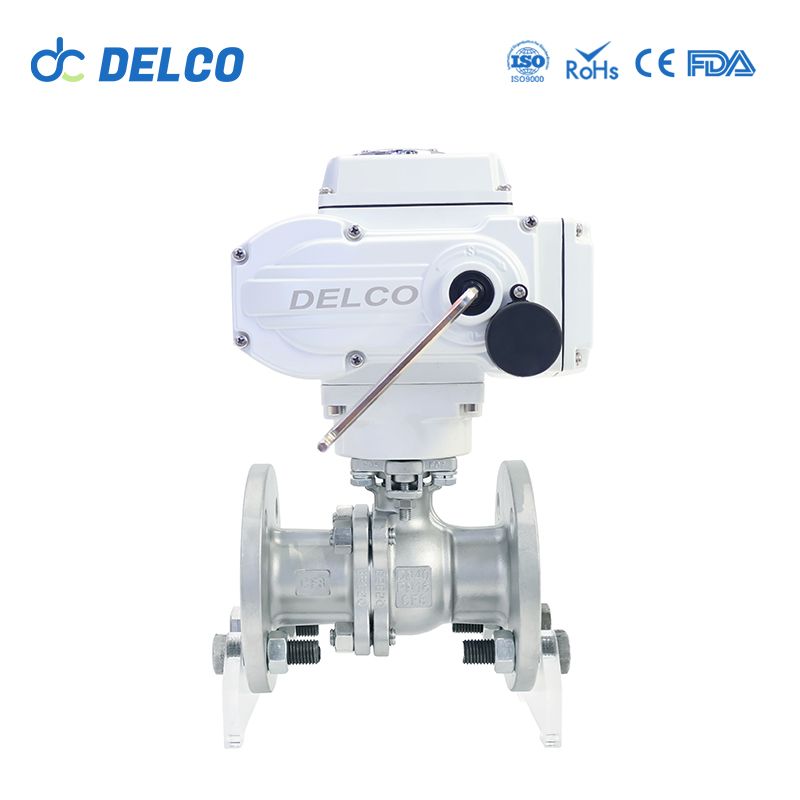

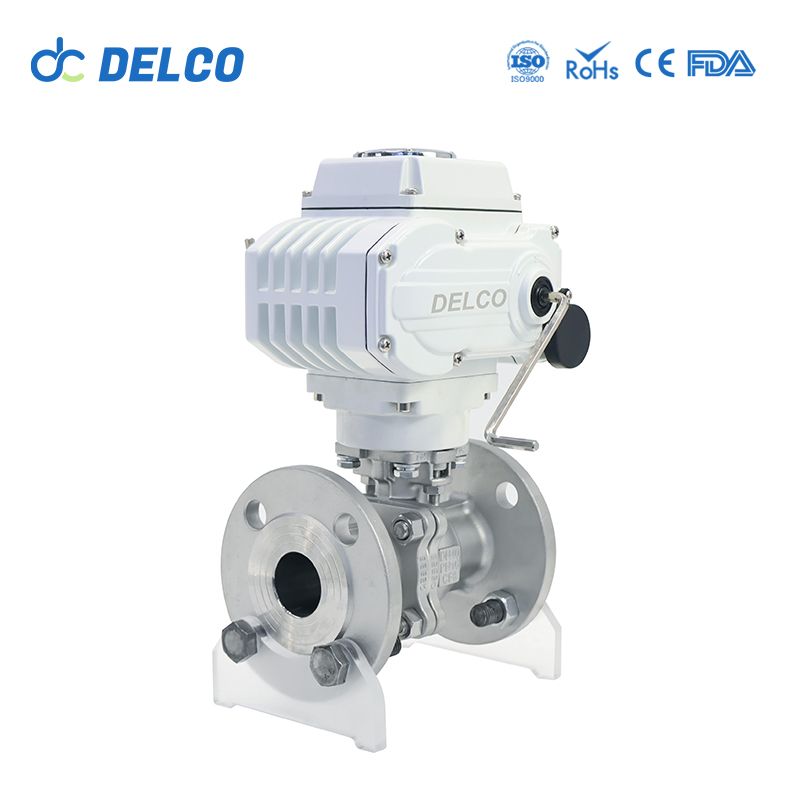

DELCO Intelligent Modulating Electric Actuated Ball Valves-DK55-2PF
Our 300-pound flanged auto ball valve is adaptable for industrial automation needs. It offers modulating or on-off electric actuators for local or remote control via an LCD display screen. Compatible with 4-20mA, 0-10V DC, or 1-5V DC signal controls, it’s widely used in irrigation systems and wastewater treatment.
This valve’s two-piece, two-way design ensures versatility in installation. Its NEMA 4/4X weatherproof enclosure and anti-static properties ensure durability, while its 304 stainless steel construction adds strength.
With a motorized operation and a 20-second 90-degree cycle time, our ball valve efficiently controls fluids in industrial settings.
Model: DK55-2PF
Size Range: 1/2” to 12”
Pressure Range: 1.6 to 6.4MPa
Material: Stainless Steel 304/316,WCB
What Are Electric Actuated Flange Ball Valves？
The Intelligent Modulating Electric Actuated Ball Valve is a cutting-edge valve system designed for precise fluid control. It combines a durable ball valve with an electric actuator capable of intelligent modulation.
Unlike traditional on-off actuators, this system allows for continuous adjustment of the valve position. This fine-tuned control enables precise regulation of fluid flow rates and pressure levels.
Equipped with advanced features like feedback sensors and communication protocols, these valves seamlessly integrate into automated control systems. They are ideal for applications requiring precise control and automation, such as HVAC systems and water treatment facilities.
Data Sheet of Valve：
| Size Range | DN15-DN300 | End Connection | Flange |
| Body Material | Stainless Steel 304/316 | Working Pressure | 16 / 25 / 40 / 64 Bar (232 / 362 / 580 / 928 psi) |
| Temperature Of Media | -10 to 180℃ (-22℉to 356℉) | Suitable Media | Water, Air, Oil, Gas, etc |
| Structure | Floating Ball Valve | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type | Voltage Tolerance | ±10% |
Intelligent Modulating Electric Actuated Ball Valves
- ON-OFF Type: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
- Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
- Available in manual control, signal control and AC/DC power supply
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK55-2PF |
Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
