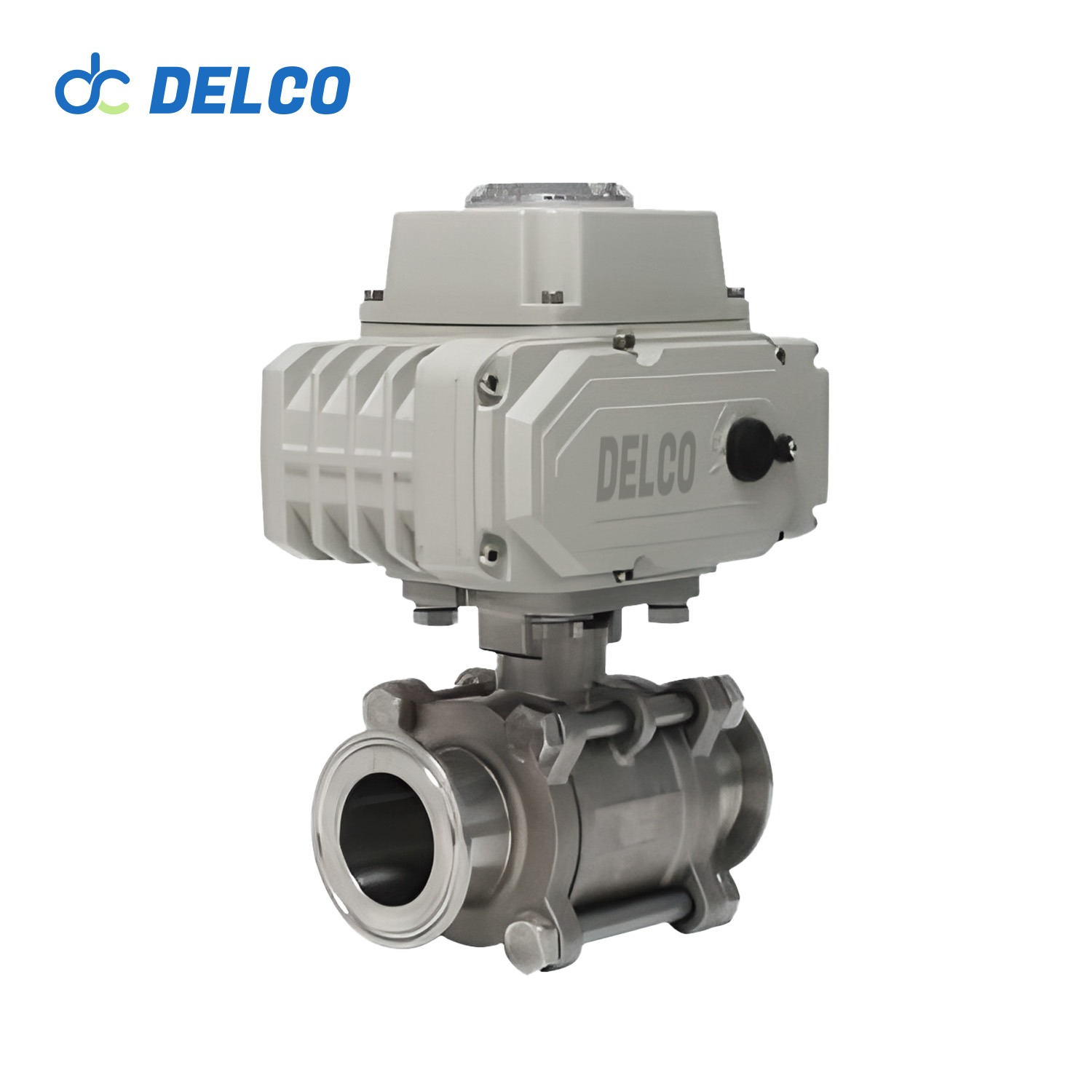

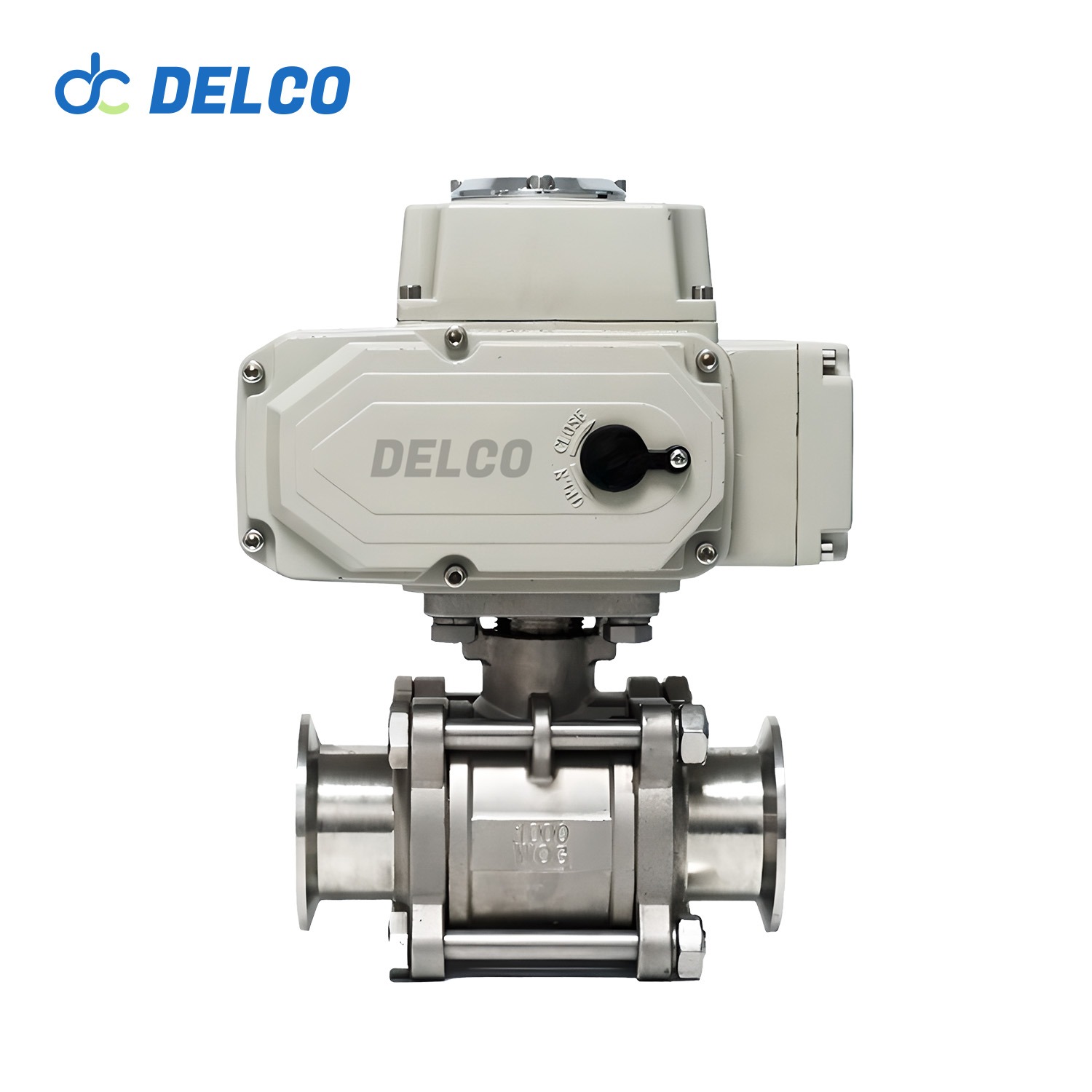

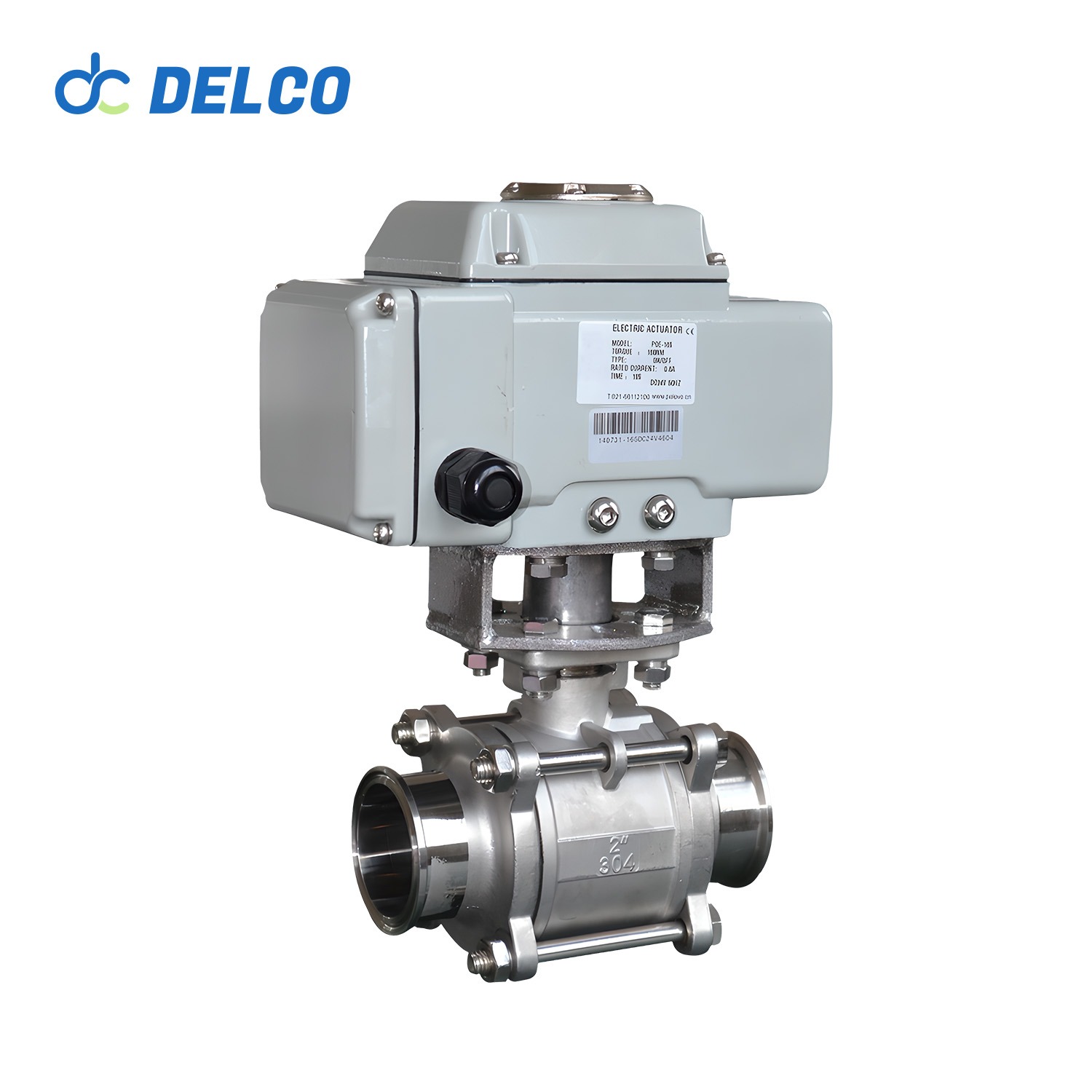

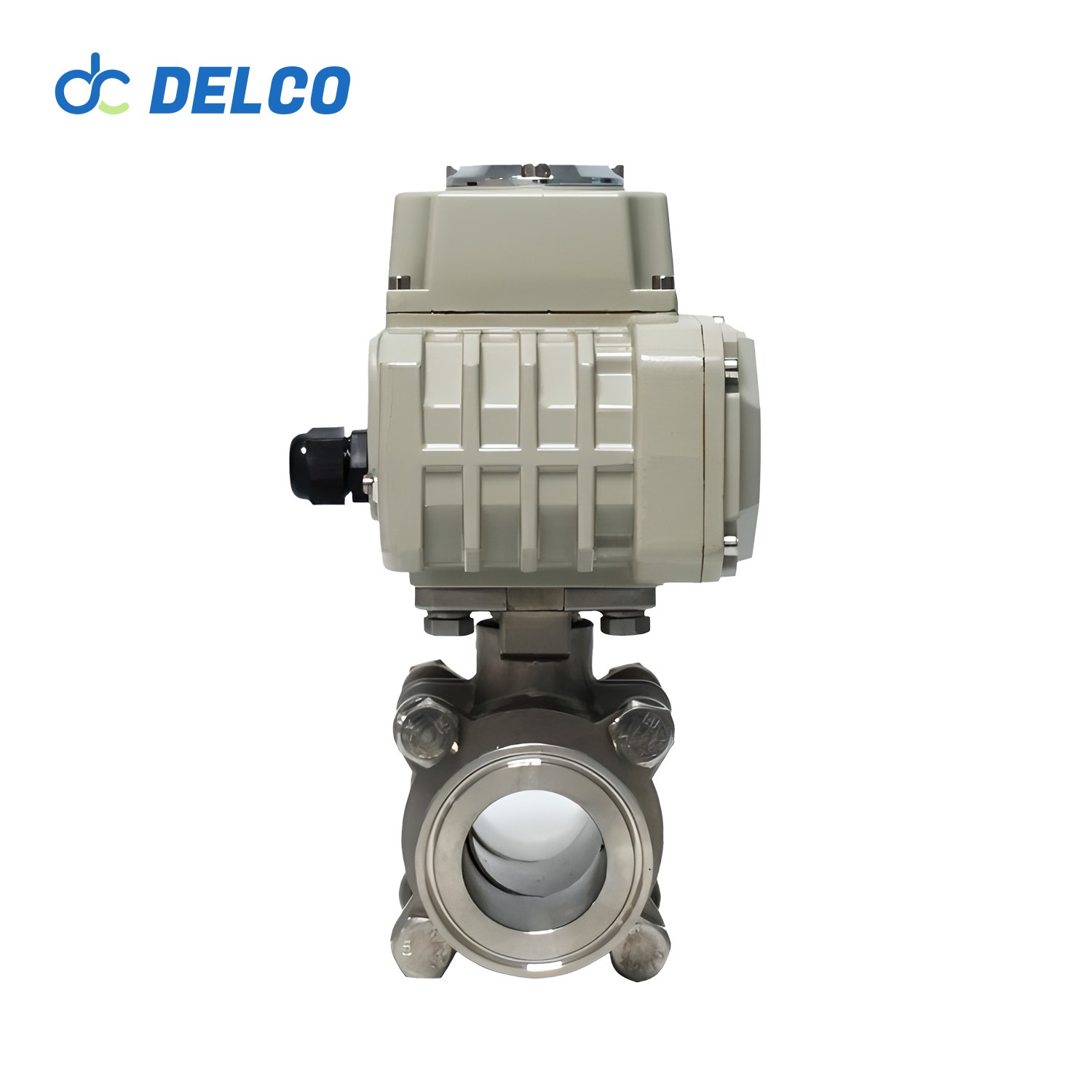

DELCO Motorized Socket Welded Electric Actuator 3PC Ball Valves-DK55-3PS-WK
Our electric ball valve, compatible with modulating and on-off electric actuators, offers local or remote control via an LCD display screen for industrial automation. It supports signal controls ranging from 4-20mA to 0-10V DC or 1-5V DC, making it versatile for irrigation systems, wastewater treatment, and more.
This socket welded electric ball valve, a three-piece, two-way valve, ensures flexible installation in any position required by your machinery. Its NEMA 4/4X weatherproof enclosure and 304 stainless steel construction ensure durability, while the 20-second 90-degree cycle time provides quick and precise control.
As a professional electric actuator ball valve manufacturer, DELCO prioritizes customer satisfaction. Contact us for top-notch products and services!
Model: Welded electric ball valve
Size Range: 1/2” to 4”
Pressure Range: 1.0 to 1.6MPa
Material:Stainless Steel 304/316
What Is Sanitary Welded Electric Actuator 3PC Ball Valve?
Sanitary welded electric actuator 3 PC ball valves are precision-engineered valves designed for applications requiring sanitary conditions, such as food and beverage, pharmaceuticals, and biotechnology industries. These valves feature a three-piece construction, which means they consist of three separate components: a body, end caps, and a ball with a central bore. The design allows for easy disassembly and maintenance, crucial in industries where hygiene is paramount.
Equipped with an electric actuator, these valves offer automated control, enhancing efficiency and accuracy in fluid flow management. The sanitary welded design ensures smooth internal surfaces and eliminates potential contamination points, meeting stringent cleanliness requirements. With their robust construction and automated operation, sanitary welded electric actuator 3 PC ball valves provide reliable performance in sanitary applications, contributing to product safety and integrity.
These valves are crucial for maintaining product quality and safety in industries where hygiene is critical.
Data Sheet of Valve:
Model | DK55-3PS-WK | Voltage | 12V DC |
MOQ | 1 Set | Actuator Type | On Off Control |
Applicable Standard | GB | No. of Ways | 2 Way |
Port Size | 1/2” to 4” | End Connection | BSP Thread |
Operating Pressure | 1.0 to 1.6MPa | Media | Water, Air, Gas |
Body Material | Stainless Steel | Temp. of Media | 10°C to 180°C |
Valve Ball | Stainless Steel | Certification | ISO 9001, CE, TUV, SGS |
Sealing Material | PTFE | Warranty | 1 Year (12 Months) |
DELCO 2 Way Welded Electric Actuator 3 PC Ball valves
- ON-OFF Type: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
- Regulation Type: Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
- Multi control methods for your choice: available in manual control, signal control and AC/DC power supply
- 3-piece ball valve design. Easy to maintenance and repair to extend the lifespan
- Available in threaded, flanged, tri-clamp, and welding connection
- Vast applications like water treatment, HVAC, paper & pulp, power plant, FGD industry, and other applications
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK55-3PS-WK | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
