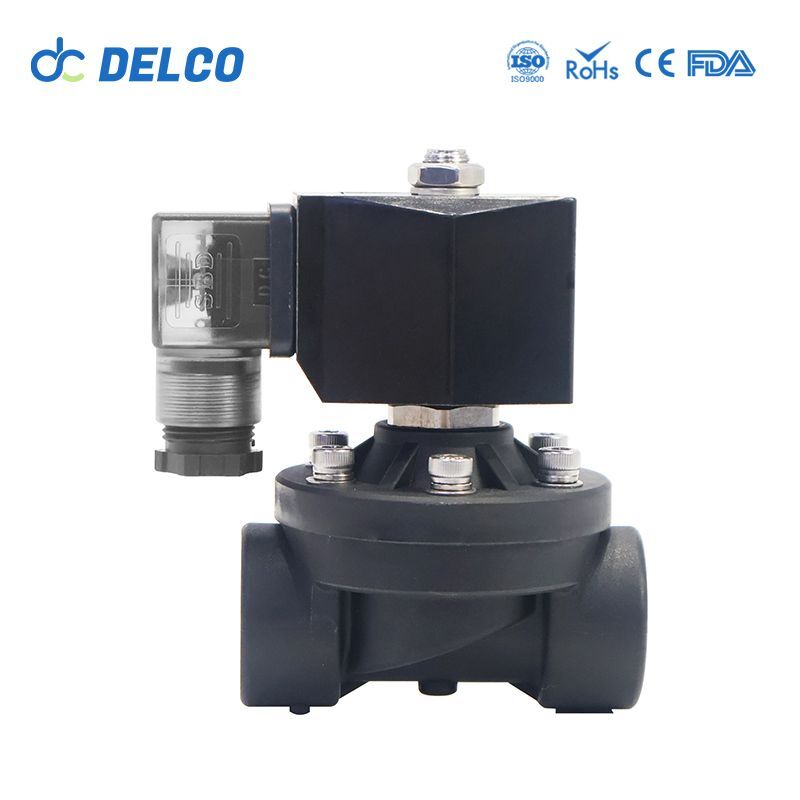

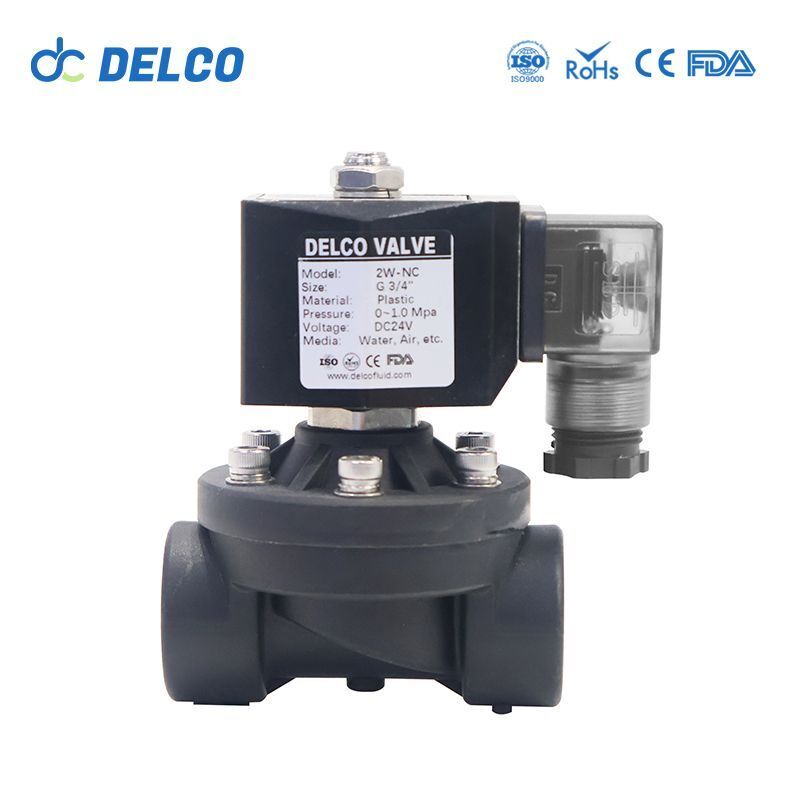

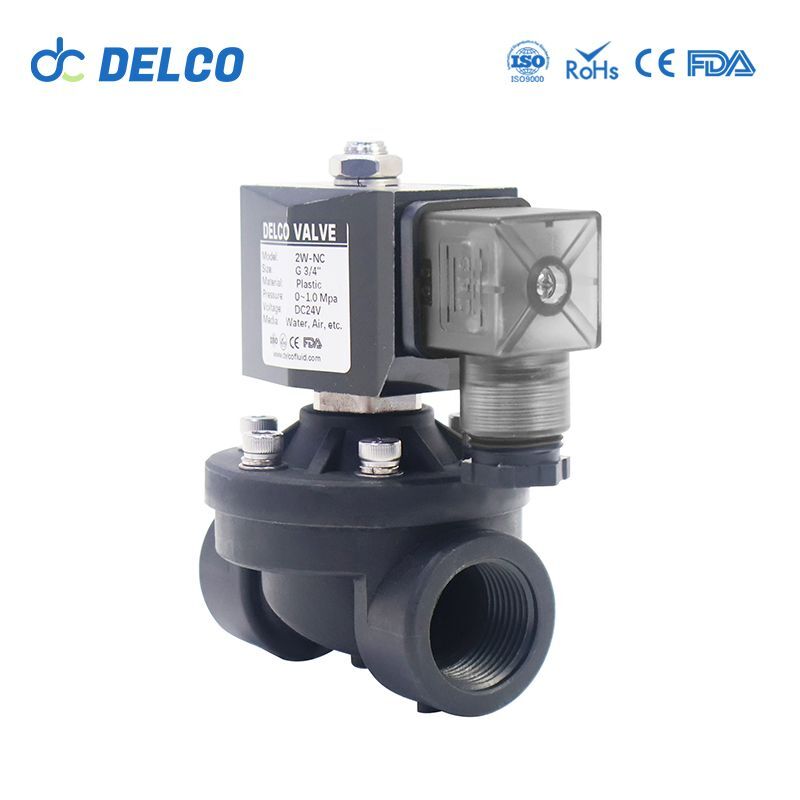

Direct Acting Diaphragm Waterproof Solenoid Valve for Fountain-2W21
The direct-acting diaphragm solenoid valve, designed for use in underwater applications, is crafted from brass or stainless steel, offering excellent corrosion resistance and structural strength for reliable operation in harsh underwater conditions. This valve responds quickly and opens from 0 bar, boasting a high flow rate. Controlled by electromagnetic force that directly drives the diaphragm, it supports zero-pressure actuation. The solenoid coil is IP68 waterproof-rated, ensuring long-term performance underwater within a pressure range of 0 to 1.0 MPa (0 to 150 PSI). Voltage options include 12VDC, 24VDC, 110VAC, and 220VAC, catering to diverse electrical systems.
With port sizes ranging from 1/2″ to 2″ (DN15 to DN50), the 2W41 solenoid valve is suitable for handling medium-temperature media. The valve supports both threaded and flanged connections, facilitating flexible and straightforward installation across various piping systems. The 2W41 solenoid valve is ideal for enhancing the aesthetic appeal of landscape fountains or ensuring stable water flow in swimming pools. It offers efficient performance, reliability, and an extended service life, making it a popular choice in different fountain systems, including those in swimming pools and parks.
- Model: 2W21-PVC
- Size Range: 1/2”~2”
- Pressure Range: 0-1.0 MPa
- Material: PVC or Stainless Steel Brass
Features
Compact structure: Waterproof solenoid valve allows easy installation and integration into various systems.
Quick response: Features a direct lifting diaphragm design, ensuring reliable operation.
High durability: Equipped with an IP68 solenoid coil, making it suitable for underwater applications and resistant to harsh conditions.
High frequency: Capable of high-frequency operation, ideal for low-pressure systems and ensuring efficient performance.
Versatile application: Perfect for use in swimming pools, square fountains, and other underwater environments where reliable water control is needed.
- 0-pressure start high flow: The underwater direct-acting diaphragm solenoid valve features zero-pressure start and high flow capacity, ensuring efficient operation in low or no-pressure conditions and high-flow applications.
Working Principles:
When used in underwater applications, direct diaphragm solenoid valves utilize electromagnetic force to control the movement of a directly attached diaphragm mechanism. When the solenoid valve is energized, the solenoid coil generates a magnetic field that attracts or pushes the diaphragm, which opens or closes the valve for precise control of fluid flow. This design allows for pressureless operation, providing excellent water and corrosion resistance for applications requiring reliable underwater operation. utilize electromagnetic force to control the movement of a directly attached diaphragm mechanism. When the solenoid valve is energized, the solenoid coil generates a magnetic field that attracts or pushes the diaphragm, which opens or closes the valve for precise control of fluid flow. This design allows for pressureless operation, providing excellent water and corrosion resistance for applications requiring reliable underwater operation.
Direct Acting Diaphragm Type Solenoid Valves technical Parameter
| Pressure: | 0-1.0 MPa | Orifice(mm): | 15、20、25、32、40、50 |
| Warranty: | 12 Moths | Voltage: | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Size Range | 3/8”~2” | Function: | Normally Closed / Normally Open |
| Temperature of media： | -5~80℃ (23℉ to 176℉) | Suitable Media: | Water, Air, Oil, Gas, etc |
Applications:
Direct acting diaphragm solenoid valve are widely used in a variety of industries, including:
Water and Wastewater Treatment: For controlling the flow of liquids in wastewater treatment, water supply and drainage systems, including sewage pumping stations, wastewater treatment plants and automatic sewage systems.
Food and Beverage: Used to control the flow of liquids in food and beverage processing, ensuring hygiene and process control.
Desalination: Used in desalination plants to control the flow of desalinated liquids and ensure efficient operation of reverse osmosis and evaporation processes.
Chemical: Used in chemical processing to control the flow of various chemical liquids, ensuring safe production and control of chemical reactions.
Textile: Used in the textile industry to control the flow of various chemical liquids in the dyeing, bleaching and finishing processes, ensuring production efficiency and quality.
Conclusion:
Direct-acting diaphragm solenoid valves for underwater applications offer a wide range of applications in underwater environments due to their unique waterproof design and excellent corrosion resistance. Its direct-acting diaphragm operating mechanism ensures fast and precise liquid flow control, providing reliable and efficient liquid control solutions for production processes, whether in food processing, chemical treatment or desalination industries.
