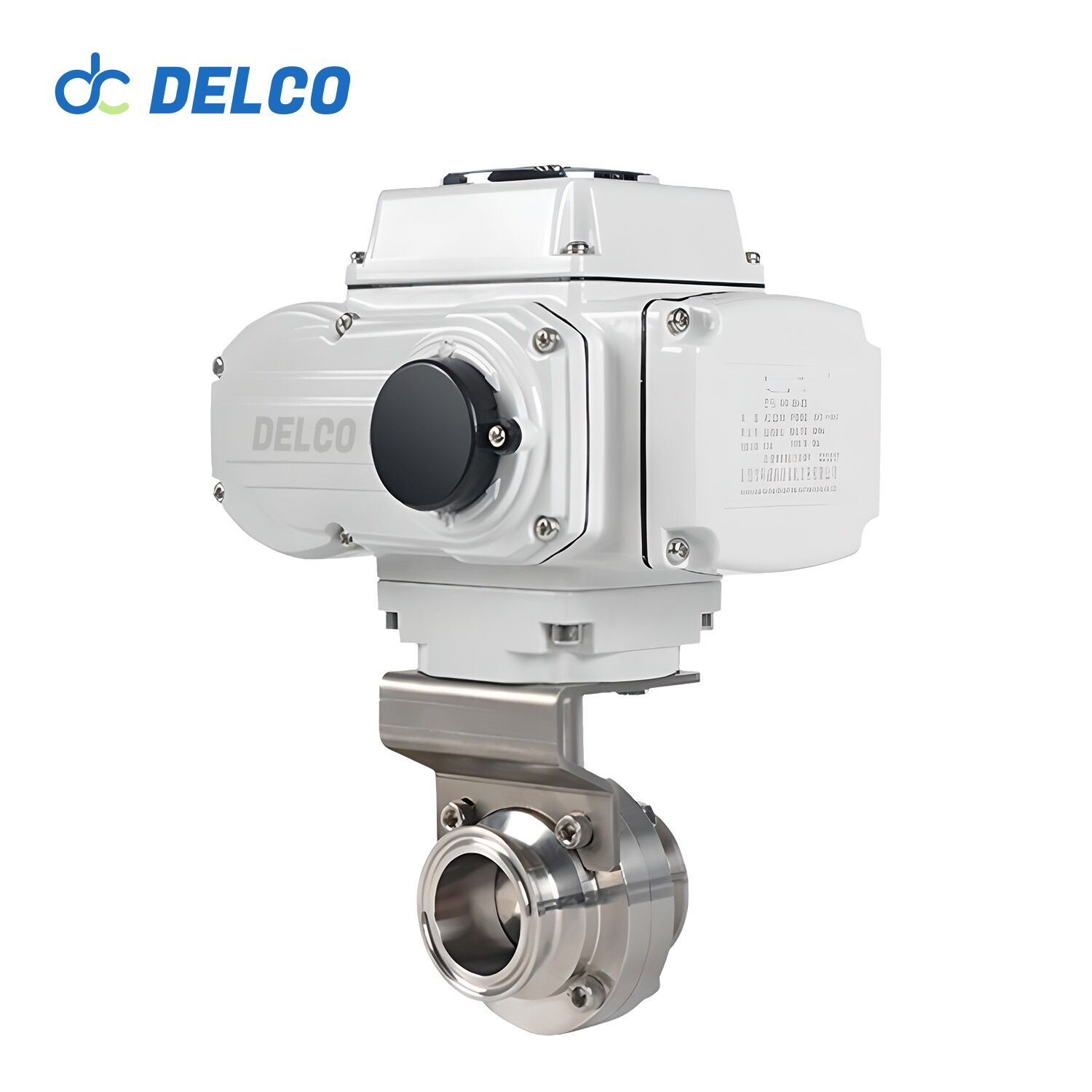

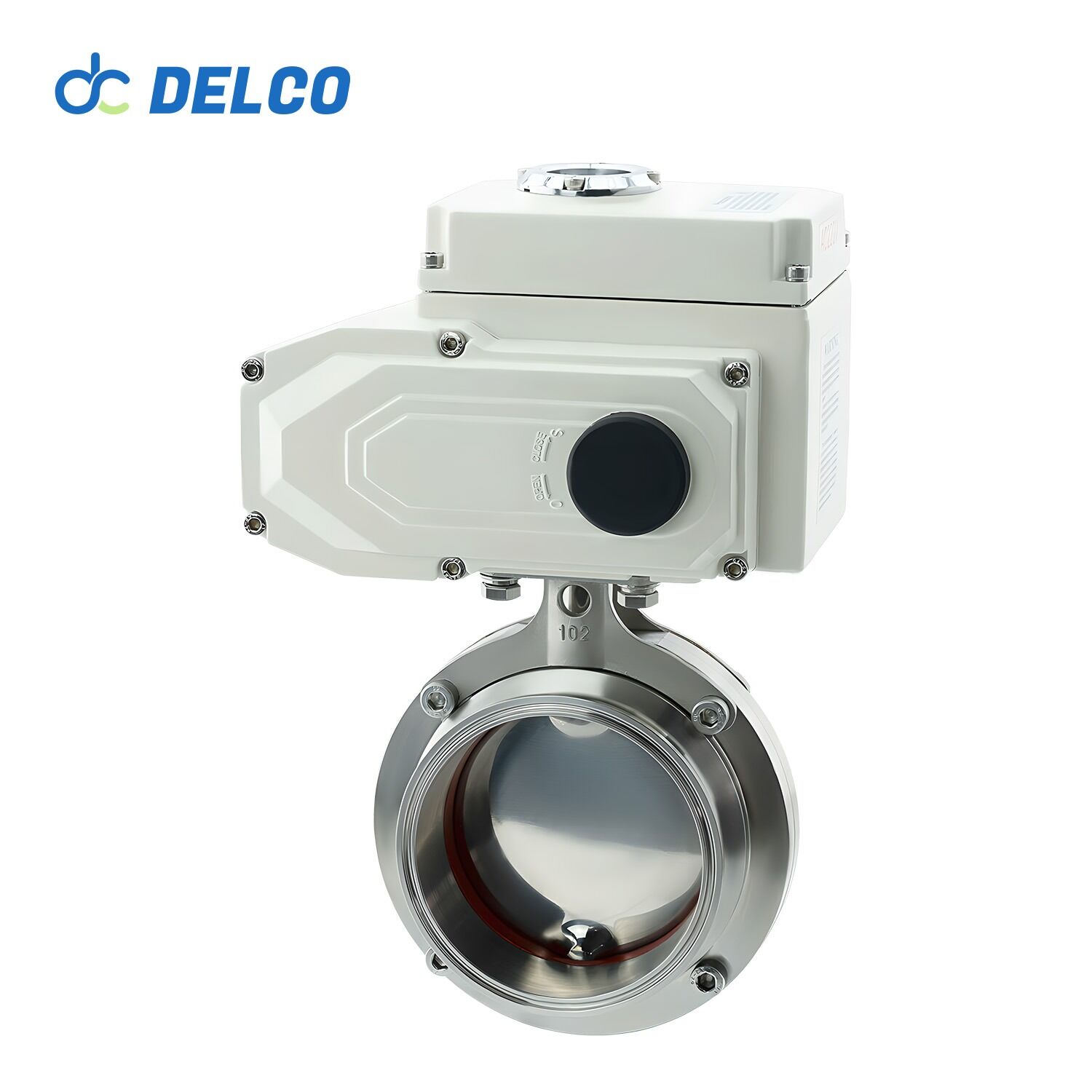

DELCO Electric Clamp Sanitary Butterfly Valve-DK56-DW
Electric clamp sanitary butterfly valves are essential components in sanitary systems, providing efficient and hygienic fluid control in industries such as food and beverage, pharmaceuticals, biotechnology, and cosmetics. These valves are designed to meet strict sanitary standards and regulations while offering precise control over fluid flow.
Electric clamp sanitary butterfly valves are specially designed for applications requiring hygienic and sterile conditions, such as food processing, pharmaceutical manufacturing, and biotech production. These valves feature a clamp connection system that facilitates easy installation and maintenance without compromising hygiene standards. The electric actuation mechanism enables remote control and automation, ensuring precise fluid control in sanitary environments.
Model: Sanitary Butterfly Valve
Size Range: 1’/2” to 4”
Pressure Range: 1MPa~1.6MPa
Material: Stainless Steel 304/316
Description
The operation of electric clamp sanitary butterfly valves is similar to other butterfly valve designs. The valve disc rotates within the pipeline to regulate fluid flow, while the clamp connection system provides a secure and hygienic seal. Electric actuators drive the valve operation, receiving signals from control systems to adjust the valve position and maintain optimal flow rates in sanitary processes.
In conclusion, electric clamp sanitary butterfly valves are essential components in sanitary systems, providing efficient and hygienic fluid control in food, pharmaceutical, biotech, and cosmetic industries. With their sanitary design, easy installation, precise control, and compliance with regulations, these valves offer reliable performance and product integrity in critical sanitary applications.
Clamp Sanitary Butterfly Valve technical Parameter
| Valve Body | Valve components | ||
| Nominal size | DN15-DN100 | Sealing material | PTFE, Silicone |
| Body Material | Stainless Steel | Disc Material | Stainless Steel 316 |
| End Connection | Tri-clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Applicable media | Water, Air, Gas, Petroleum, Oil, Liquid |
| Structure | Midline structure A type | Design standard | GB, ASMI |
Clamp Sanitary Butterfly Valve Features and Components:
- Sanitary Design: Electric clamp sanitary butterfly valves are constructed with materials and finishes that meet stringent sanitary requirements, ensuring compatibility with food-grade and pharmaceutical applications.
- Clamp Connection: The clamp connection system allows for quick and easy installation and removal of the valve, minimizing downtime and ensuring hygienic operation.
- Electric Actuator: Electric actuators provide precise control over the valve position, enabling remote operation and automation for improved process efficiency and control.
- Stainless Steel Construction: Many electric clamp sanitary butterfly valves are made of stainless steel, offering excellent corrosion resistance and durability in sanitary environments.
- FDA-Compliant Seals: Sealing materials used in these valves comply with FDA regulations, ensuring product safety and integrity in food and pharmaceutical processing applications.
- Position Feedback: Some valves feature position feedback devices that provide real-time information on the valve position, enabling accurate monitoring and control of fluid flow.
Clamp Sanitary Butterfly Valve Applications:
Electric clamp sanitary butterfly valves are widely used in industries and applications requiring hygienic fluid control, including:
- Food and Beverage Processing: Regulating the flow of ingredients, additives, and final products in food and beverage production facilities.
- Pharmaceutical Manufacturing: Controlling the flow of pharmaceutical ingredients, solvents, and formulations in drug manufacturing processes.
- Biotechnology: Managing the flow of media, buffers, and bioprocess fluids in bioreactors and fermentation systems.
- Cosmetics Production: Regulating the flow of cosmetic ingredients, emulsions, and formulations in cosmetics manufacturing processes.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK56-DW | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
