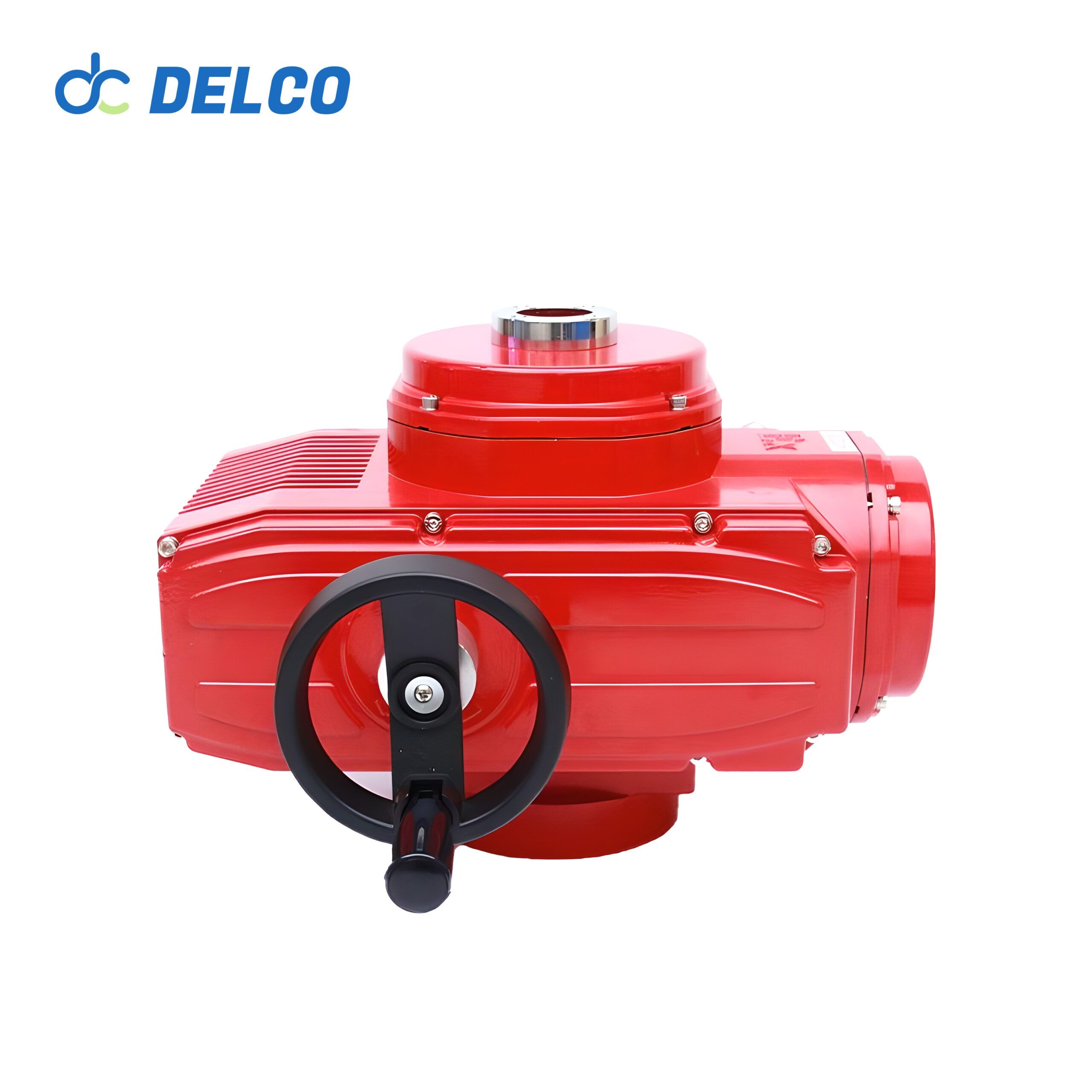

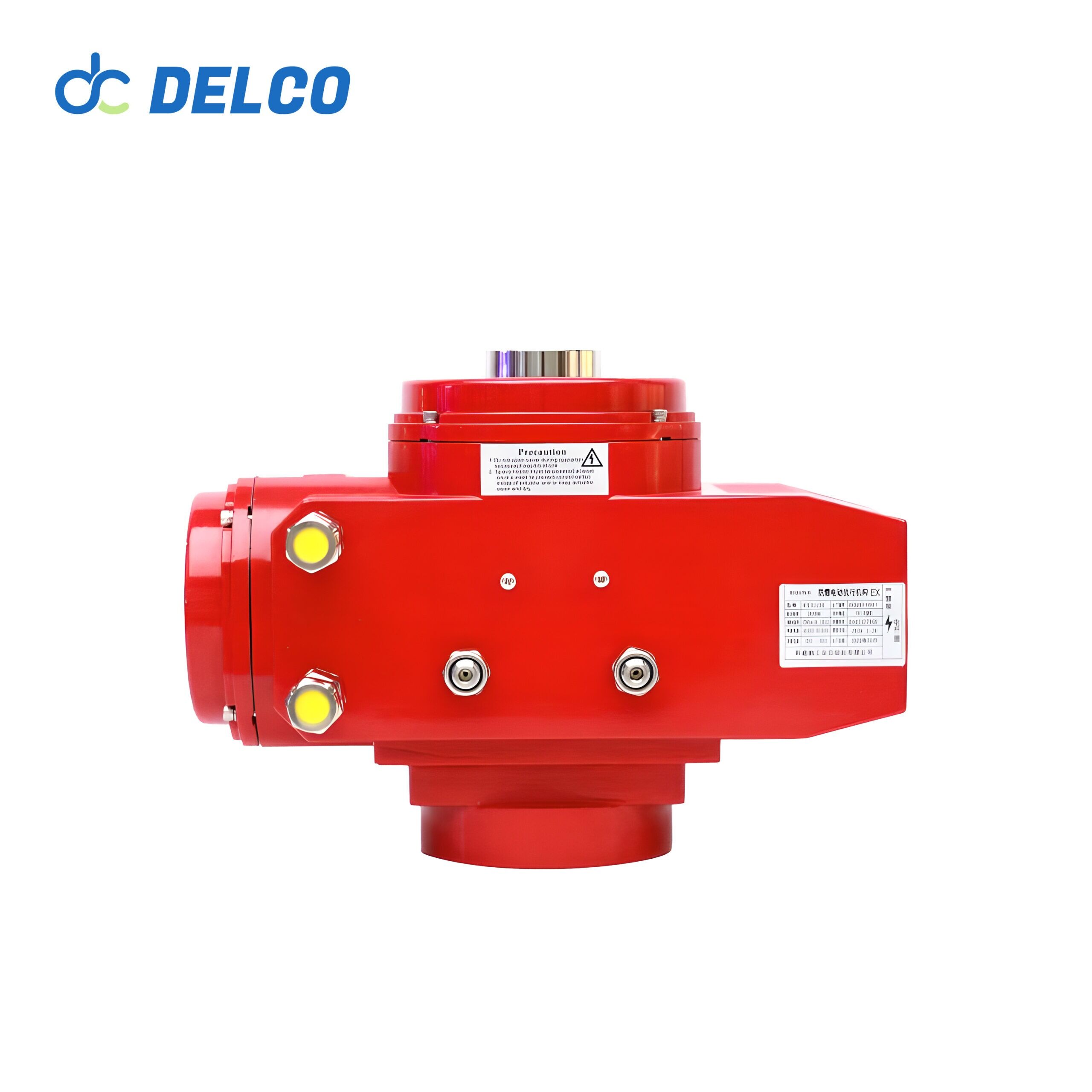

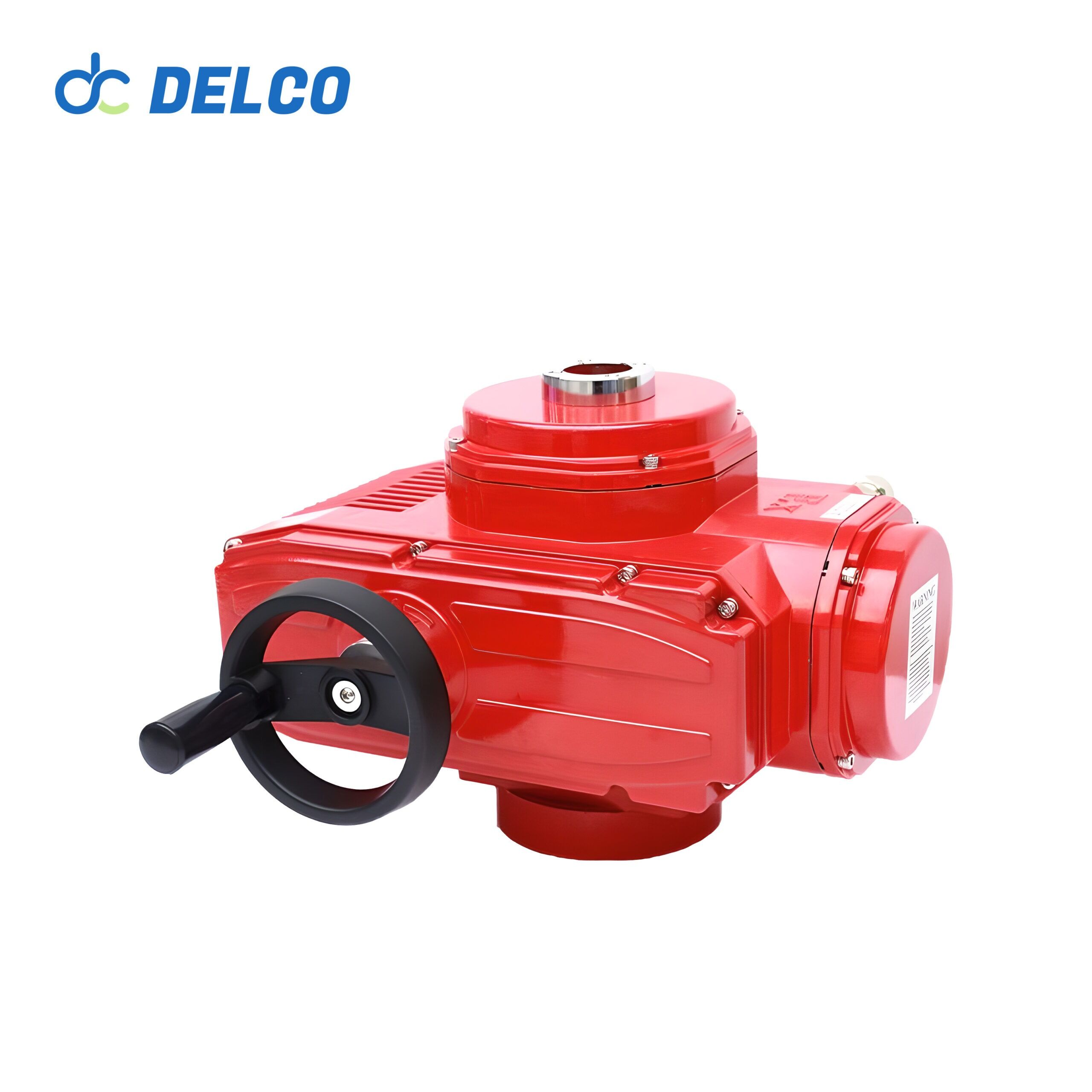

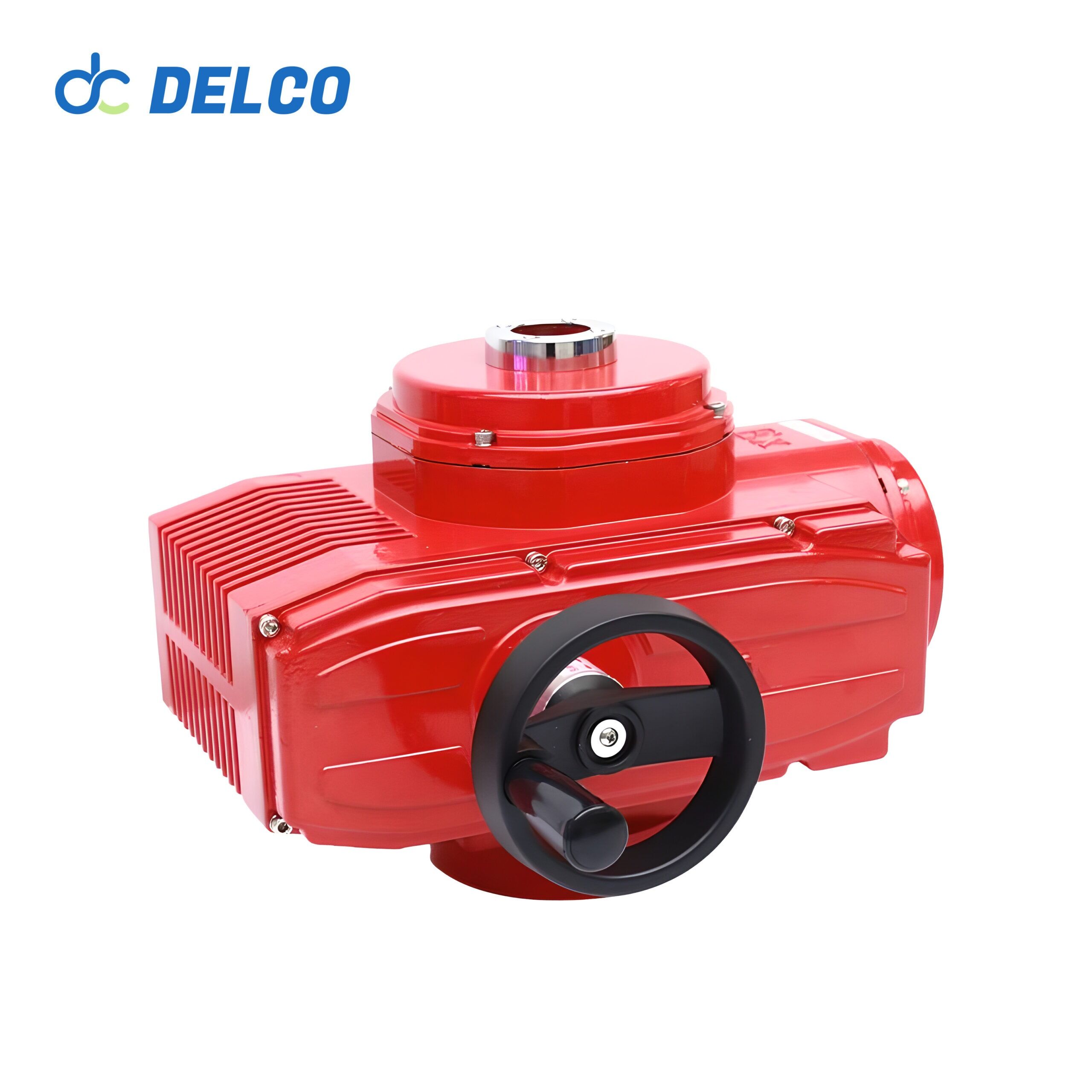

DELCO Valve CT6 Explosion-proof Motorized Actuator
Ensuring electrical equipment is safe for use in explosive environments involves various methods outlined in standards such as GB3836, IEC60079, EN50014, and others. The DELCO Valve CT6 Explosion-proof Motorized Actuator achieves explosion protection by adhering to the standards for explosion-proof types (Exd). This ensures compliance with safety regulations and guarantees the actuator’s suitability for hazardous environments.
Model: explosion-proof electric actuator
Size Range: CT6-EX10~CT6-EX300
Pressure Range: Null
Material: Aluminum Alloy
Explosion-proof Electric Actuator
To ensure explosion protection, electrical equipment must undergo meticulous design and construction processes in line with industry standards like GB3836, IEC60079, and EN50014. The DELCO explosion-proof series electric actuators are specifically engineered to adhere to the standards for explosion-proof type (Exd), as detailed in regulations such as GB3836.1-2010 and GB3836.2-2010.
Explosion-proof actuators are specifically designed to contain potential explosions within the unit. Their housing features a flame-proof surface that prevents internal sparks or explosive materials from igniting the surrounding environment. This flame-proof surface maintains a sufficient gap to ensure safety while withstanding the high pressure generated by internal explosions without sustaining damage. Key components of DELCO Valve explosion-proof series actuators, including the motor cavity, electrical component cavity, and press line cavity, are meticulously designed and manufactured to comply with explosion-proof standards.
Product Technical Parameters
performance | AC24V | AC110V | AC380V | AC220V | AC24V | AC110V | AC380V | AC220V |
Motor Power | 250W | 250W | ||||||
Rated current | 9A | 2.2A | 0. 48A | 1.2A | 9A | 2.2A | 0.48A | 1.2A |
Output torque | 300Nm/800Nm/1000Nm | 2000Nm/3000Nm | ||||||
operation hours | 30S | 60S/90S | ||||||
Control circuit | Type A, D type, G type, H type, K type, P type, R type, S type, itelligent non-intrusive and RS485 bus type | |||||||
Swing angle | 0~ 360° adjustable | |||||||
Total Weight | 24Kg | 24Kg | ||||||
Inulation rsistance | 100MQ/500VDC | |||||||
Pressure rating | 1 500VAC/ 1 minute | |||||||
Protection level | IP67 | |||||||
Ambient emperaur | -25C- +60 (Other temperatures can be customized) | |||||||
itallation angle | 360° installation at any angle | |||||||
Carcass material | Aluminum alloy precision die casting | |||||||
Optional function | Over-torque protection, heating dehumidifier |
