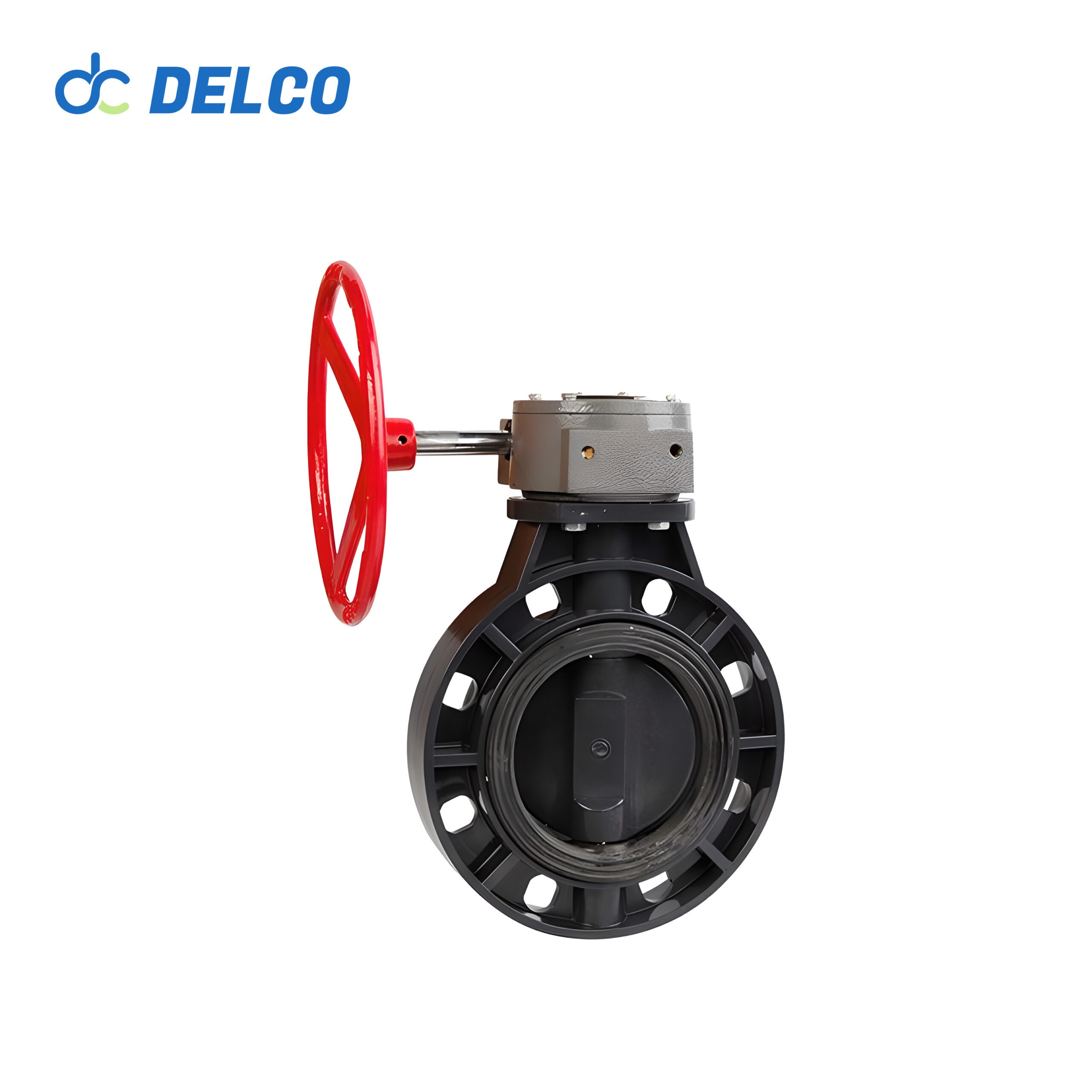

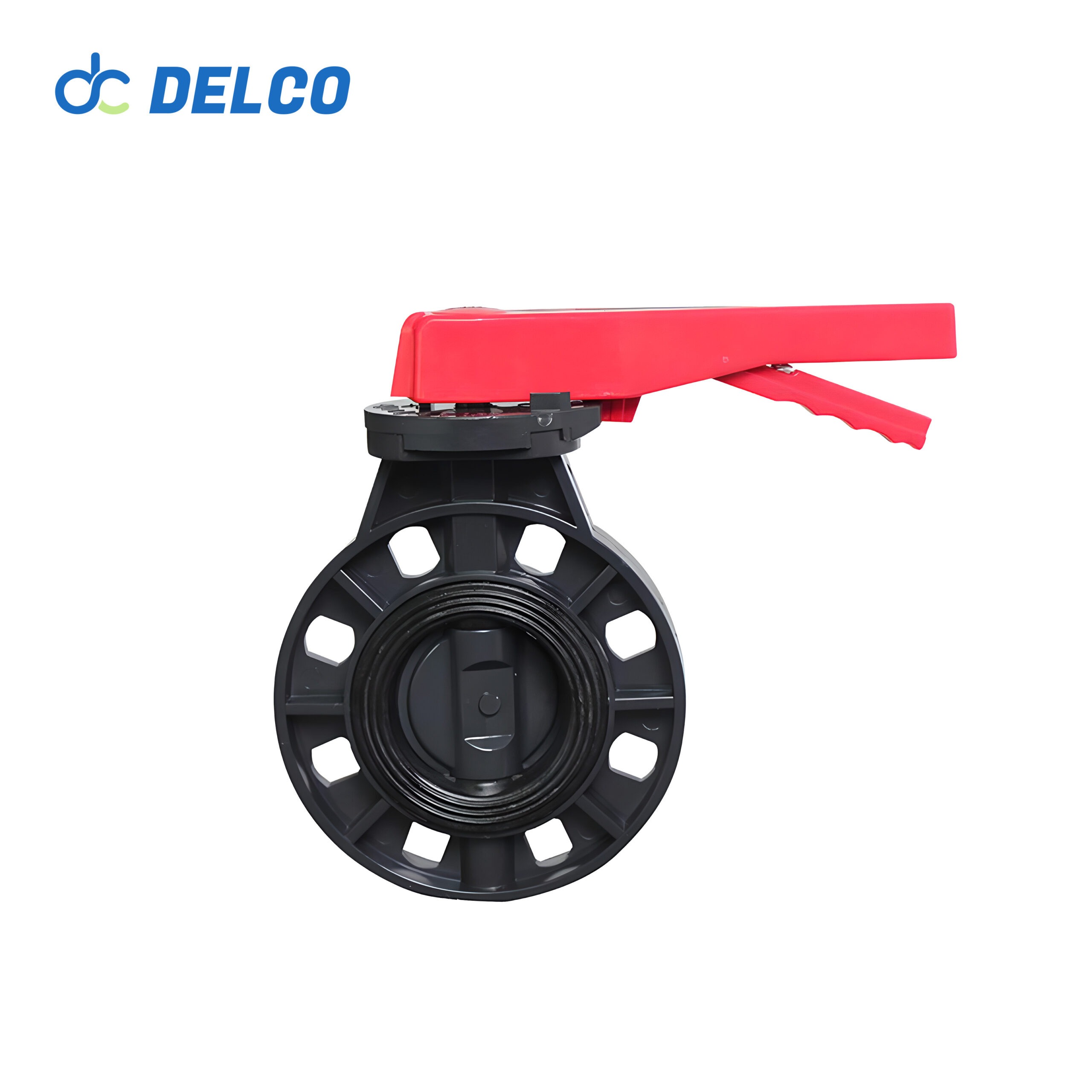

Manual Corrosion-Resistant Plastic UPVC Butterfly Valve
Manual Corrosion-Resistant UPVC Butterfly Valve is designed to meet the needs of various corrosive pipeline fluids, using the butterfly plate rotating with the rod as the opening and closing parts. The valve because of its plastic material has the butterfly valve not only small size, simple structure, light weight, corrosion resistance and other advantages, compact and beautiful structure, convenient installation. It is widely used in many industries, suitable for non-toxic sanitary conditions, with wear-resistant, easy to dismantle and maintenance is simple and so on, to achieve the opening and closing of the valve and adjustment. Compared with the gate valve with the same parameters, UPVC butterfly valve weight reduced by 30% to 50%, and the butterfly plate can be rotated 90 degrees to complete the opening and closing process. Due to the rotating shaft on both sides of the butterfly plate media force is approximately equal and opposite torque, opening and closing torque is small.
The valve body of UPVC butterfly valve is made of PVC, CPVC, UPVC and other materials, which has excellent chemical corrosion resistance. The sealing seat is made of EPDM (EPDM) or FPM (Fluoroelastomer), which provides good sealing performance and is resistant to oil, heat, flame, sunlight, ozone, acids, alkalis, and chemical reagents. With beautiful appearance and easy installation, the valve is an ideal fluid control device for all types of piping systems.
Model: UPVC Butterfly Valve
Size Range: 2″ to 8″
Pressure Range: 1.0MPa-1.6Mpa
Material: UPVC, PVC
Features
- Light weight and corrosion resistance：UPVC manual butterfly valve is made of plastic, light weight, with excellent corrosion resistance, suitable for a variety of corrosive media.
- Compact structure：Compact and beautiful design, occupies little space, installation and maintenance are very convenient.
- Easy operation：The butterfly plate rotates with the rod and can be opened and closed by rotating 90 degrees, which is easy and efficient to operate.
- Small torque：The butterfly plate on both sides of the shaft is subjected to uniform force and opposite torque, so the opening and closing torque is small, which makes the operation easier.
- Wide application：Applicable to chemical, petrochemical, smelting, pharmaceutical, food and other fields, can be used in a hygienic and non-toxic environment, wear-resistant, easy to disassemble, easy maintenance.
- Excellent fluid control：Butterfly plate thickness is the only resistance when the medium flows through the valve body, small pressure drop, excellent flow control performance, suitable for precise flow control applications.
- Environmentally friendly material：UPVC material is environmentally friendly and non-toxic, conforms to hygiene standards and meets the strict requirements of the food and pharmaceutical industries.
Technical Parameters
| Port Size: | 2″ to 8″ | Material: | UPVC, PVC |
| Pressure: | 1.0MPa-1.6Mpa | Seal Structure: | Soft Seal |
| Warranty： | 12 Moths | Function： | Manual |
| Place of Shipment： | Guangdong,China | Suitable Media | water, gas, steam, oil, corrosion medium etc |
Application
- Compressed Air
Used in compressed air systems, UPVC butterfly valves control air flow to ensure stable operation of equipment and reduce energy consumption. - Oils and Gasses
UPVC butterfly valves are used to control flow and pressure in the transportation and handling of oils and gasses, and their corrosion resistance ensures reliability and safety in a variety of operating conditions. - HVAC (Heating & Air Conditioning)
UPVC manual butterfly valves are used in HVAC systems to regulate and control the flow of hot and cold water and air to ensure efficient system operation and environmental comfort. - Water Distribution & Treatment
In water treatment and distribution systems, UPVC butterfly valves are used to control the flow of clean water and wastewater, with excellent corrosion resistance and sealing performance, to ensure the safety of water quality and reliable operation of the system. - Agricultural UPVC manual butterfly valves are used to regulate and control the flow of water in agricultural irrigation systems, helping to achieve uniform irrigation of farmland and improve crop yield and quality.
