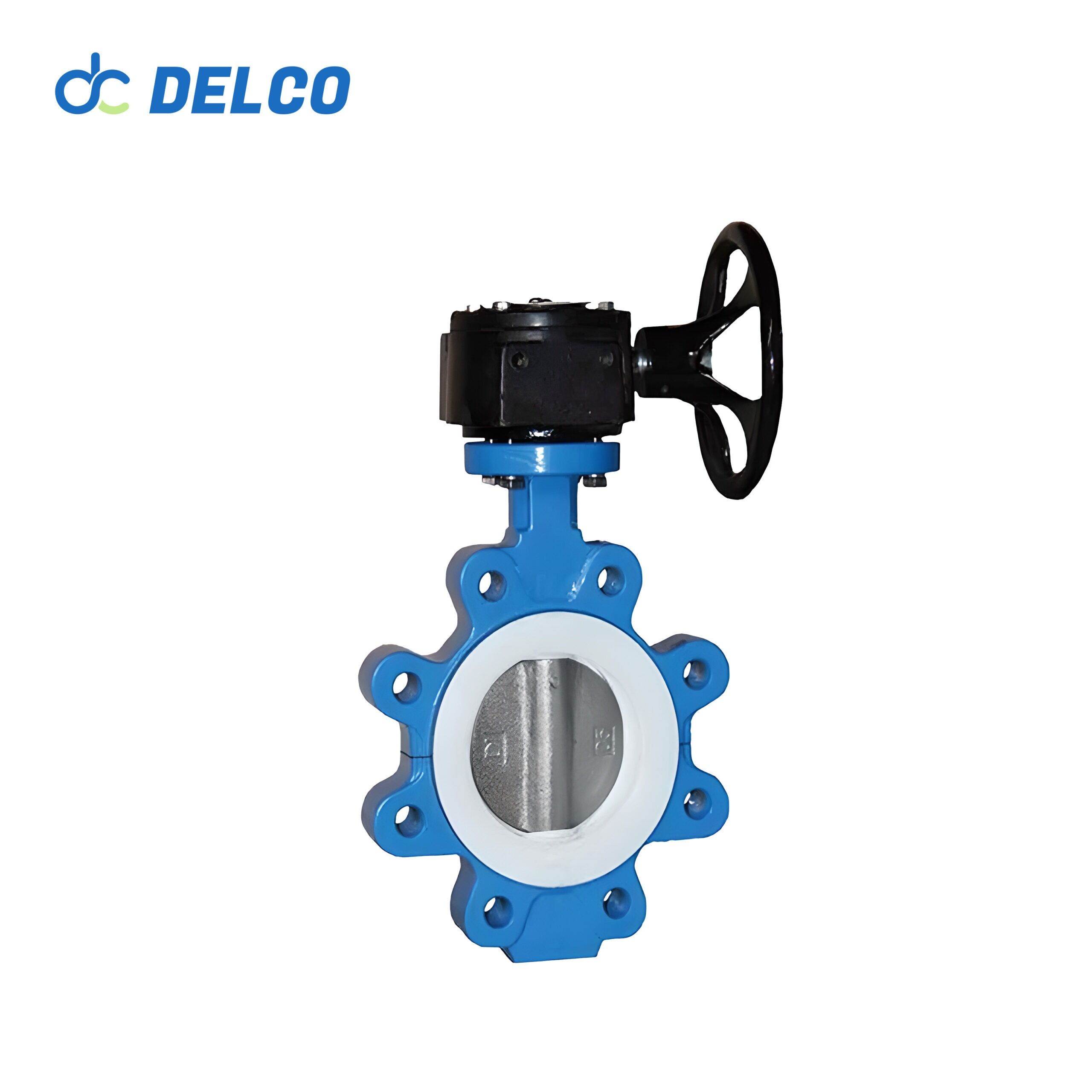

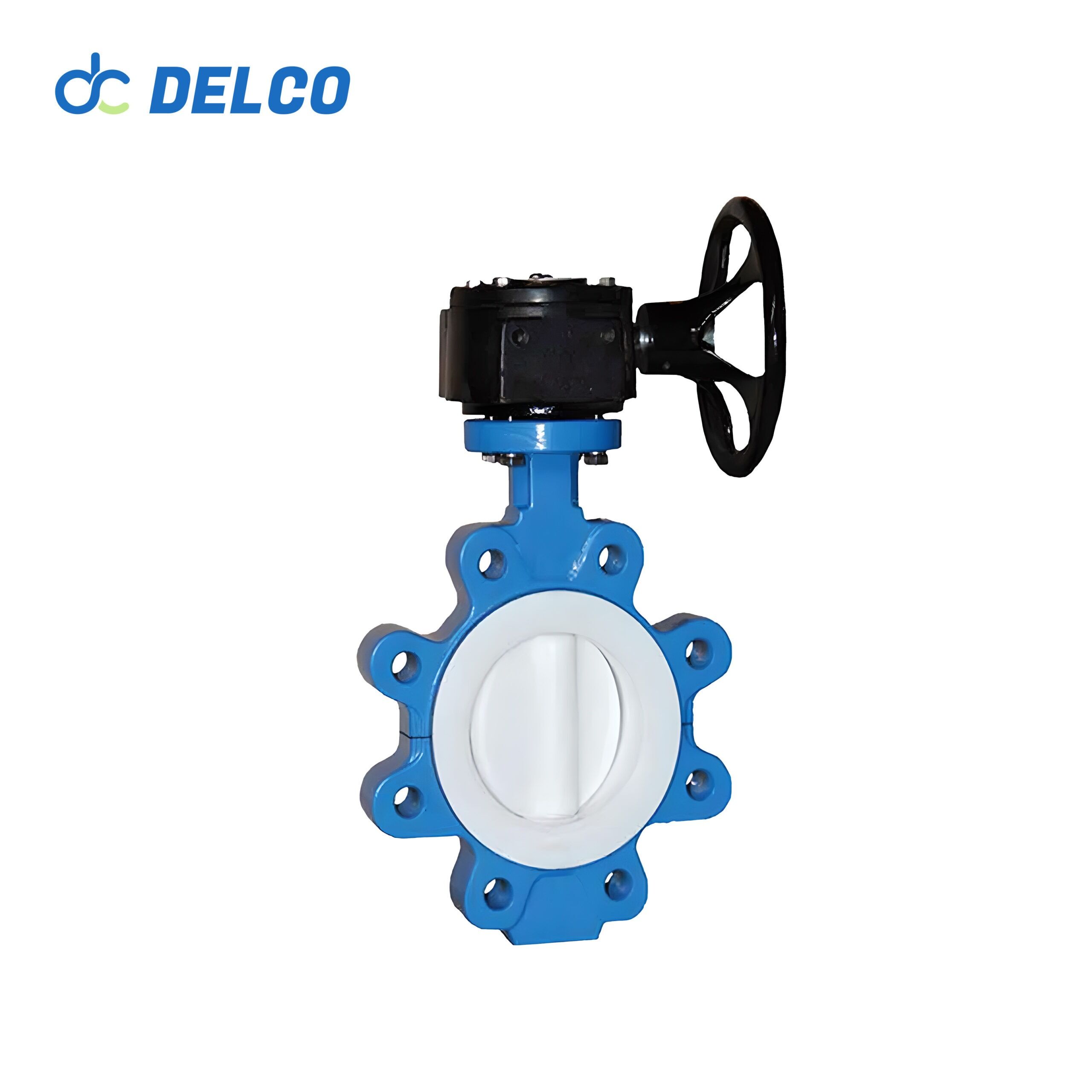

Manual Cast Iron Lug Type Butterfly Valve With Handwheel
Manual Lug Type Butterfly Valve utilizes double head bolts to connect the valve between two pipe flanges, possessing the significant advantages of simple structure, compact size and light weight, with the whole consisting of a few key components. The butterfly valve adopts a centerline design and supports a variety of mounting methods, such as clamping, staggered and lugs, which is ideal for use at the end of the pipeline, a location that usually lacks a second flange to secure the bolts. During installation, the flanges on both sides of the valve are fixed separately by bolts, which avoids the direct action of bolts on the valve body and sealing surfaces, and helps to prolong the service life of the seals.
Our valve products not only have excellent interchangeability and adaptability, which can provide cost-effective solutions in a variety of working conditions, but also each butterfly valve can be used in conjunction with electric or pneumatic actuators, which flexibly meets different driving needs.
Model: LTD71X-Manual Lug Type Butterfly Valve
Size Range:2″ to 16″
Pressure Range: 1.0 to 1.6MPa
Material: Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
Features
- Extend seal life:When the lug butterfly valve is installed, both flanges are fixed independently with bolts, which avoids the extrusion of bolts on the valve body and sealing surface and prolongs the life of seals.
- Suitable for discharge position: The lug design facilitates installation in the discharge position, supports quick disassembly and installation, and improves operation and maintenance efficiency
- Improved sealing performance：Lug butterfly valves use shorter bolts than clamp connections, reducing the risk of leakage due to bolt creep and enhancing sealing performance.
- Excellent fluid control:When the butterfly valve is fully opened, the thickness of the butterfly plate is the only resistance to the flow of medium through the valve body, so there is little pressure drop and the flow control performance is excellent, which is suitable for precise flow adjustment
- Multiple sealing types: Provide two choices of elastic seal and metal seal, elastic seal can be embedded in the valve body or attached to the periphery of the butterfly plate, which is suitable for high sealing requirements; metal seal is suitable for high temperature and high pressure working conditions.
Technical Parameters
| Port Size: | 2″ to 16″ | Material: | Cast Iron, Cast Steel, Ductile Iron, Stainless Steel |
| Pressure: | 1.0 to 1.6MPa | Place of shipment: | Guangdong, China |
| Warranty： | 12 Moths | Function： | Manual / Worm Gear |
| Butterfly Plate ： | Cast steel, Stainless Steel and Special Materials | Suitable Media | Oil, Water, Brine, Lye, Seawater, Nitric Acid, Sulfuric Acid, etc. |
Application
1. Chemical Industry
In the chemical production process, lug butterfly valves are used to regulate and intercept the flow of various corrosive media such as nitric acid, hydrochloric acid, sulfuric acid and lye, to ensure the safety and efficiency of the production process.
2.Petrochemical Industry
Lug butterfly valves are used in the refining and processing of oil and natural gas, regulating and intercepting the flow of oil, steam, air and gas to enhance production efficiency and safety.
3. Smelting
Lug butterfly valves are used in metal smelting to regulate and intercept high temperature steam, SO2 and other gases to ensure the stable operation of the smelting process.
4. Pharmaceutical Industry
Lug butterfly valves are used to regulate and intercept the flow of pure water, salt water, seawater and other media in the pharmaceutical process to ensure the purity and stability of drug production.
5. Food Industry
In food processing, lug butterfly valves are used to regulate and intercept the flow of water, air, CO2 and other media to ensure the safety and hygiene of food production. equipment.
