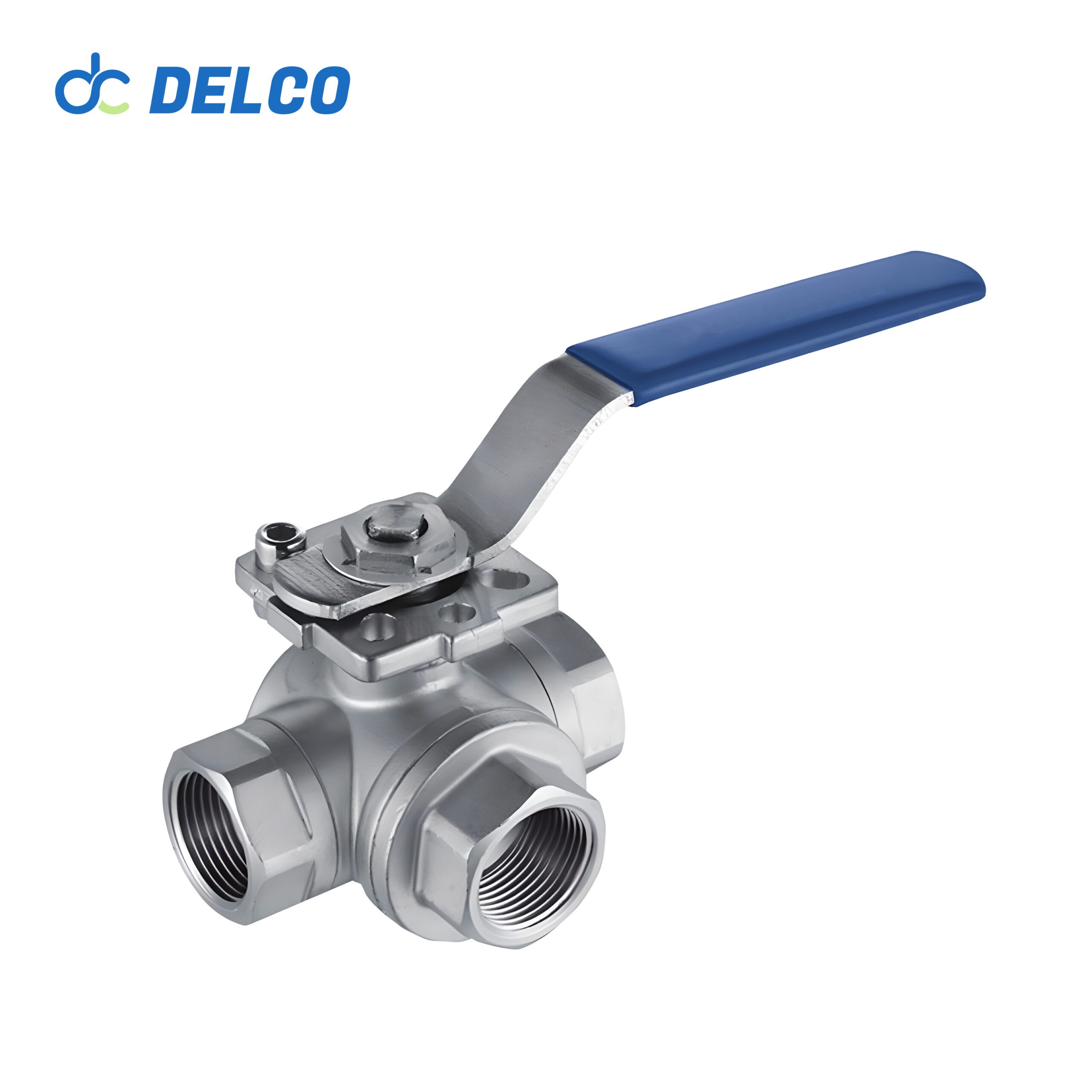

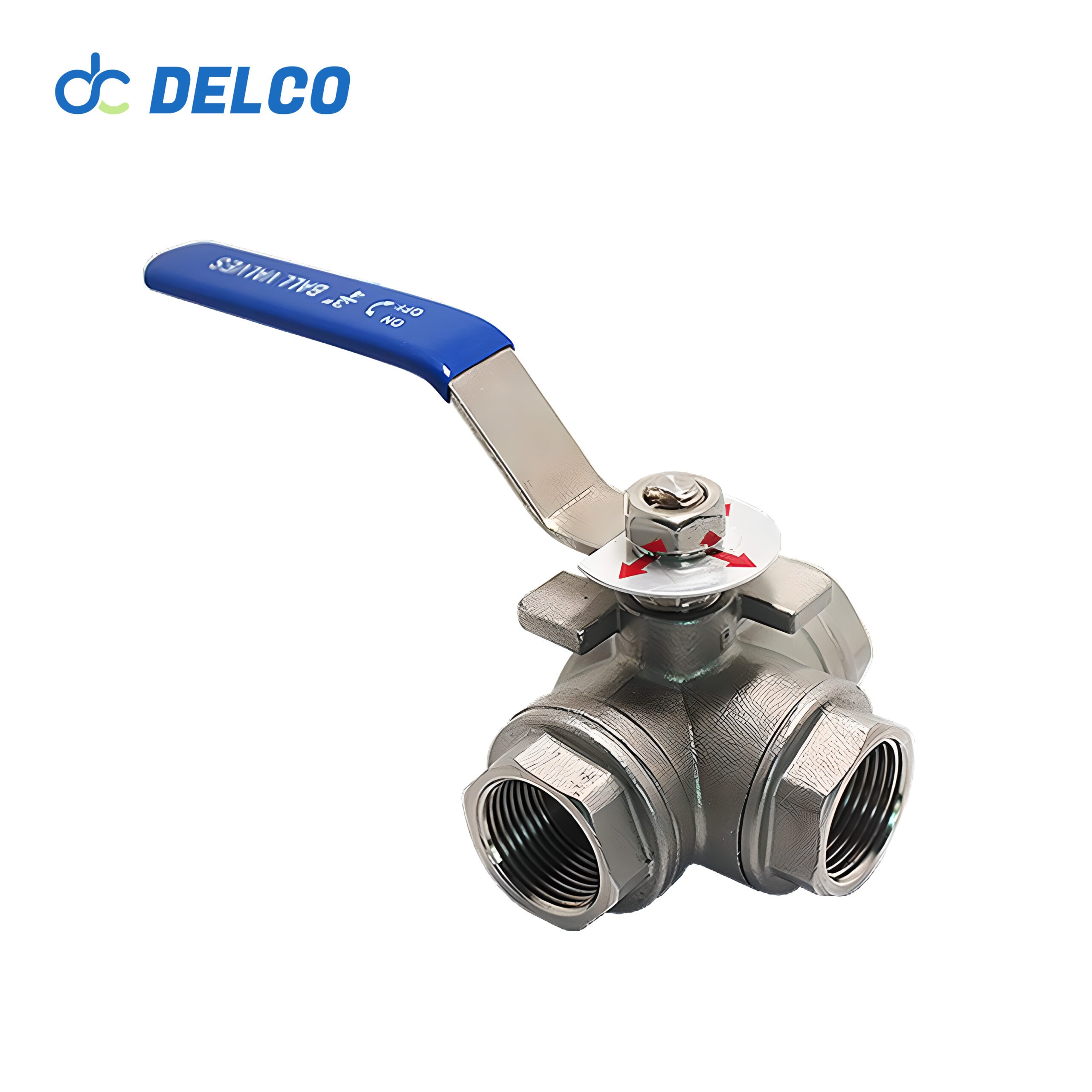

Manual Stainless Steel 3 Way Female Thread Ball Valve
The 3 way threaded ball valve is characterized by its compact structure, attractive appearance, and excellent sealing performance. It can switch the flow direction of the pipeline medium and connect or close two perpendicular channels.
Three-way threaded ball valves are divided into L-type and T-type. The L-type is suitable for switching the flow direction of the medium, enabling the connection of two perpendicular channels. The T-type is suitable for diverting, converging, or switching the flow direction of the medium. This ball valve is durable, capable of reliable operation even after multiple cycles, and can be securely closed even after prolonged periods of inactivity.
It is commonly used in industries such as chemical, petroleum, textile, electric power, food and pharmaceutical, refrigeration, and paper manufacturing.
Model: Manual Flange Ball Valve
Size Range: 1/4″ to 4″
Pressure Range: 1000 WOG
Material:Stainless Steel 304 or Stainless Steel 316
Features
- Compact Structure: Highly efficient design saves space and is suitable for a wide range of industrial applications.
- Excellent Sealing Performance: Ensures an intact seal, prevents leakage and maintains the pressure integrity of the pipework.
- Flow direction switching function: Supports flexible adjustment of fluid flow direction, allowing for flow direction switching or isolation.
- Port Configuration: Provides L-type or T-type port options to meet different piping needs.
- High durability: Its modular design facilitates straightforward disassembly and maintenance, avoiding the need to remove the entire pipeline.
- High Quality : Made of stainless steel to withstand working pressures up to 1000 PSI.
Technical Parameters
Port Size: | 1/4″ to 4″ | Material: | Stainless Steel 304 or Stainless Steel 316 |
Pressure: | PN1.6, 2.5, 4.0, 6.4 MPa | Working Pressure: | 1000 PSI |
Warranty: | 12 Moths | Temperature Range: | -29°C to 150°C |
Pressure Rating: | 1000 WOG | Suitable Media | General Water, Oil, Gas Applications, etc. |
Application
1. Food Industry
Regulates ingredient flow on production lines and facilitates switching between processing steps, enhancing production efficiency and safety.
2.Oil Applications
In crude oil pipelines, manages flow for safe and efficient transportation. During oil refining, oversees flow and pressure to maintain process conditions. In extraction and storage, ensures safety and efficiency in managing oil flow and storage operations.
3. Gas Applications
In natural gas distribution, controls direction and pressure for safe delivery. In gas processing, manages gas flow through various stages of treatment for operational efficiency. In gas storage, facilitates safe and efficient gas storage and transfer for large-volume needs.
4. Water Applications
In residential plumbing, used for flow control and shut-off at fixtures like faucets and toilets. In commercial systems, regulates water flow to meet high-flow and high-pressure requirements. In municipal networks, manages water flow and pressure from treatment plants to urban users, supporting large-scale water management.
