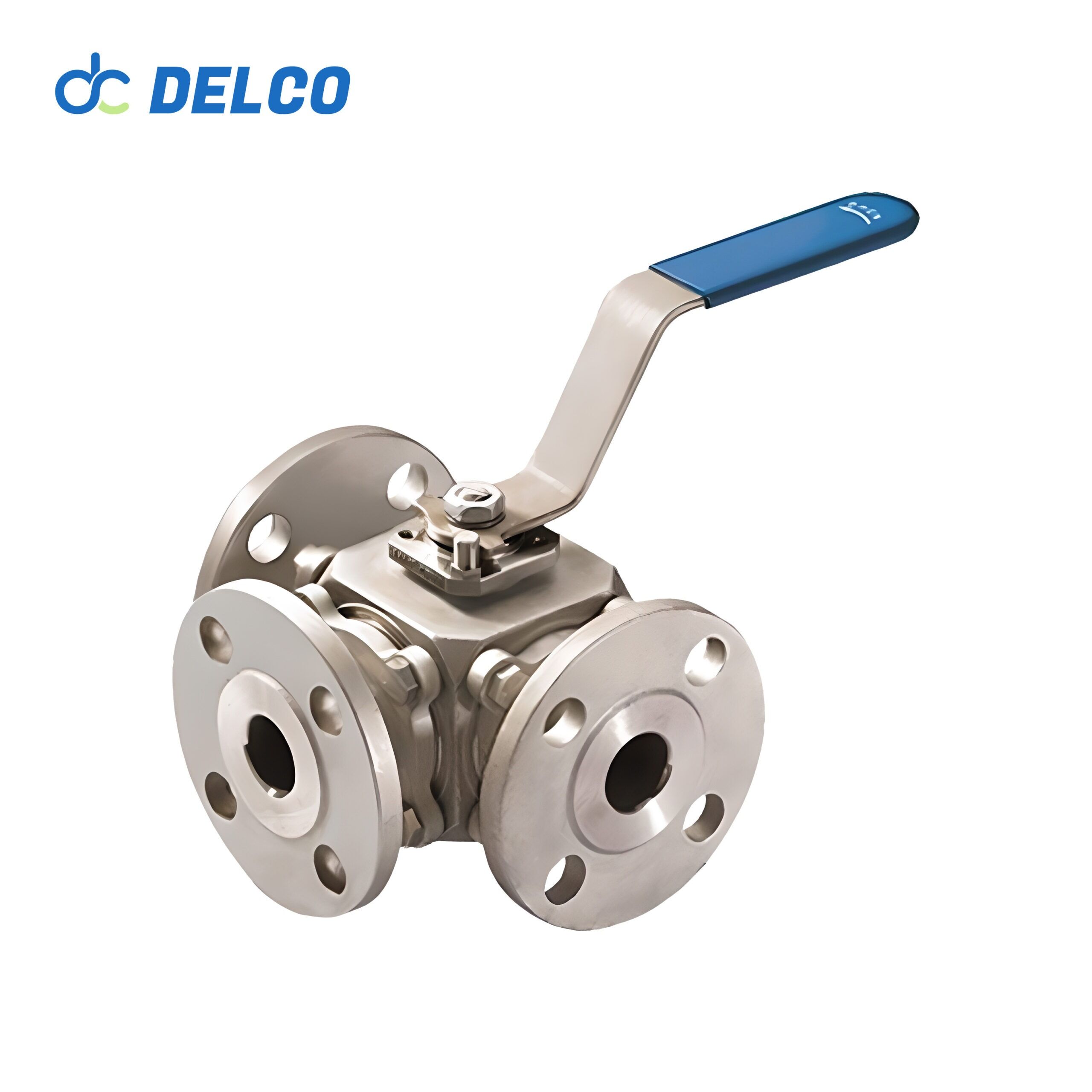

Manual Stainless Steel 3-Way Full Bore Flange Ball Valve
The Manual 3-Way Flange Ball Valve is a versatile industrial valve designed for fluid flow switching, diverting, and merging. Its main components include a high-strength cast steel or stainless steel body, a wear-resistant ball, and a corrosion-resistant PTFE seal, enabling efficient fluid control between two inlets and one outlet through simple manual operation.
This valve comes in two types: L-channel (Q41F-L) and T-channel (Q41F-T). L-type valves connect two vertical channels, ideal for fluid path conversion and flow adjustment, while T-type valves facilitate fluid diversion, merging, and complex flow control between three channels. Both types are designed for ease of operation and maintenance, featuring a modular structure for efficient disassembly, cleaning, and long-term durability.
This valve meets diverse fluid control needs from routine operations to complex engineering tasks. Applications include water treatment, energy and petrochemical industries, chemical processing, food production, pharmaceutical manufacturing, and high-pressure systems.
Model: Manual Flange Ball Valve
Size Range: 1/2″ to 16″
Pressure Range: PN1.6, 2.5, 4.0, 6.4 MPa
Material:Stainless Steel 304 or Stainless Steel 316
Features
- Compact Structure: This valve features a compact design that operates efficiently in confined spaces. Its sleek, modern appearance enhances both aesthetics and functionality.
- Excellent Sealing Performance: Equipped with durable PTFE seals, this valve ensures long-term leak-proof operation under high-pressure and high-temperature conditions.
- High Flow Capacity: The full-bore design minimizes flow resistance, allowing for efficient and uninterrupted fluid transfer.
- Low Flow Resistance: The valve’s streamlined construction maintains high flow efficiency with minimal obstruction.
- Easy Maintenance: Its modular design facilitates straightforward disassembly and maintenance, avoiding the need to remove the entire pipeline.
- Versatile Fluid Control:Manual 3-way flange ball valves offer flexible solutions for flow switching, diverting, and combining, making them ideal for complex industrial applications.
Technical Parameters
Port Size: | 1/2″ to 16″ | Body Materials: | Stainless Steel |
Pressure: | PN1.6, 2.5, 4.0, 6.4 MPa | End Connection: | Flange |
Warranty: | 12 Moths | Working Temperature: | PTFE≤180°C, Metal Seated≤350°C |
Pressure Rating: | 150LB ( 300LB and 600LB is optional) | Suitable Media | Water, Oil, Gas, Air, etc |
Application
1. Water Treatment Industry
Used in municipal water supply systems, industrial cooling processes, and building pipelines to ensure stable and controllable water flow.
2. Energy and Petrochemical Industry
Ideal for transporting steam, oil, and gas. Designed to handle high temperatures and pressures, making it suitable for various media.
3. Chemical Industry
Perfect for corrosive chemicals like nitric acid and acetic acid, providing excellent corrosion resistance.
4. Food Industry
Essential in food production and beverage processing, adhering to stringent hygiene standards to ensure fluid safety and purity.
5. Pharmaceutical Industry
Applicable in pharmaceutical manufacturing, maintaining sanitary conditions and ensuring fluid quality.
6. High-Pressure Systems
Built for high-pressure pipelines and equipment, meeting the demands of high-pressure fluid transport.
