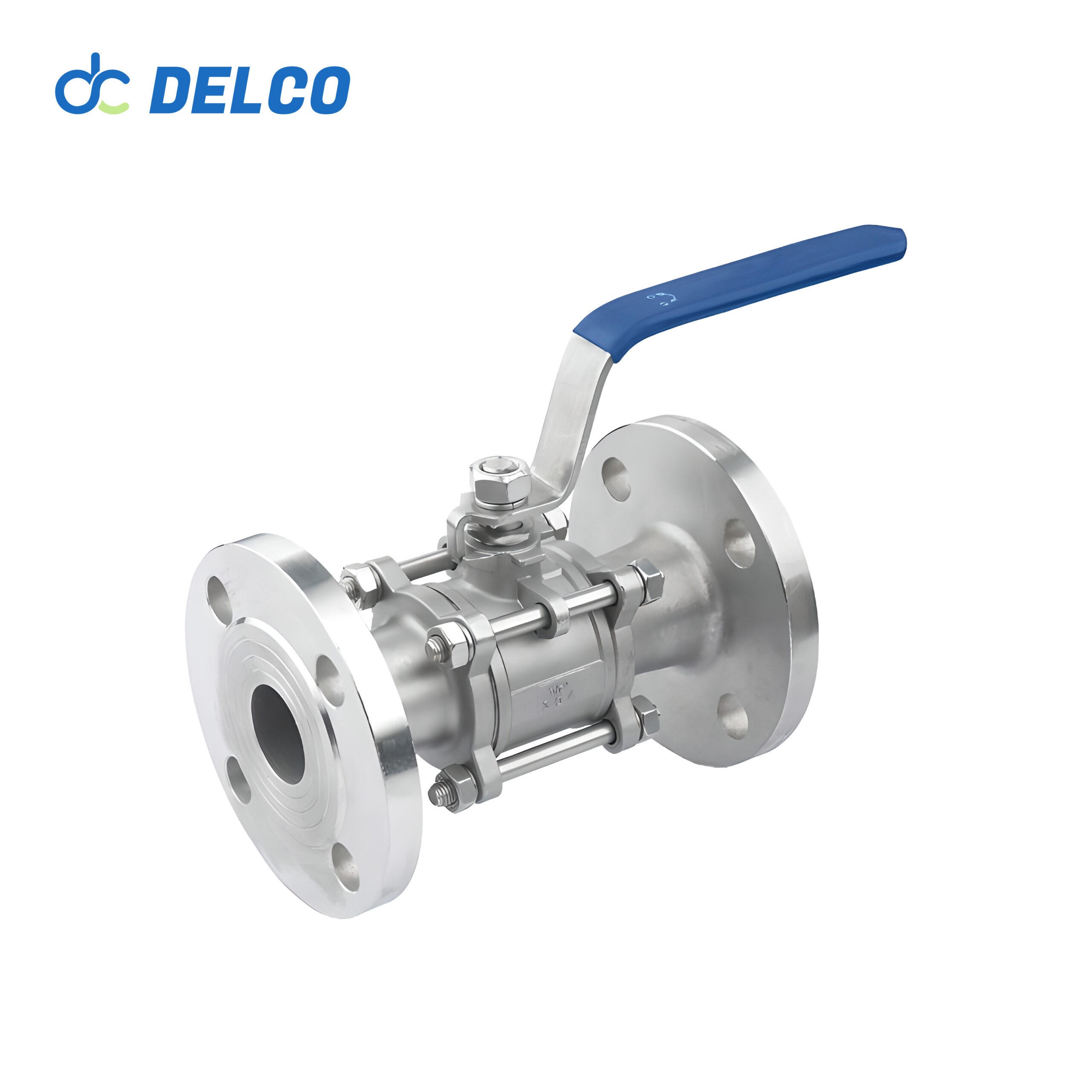

Manual Stainless Steel 3PC Flange Ball Valve with Handle
The manual 3-piece flange ball valve consists of three main components: a valve body and two end caps. Its compact design, attractive appearance, and low flow resistance make it highly favored. The valve features a perforated ball structure that allows fluid regulation with a simple 90° rotation of the valve stem, ensuring efficient control.
This valve type offers minimal flow resistance, especially with a full bore design. When fully open, the diameters of the ball passage, valve body passage, and connecting pipe align to form an unobstructed channel, enabling efficient flow.
Thanks to its quick actuation, the 3-piece flange ball valve is both compact and lightweight, facilitating easy installation and maintenance. It is suitable for various media, including water, steam, oil, nitric acid, and acetic acid. The valve is particularly well-suited for high-pressure systems or applications requiring frequent maintenance and cleaning. Its ease of maintenance and cleaning makes it ideal for complex conditions and high-standard environments, especially in industries with stringent hygiene requirements such as food processing and pharmaceuticals.
Model: Manual Flange Ball Valve
Size Range: 1/2″ to 12″
Pressure Range: PN1.6, 2.5, 4.0, 6.4 MPa
Material:Stainless Steel 304 or Stainless Steel 316
Features
- Compact design: The compact design enables efficient operation in confined spaces, while its fine appearance enhances aesthetics and simplifies installation and maintenance.
- Elegant Appearance: The valve not only excels in functionality but also features an elegant design that adds a modern touch to any pipeline system. Its smooth surface and fine craftsmanship enhance the overall visual appeal while maintaining practical functionality.
- High Flow Capacity: The full-bore design aligns the ball passage, valve body passage, and pipe diameter to create an unobstructed flow path, significantly increasing fluid flow capacity.
- Low Flow Resistance: The full-bore design minimizes flow resistance, ensuring efficient fluid flow and making it ideal for applications requiring low-flow resistance.
- Easy Maintenance : The modular design makes maintenance and part replacement straightforward, allowing for quick and efficient servicing without the need to dismantle the entire pipeline.
- User-Friendly: Its lightweight structure and user-friendly design make installation simple and maintenance quick, enhancing overall ease of use.
Technical Parameters
Port Size: | 1/2″ to 12″ | Body Materials: | Stainless Steel |
Pressure: | 1.6MPa to 6.4MPa |
End Connection: | Flange |
Warranty: | 12 Moths | Working Temperature: | PTFE≤180°C, Metal Seated≤350°C |
Pressure Rating: | 300LB ( 150LB and 600LB is optional) | Optional Actuation | Pneumatic Actuated or Electric Actuated |
Application
1. Water Treatment Industry
Suitable for municipal water supply, industrial water cooling systems, and building water supply lines to ensure stable and controllable water flow.
2. Energy and Petrochemical Industry
Ideal for transporting steam and oil, designed for high temperature and high pressure conditions, and capable of handling a variety of media.
3. Chemical Industry
Ideal for handling chemical media like nitric and acetic acid, offering excellent corrosion resistance.
4. Food Industry
Perfect for food production and beverage processing, meeting stringent hygienic standards to ensure fluid safety and purity.
5. Pharmaceutical Industry
Designed for pharmaceutical manufacturing processes, ensuring hygienic conditions and maintaining high fluid quality.
6. High-Pressure Systems
Suitable for high-pressure pipelines and equipment, designed to meet the demands of high-pressure fluid transport.
7. Maintenance and Cleaning
Features a design that allows for easy disassembly, maintenance, and cleaning, ideal for environments requiring frequent upkeep.
