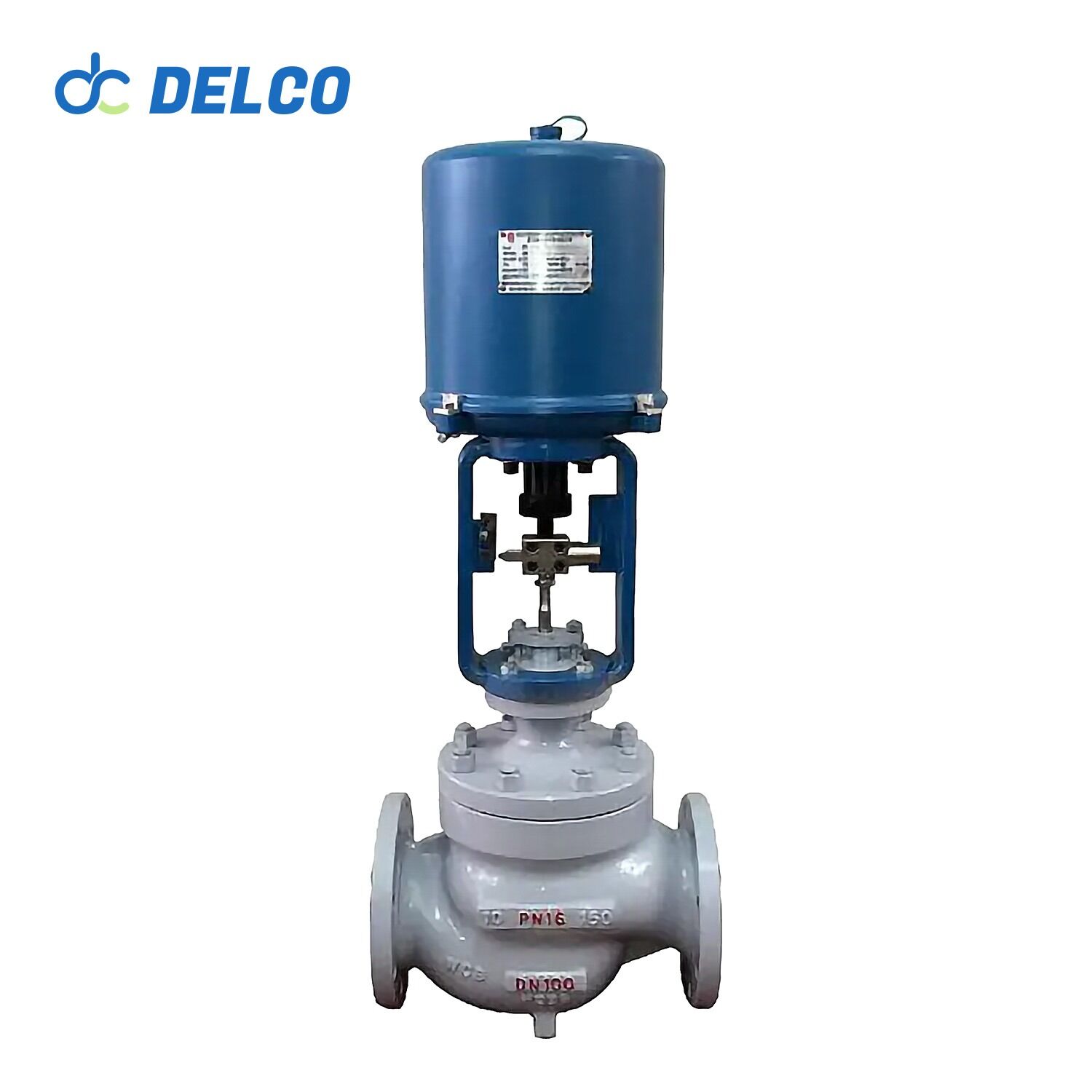

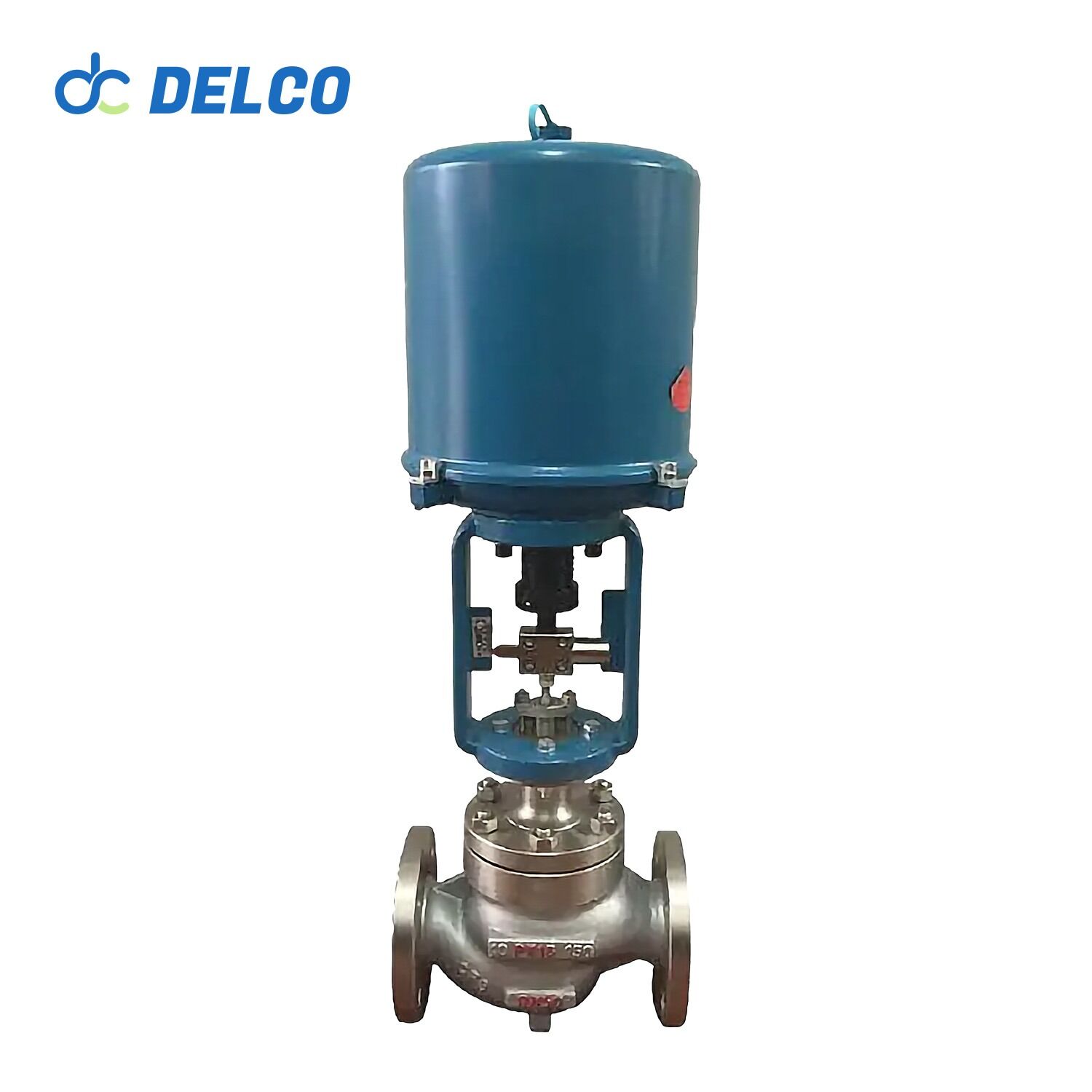

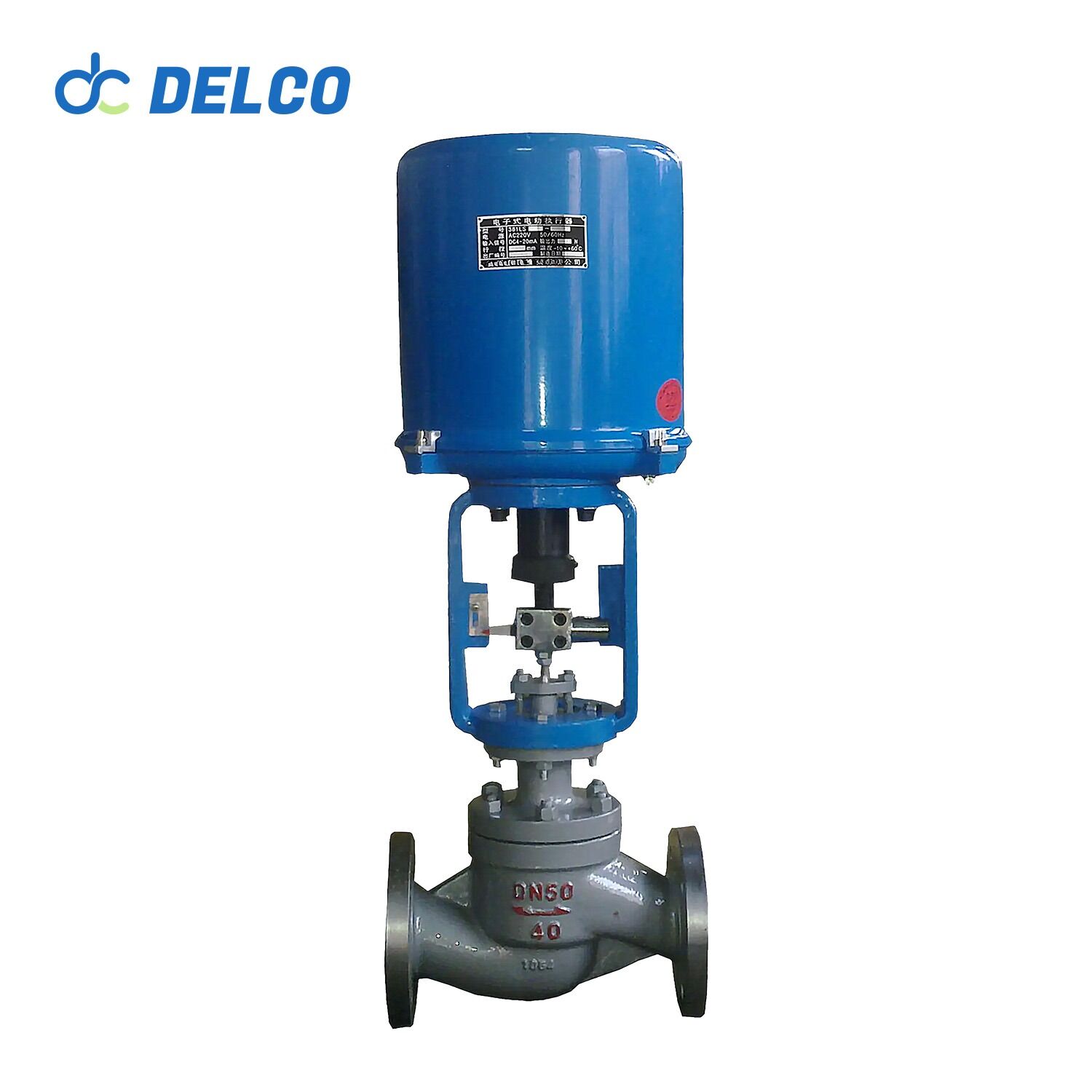

DELCO Motorized/Electric Control Valves-ZDLP/ZDLM
The remote operation capability of motorized control valves allows for seamless integration into automated control systems, enabling operators to monitor and adjust valve settings from a centralized location.
The electric single-seat ( sleeve ) adjustment valve is small in size and excellent in performance, and is a high-quality base type electric control valve product. It is suitable for production process control systems for general fluid media process conditions. The single seat valve has reliable operating characteristics, small seat leakage, coarse flow characteristics, wide adjustable range, compact structure and smooth flow path. This series of products has good performance and stable operation , and can meet the user’s control needs in a wide range of applications.
Model: Electric control valve
Size Range: 1/2” to 12”
Pressure Range: 1.6 to 6.4MPa
Material: WCB or Stainless Steel 304/316
Description
Motorized/Electric Control Valves is a valve that regulates fluid flow using an electric actuator. This valve employs the rotary or linear motion of the electric actuator to achieve precise control over the fluid medium, allowing for remote operation. Widely used in automation systems such as HVAC and industrial process control, it boasts features such as quick response and high accuracy, adapting to varying pressure, temperature, and flow conditions.
Typically integrated with control systems, motorized control valves offer reliable remote monitoring and operation. Playing a crucial role in improving system efficiency and ensuring precise flow control, motorized control valves are an indispensable component in modern automation applications.
This product consists of 3810L series electronic electric actuator and a small single-seat ( sleeve ) regulating valve. The actuator has an integrated structure with built-in electronic controller modules, eliminating the need for additional servo amplifiers . It has high precision and is easy to install The characteristics of the sleeve valve are as follows:
Adopting balanced valve core, the unbalanced force is small, the pressure difference is allowed to be large, and the operation is stable.
The large guide surface of the spool improves the oscillation caused by eddy currents and shocks and reduces damage.
The noise of the ordinary single and double seat valve regulating valve is reduced by about 10dB Simple structure, convenient assembly, and disassembly.
Motorized/Electric Actuator Globe Control Valve Overview:
| Type | Usage | Power supply | Control signal | Action to close | Action to open |
| Motorized/Electric actuator, intelligent integrated | regulating | 220VAC ±10 % 50Hz, 380VAC ±10 % 50Hz | 4-20mA.DC, 1~5V DC | Input signal increase, valve stem descend, valve close | Input signal increase, valve stem ascend, valve open |
| Lag | Linear type | Operating temperature | Intrinsic flow characteristics | ||
| ≤0.8 %FS | ≤1 %FS | WCB: -40℃～+250℃, -40℃~+450℃ | Stainless Steel: -40℃～+250℃, -60℃～+450℃ | Straight line, equal percentage(inherent adjustable ratio 50:1) | |
| Motorized/Electric Control Valves indicators technical parameter | |||||
| Basic error | Backlash | Deadzone | Leakage | Rated flow characteristics | Intrinsic flow characteristics |
| ±1.0 % | 1% | 1% | 5*103 valve rated capacity | ±10% | slope±30% |
| Motorized/Electric indicators control valve technical parameter | |||||
| Basic error | Backlash | Deadzone | Leakage | Rated flow characteristics | Intrinsic flow characteristics |
| ±2.5 % | 1.50% | 3% | 1*10^(-4) valve rated capacity | ±10% | slope±30% |
Industries and Applications of Control Valves
Control valve applications span across numerous industries, including:
Oil and gas: Controlling flow rates, pressure, and temperature in pipelines, refining processes, and chemical injection systems.
Chemical processing: Regulating the flow of corrosive, abrasive, or high-temperature fluids in chemical reactions and processes.
Power generation: Ensuring the smooth operation of power plants by controlling steam, water, and gas flow in boilers and turbines.
Water and wastewater treatment: Managing flow and pressure in pumping stations, distribution networks, and treatment processes.
Control Valves Maintenance
Inspect the valve regularly, looking for signs of wear, damage, or leaks.
If any parts are damaged or worn, replace them with high-quality replacements from the manufacturer.
Lubricate the valve according to the manufacturer’s instructions using the recommended type and amount of lubricant.
Clean the valve and its components regularly to remove dirt, debris, and other contaminants that could affect performance or damage the valve.
Test the valve regularly to ensure that it is operating properly and within specifications.
Record all maintenance activities for future reference and compliance with industry regulations.
It is also important to have trained personnel to perform these installation and maintenance tasks to ensure they are done safely and correctly. Additionally, the manufacturer’s specific installation and maintenance instructions should be followed, as different types of control valves may have unique requirements. By following these step-by-step instructions, you can ensure that your control valves perform optimally and have a long lifespan.
