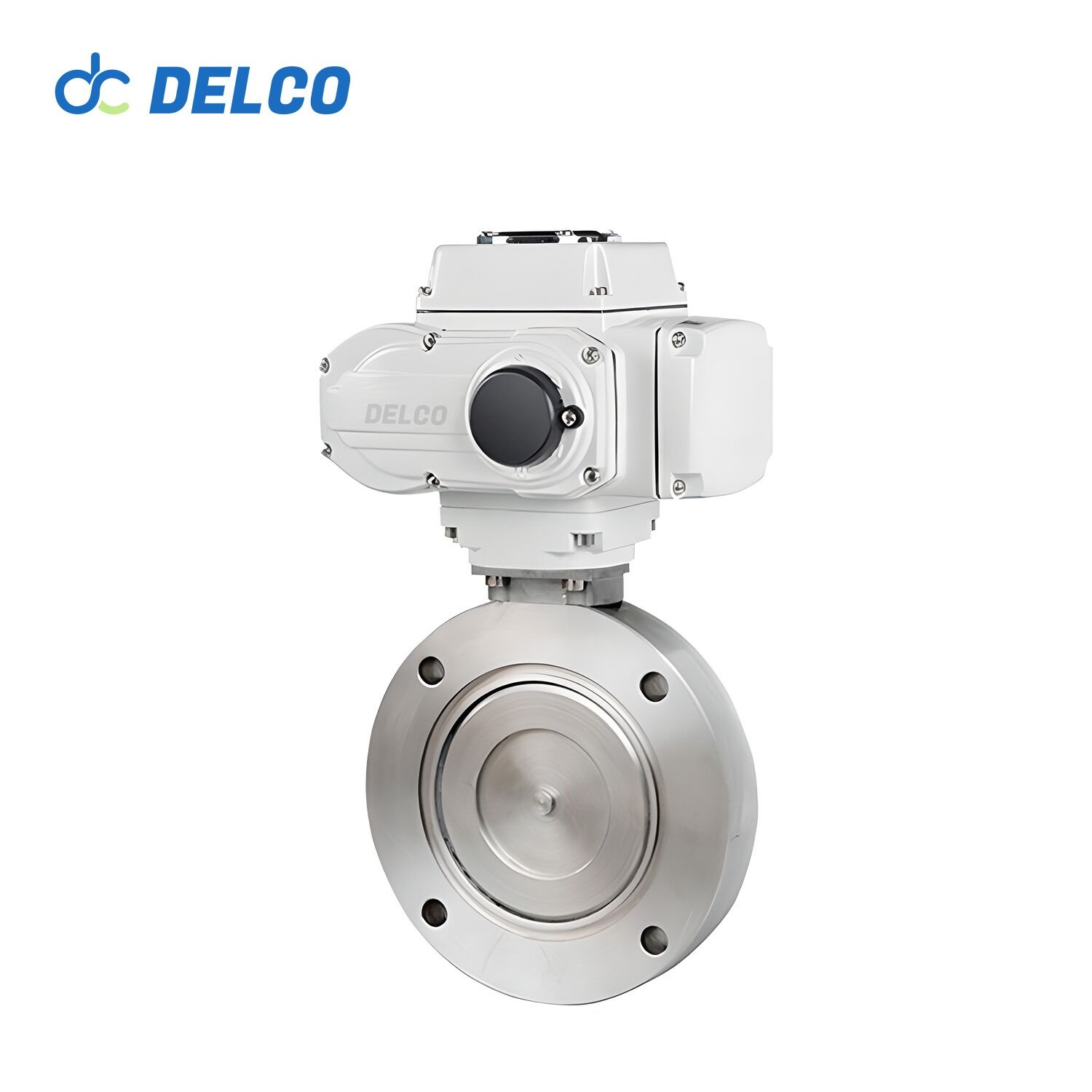

Motorized Stainless Steel Vacuum Butterfly Valves-DK56-GID
A vacuum butterfly valve is designed to efficiently control the flow of air and non-corrosive gases, offering high flow conductivity for quickly turning on or cutting off vacuum airflow. Alongside vacuum ball valves, they are common types of valves used in vacuum systems. These valves are suitable for applications where precision control is essential. For automated control, optional devices such as solenoid valves and position indicators can be integrated to provide seamless and efficient operation.
Motorized vacuum butterfly valves find application in a myriad of industries and processes, including:
- Semiconductor manufacturing: for vacuum deposition processes and wafer handling systems.
- Pharmaceutical and biotechnology: for vacuum drying, freeze-drying, and distillation processes.
- Aerospace: for vacuum testing chambers and propulsion systems.
- Research laboratories: for experimental setups and vacuum systems used in scientific research.
Model: Vacuum Butterfly Valves
Size Range: 1-1/4” to 12”
Pressure Range: 0.1MPa to 0.6MPa
Material: Stainless Steel 304/316
Description
In the realm of vacuum systems, precision control over airflow is paramount. Enter motorized vacuum butterfly valves, a technological marvel designed to meet the exacting demands of modern vacuum applications. From industrial processes to scientific research, these valves play a crucial role in ensuring optimal performance, efficiency, and reliability.
Motorized vacuum butterfly valves represent a sophisticated solution for regulating airflow in vacuum systems. They are specifically engineered to provide high flow conductivity, enabling rapid turn-on or cut-off of vacuum airflow with unparalleled precision. These valves are meticulously crafted to meet the rigorous requirements of diverse industries where vacuum technology is employed.
Motorized Vacuum Butterfly Valve technical Parameter
Body | Valve components | ||
Size Range | DN32-DN300 | Seating Material | NBR, VITON |
Body material | Stainless Steel | Disc Material | Stainless Steel |
End Connection | Flange | Stem Material | Stainless Steel |
Operating Pressure | Vacuum (0.1MPa to 0.6MPa) | Applicable media | Pure Air Noncorrosive Gases |
Features and Benefits
a. High Flow Conductivity: Motorized vacuum butterfly valves excel in facilitating the smooth and efficient flow of air and non-corrosive gases within vacuum systems, optimizing performance and productivity.
b. Precise Control: With their innovative design and advanced motorization technology, these valves offer precise control over airflow, allowing users to fine-tune system parameters with exceptional accuracy.
c. Enhanced Efficiency: By automating the control process, motorized vacuum butterfly valves enhance overall system efficiency, reducing manual intervention and minimizing downtime.
d. Reliable Performance: Built to withstand the rigors of demanding industrial environments, these valves boast robust construction and dependable operation, ensuring long-term reliability and performance consistency.
e. Versatile Applications: Motorized vacuum butterfly valves find application across a wide range of industries, including semiconductor manufacturing, pharmaceuticals, aerospace, and more, where vacuum technology is integral to operations.
f. Integration Options: To further streamline system control, these valves can be seamlessly integrated with optional devices such as solenoid valves and position indicators, enabling automated operation and remote monitoring capabilities.
In conclusion, motorized vacuum butterfly valves represent a pinnacle of engineering excellence, providing unparalleled control and reliability in vacuum system applications. With their high flow conductivity, precise control capabilities, and robust construction, these valves empower industries to achieve new heights of efficiency, productivity, and innovation in their operations. Whether in semiconductor manufacturing, pharmaceuticals, aerospace, or research, motorized vacuum butterfly valves stand as indispensable components in the quest for technological advancement and progress.
Design and Construction
Motorized vacuum butterfly valves feature a compact and streamlined design, optimized for space efficiency and ease of installation. They typically consist of a butterfly-shaped disc mounted on a shaft, which rotates within a sealing ring to regulate airflow. The motorized actuator provides the necessary torque to precisely position the disc, allowing for seamless control over flow rates.
Constructed from high-quality materials such as stainless steel or aluminum, these valves are engineered to withstand harsh operating conditions, including high vacuum levels and fluctuating temperatures. Additionally, they are equipped with corrosion-resistant components to ensure long-term durability and reliability.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Product Model: | DK56-GID | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
