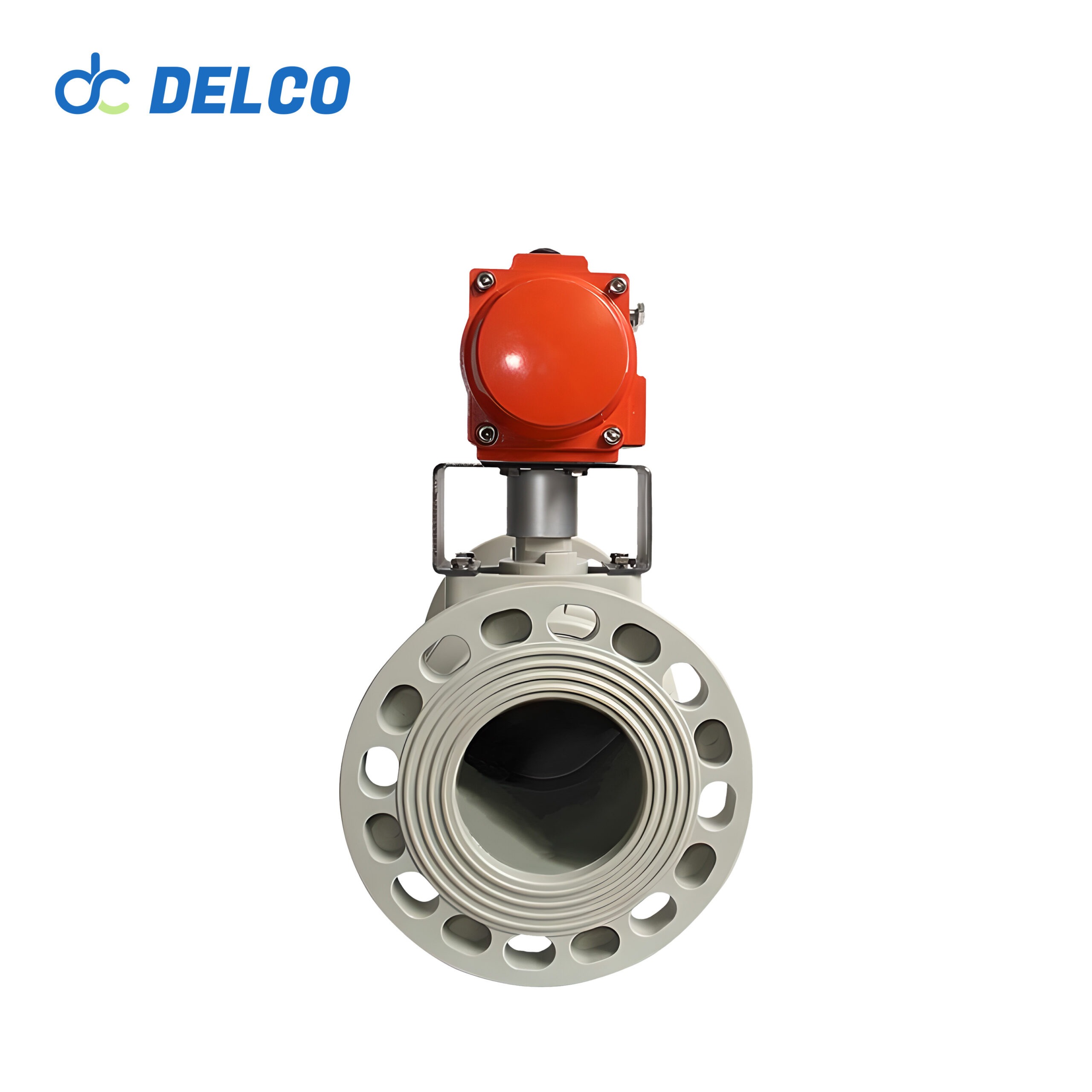

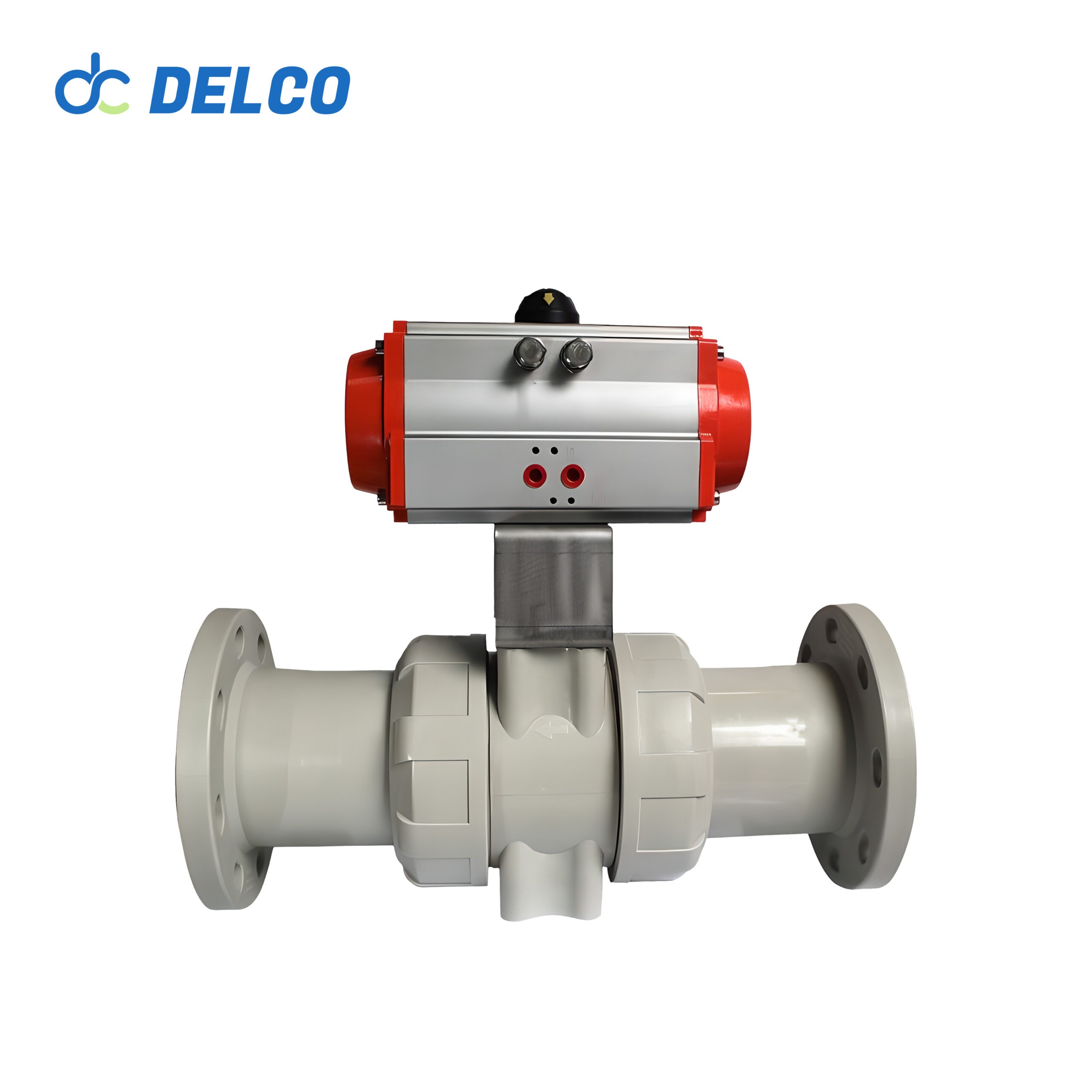

DELCO Pneumatic 2-way PVC Flange Ball Valves-DK66-PVF
The Pneumatic 2-way PVC flange ball valves provide versatile fluid control options with configurations for 2-way or 3-way ports. They feature a double-acting standard control mode, with the option for single-acting functionality. These valves are constructed with UPVC or PVC bodies, with optional CPVC construction available. Operating effectively with input air pressures ranging from 2.5 to 8 bar, they have a minimum 1/2 inch union connection, with optional inside female threads. Equipped with default EPPDM seats, these valves are commonly used for applications involving air, hot water, cold water, and low-pressure steam.
DELCO offers optimized profit plans for your flow control projects. Choose from our range of Pneumatic Actuated Valves, including pneumatic actuated ball valves, knife gate valves, diaphragm control valves, globe valves, and various pneumatic components, to meet your specific needs.
Model: PVC flange ball valves
Size Range: 1/2″ to 4″
Pressure Range: 1.0MPa to 1.6MPa
Material: PVC, CPVC, UPVC, PVDF
What Is a 2-way PVC flange ball valve?
The DK66-PVF Series Double Union Pneumatic UPVC Ball Valve is part of the pneumatic ball valve range, featuring an ultra-short flange distance design developed with Italian technology. The ball core channel comes in rectangular, V-shaped, and O-shaped configurations. With its compact structure, small volume, light weight, and easy installation, this valve finds widespread use in petroleum, chemical, metallurgy, power station, and light industry sectors. It automatically adjusts or shuts off oil, water, gas, pulp, or fibrous fluid flow.
Benefits of 2-way PVC flange ball valves
● Features: Long Service Life, Eco-Friendly, Easy Installation, etc
● Actuator Type: Spring Return(Single Acting) and Double Acting
● Valve Type: 2-Ways &3-Ways Air Actuator Ball Valve (T Type and L Type)
● Rotation: Quarter-turn
● Pneumatic Valve alignment and support in any position.
● Connection Type: Double Union
● Suitable Medium: Water, Oil, Air, Gas, etc
2-way PVC flange ball valves:
Body | Size range | Body material | End connection | Operating pressure | Structure |
DN15~DN100 | Plastic UPVC | Flange | 1.0,1.6MPa | Floating ball core | |
Valve components | Sealing material | Core material | Stem material | Applicable media | |
EPDM | Plastic UPVC | SS304,SS410 | Water, oil, Gas, Liquid, steam, powder, anti-corrosive base |
Features of 2-way PVC flange ball valves
Port Configurations: Available in 2-way port configurations, allowing for efficient control of fluid flow in various industrial processes.
Construction Material: Constructed with PVC or UPVC bodies, these valves offer excellent resistance to corrosion, making them suitable for use in harsh environments.
Control Modes: Equipped with a double-acting standard control mode, with the option for single-acting functionality, providing flexibility in operation to meet different process requirements.
Pressure Range: Capable of operating effectively with input air pressures ranging from 2.5 to 8 bar, ensuring adaptability to a wide range of pressure conditions.
Connection Options: Featuring a minimum 1/2 inch union connection and optional inside female threads, these valves offer easy installation and integration into existing piping systems.
Seat Material: Equipped with default EPPDM seats, these valves are suitable for handling air, hot water, cold water, and low-pressure steam applications, offering versatility in fluid handling.
Technical Parameters of 2-way PVC flange ball valves
Air source processor: The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.
Pneumatic solenoid valve: The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.

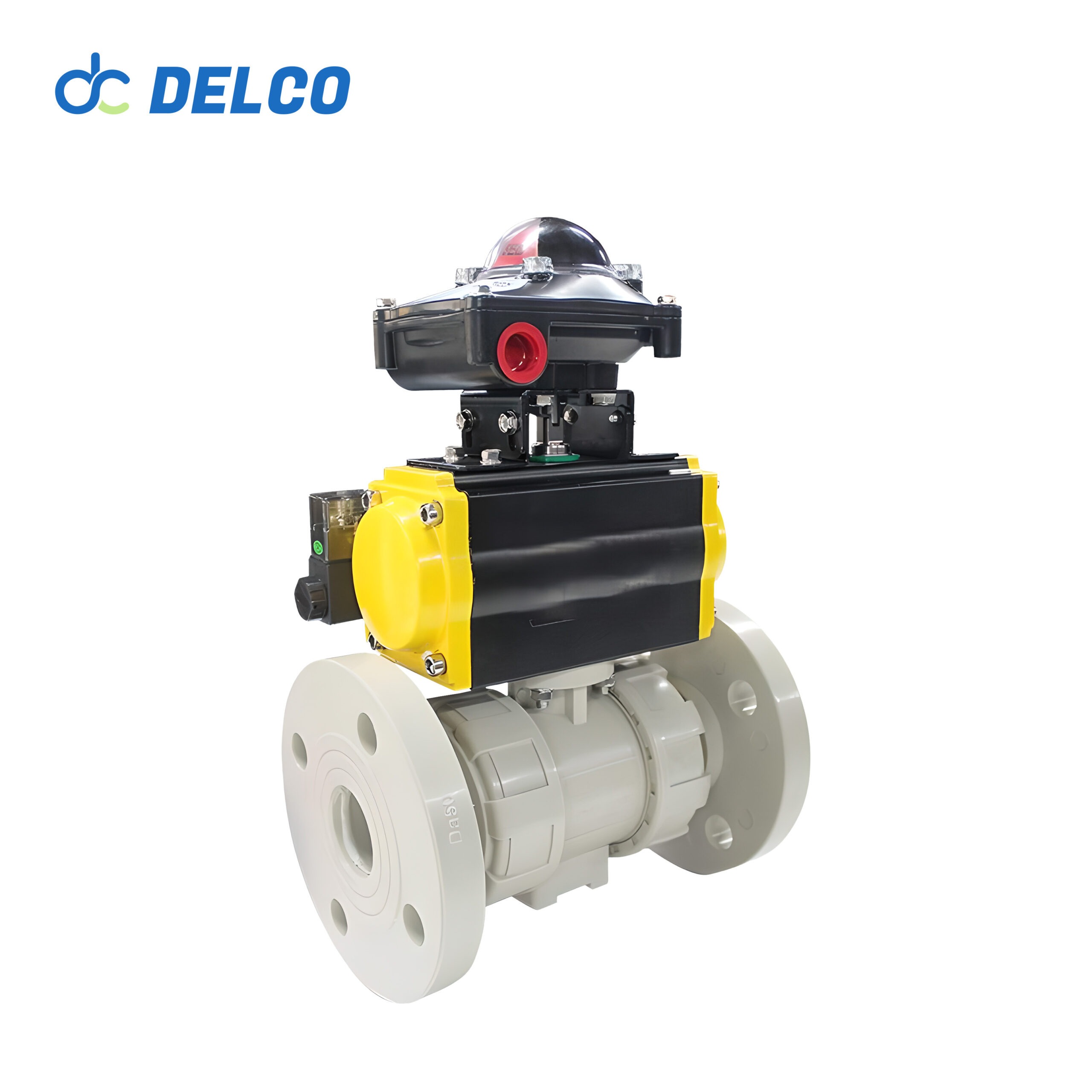

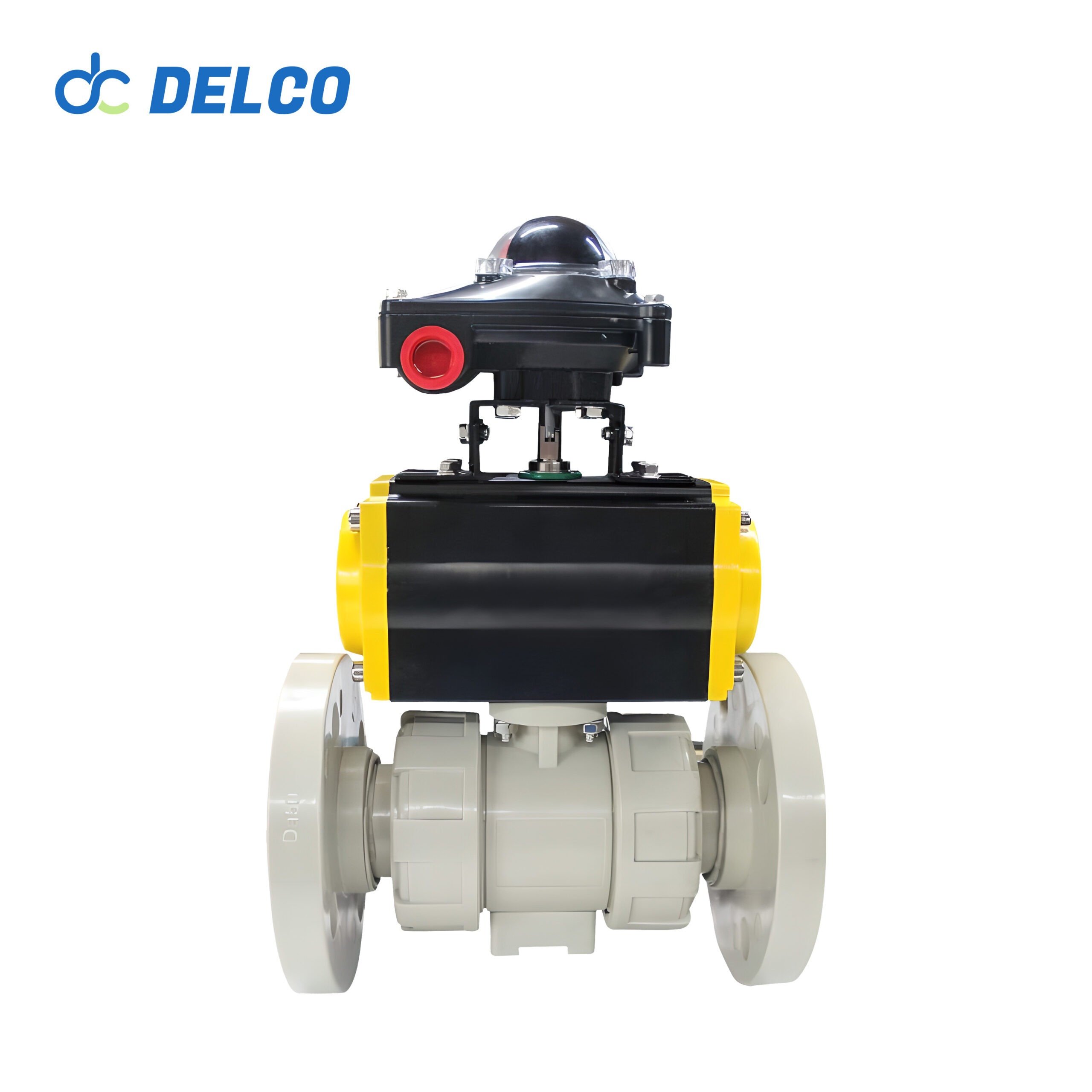

Limit switch: The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.
Valve positioner: The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.
Manual device: The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
