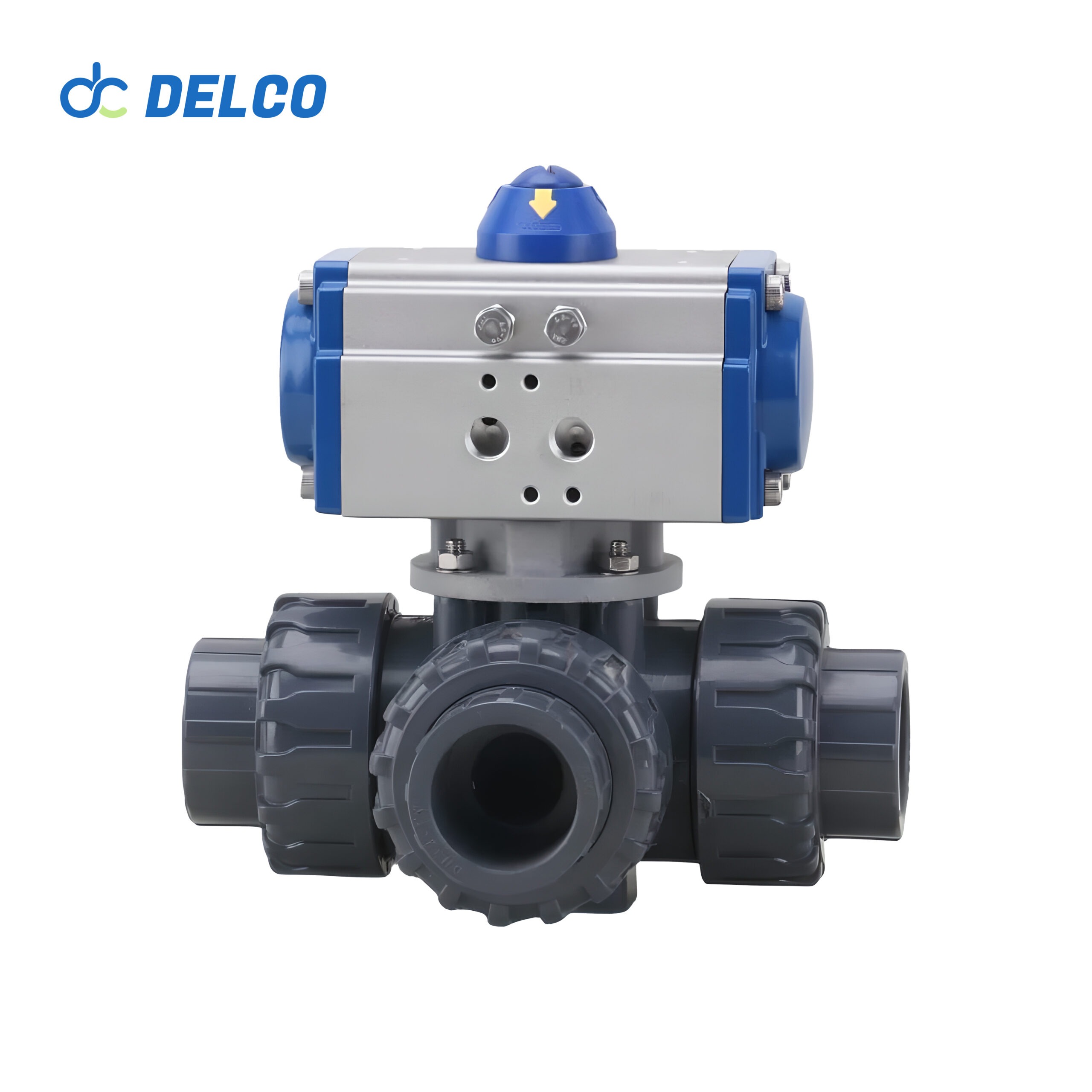

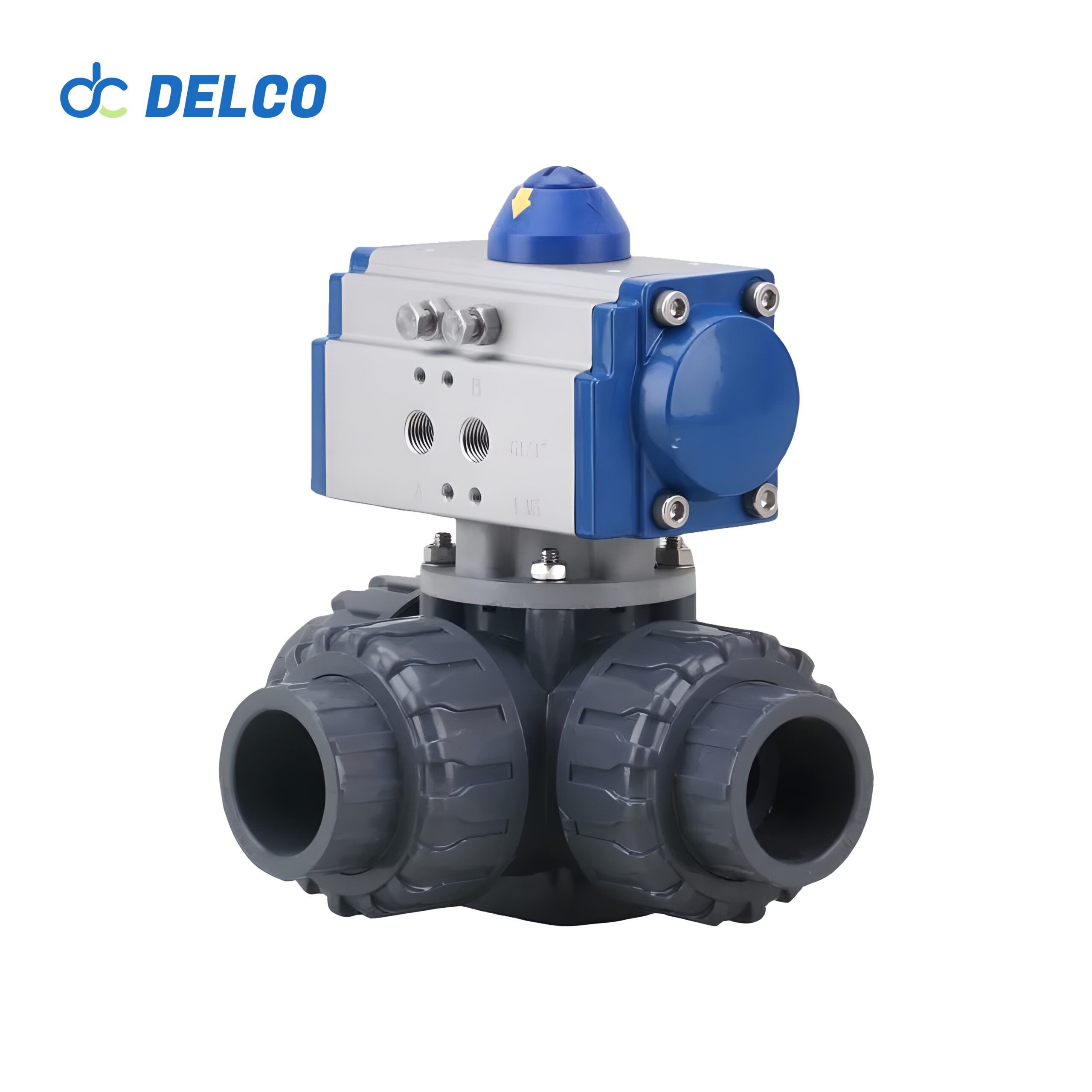

PVC 3 Way Pneumatic Actuator Ball Valves-DK66-3PL

PVC 3-way pneumatic actuator ball valves are crucial components in fluid control systems, engineered to regulate fluid flow along three distinct pathways. Crafted from robust PVC material, these valves boast exceptional corrosion resistance, rendering them suitable for applications handling aggressive fluids or operating in corrosive environments. Enhanced with a pneumatic actuator, they ensure efficient and dependable operation, enabling precise control over fluid distribution. Widely utilized across industries like water treatment, chemical processing, and irrigation systems, PVC 3-way pneumatic actuator ball valves optimize fluid management processes.

Air actuated pvc 3 way plastic ball valve are used for on-off control of water and other media compatible with the materials of construction
Advantages: higher flow rates, higher pressures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Model: Pneumatic Ball Valves

Size Range: 1/2″-2″
Pressure Range: 1.0MPa~1.6MPa
Material: PVC, CPVC, UPVC

What Is The PVC 3 Way Pneumatic Actuator Ball Valve?

PVC 3-way pneumatic actuator ball valves are precision-engineered components utilized in fluid control systems to regulate the flow of liquids or gases along three distinct pathways. Constructed from durable PVC (polyvinyl chloride) material, these valves are specifically designed to withstand corrosive environments and aggressive fluids commonly encountered in industrial applications. Equipped with a pneumatic actuator, they offer efficient and reliable operation, allowing for precise control over fluid distribution.

The spherical closure mechanism (the “ball”) within the valve body facilitates smooth and accurate flow regulation, while the threaded connections ensure secure installation and sealing. Widely employed in industries such as water treatment, chemical processing, and irrigation systems, PVC 3-way pneumatic actuator ball valves play a vital role in optimizing fluid management processes and enhancing system performance.

Benefits Of PVC 3 Way Pneumatic Actuator Ball Valves

The advantages of PVC 3-way pneumatic actuator ball valves are evident in their durability, versatility, and operational efficiency. With their PVC construction, these valves exhibit remarkable corrosion resistance, prolonging their lifespan and minimizing maintenance needs.

Ball valves

The inclusion of a pneumatic actuator facilitates swift response times and accurate fluid control, enhancing overall system efficiency and performance. Moreover, their 3-way design offers flexibility in fluid distribution or mixing applications, providing a versatile solution for diverse industrial processes.

PVC 3 Way Pneumatic Actuator Ball Valves technical Parameter:

Actuator Type End Connection Medium Working Pressure Body Material
Spring Return / Double Acting Double Union, Thread Air, water, steam, oil, etc 10 / 16 bar (145 / 232 psi) Plastic UPVC
Size Range Body Material Structure Suitable Media Temperature Of Media
DN15-DN50 Plastic UPVC T port / L port Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc -10 to 180℃ (14℉ to 356℉)

Features Of PVC 3 Way Pneumatic Actuator Ball Valves

Corrosion Resistance: Constructed from PVC material, ensuring exceptional resistance to corrosion and chemical degradation.

Pneumatic Actuation: Equipped with a pneumatic actuator for efficient and precise control over fluid flow.

Three-Way Design: Allows for versatile fluid distribution or mixing applications, enhancing operational flexibility.

Wide Application Range: Suitable for use in various industries, including water treatment, chemical processing, and irrigation systems.

Durable Construction: Robust PVC construction ensures longevity and reliability in challenging operating environments.

Technical Parameters of Valves Actuator

Pneumatic actuator
Pneumatic actuators
actuators

Air source processor:  The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.

Pneumatic solenoid valve:  The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.

Limit switch:  The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.

Valve positioner:  The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.

Manual device:  The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
