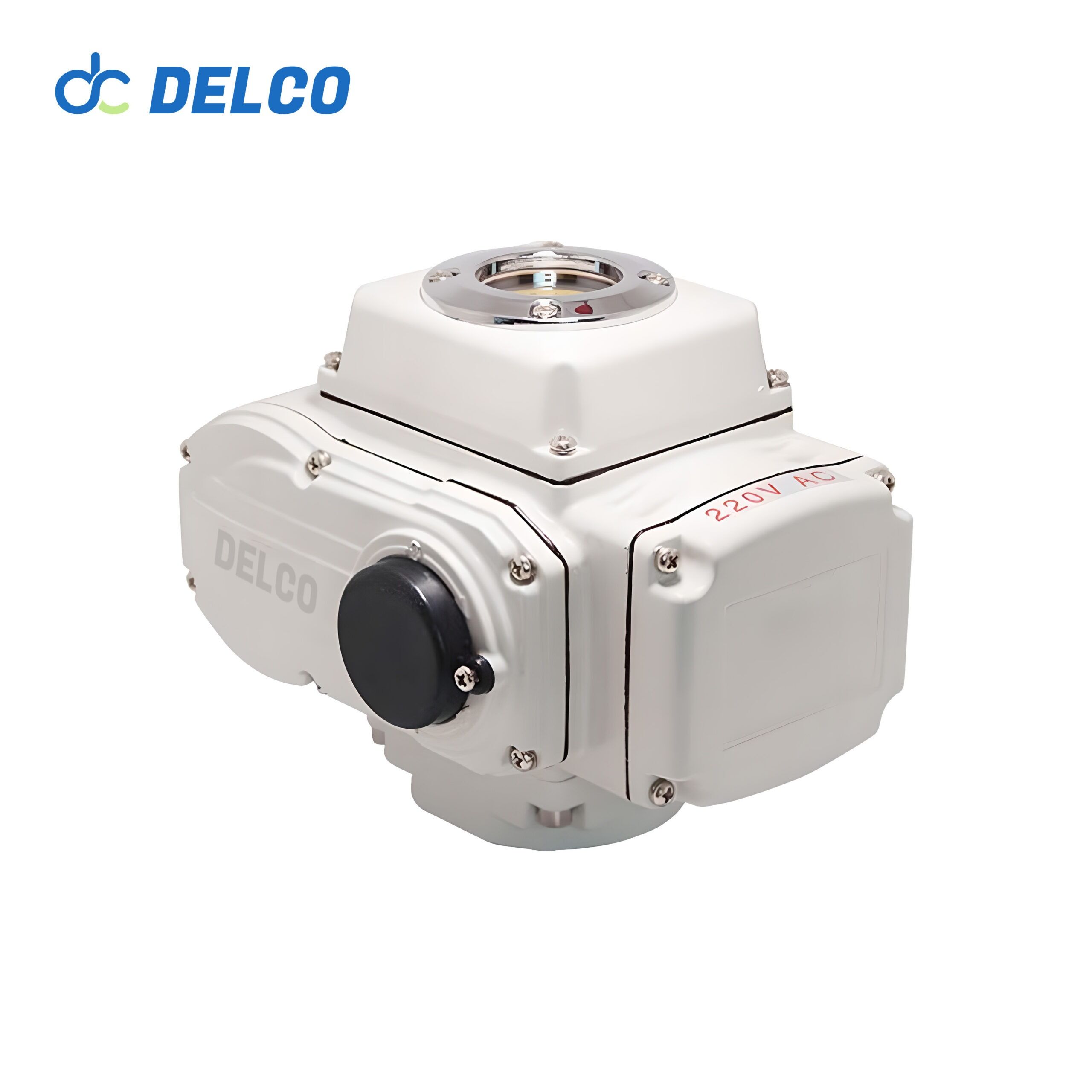

DELCO Regulating / Modulating Type Electric Actuator
Introducing the DELCO Valve Regulating/Modulating Electric Actuator, meticulously crafted with a robust aluminum alloy body. This actuator offers precise adjustment from 0 to 90 degrees, alongside manual override capability, ensuring seamless operation in various applications. With a torque range spanning from 50Nm to 4000Nm, it caters to a wide range of valve sizes, providing reliable performance and control.
This versatile actuator is designed to accept 4-20mADC, 1-5VDC, or 0-10VDC signals, offering flexible control options to suit different system requirements. Featuring an ISO 5211 mounting pad with a lever handle, installation and operation are simplified, enhancing efficiency and convenience. Trusted by industries worldwide, the DELCO Valve Regulating/Modulating Electric Actuator is the ideal solution for precise valve control in ball valves, butterfly valves, gate valves, and globe valves.
Model: Electric Actuator
Size Range: DK-05 to DK-400
Torque Output:50-400Nm
Material: Aluminum Alloy
Regulating / Modulating Type Electric Actuator
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.

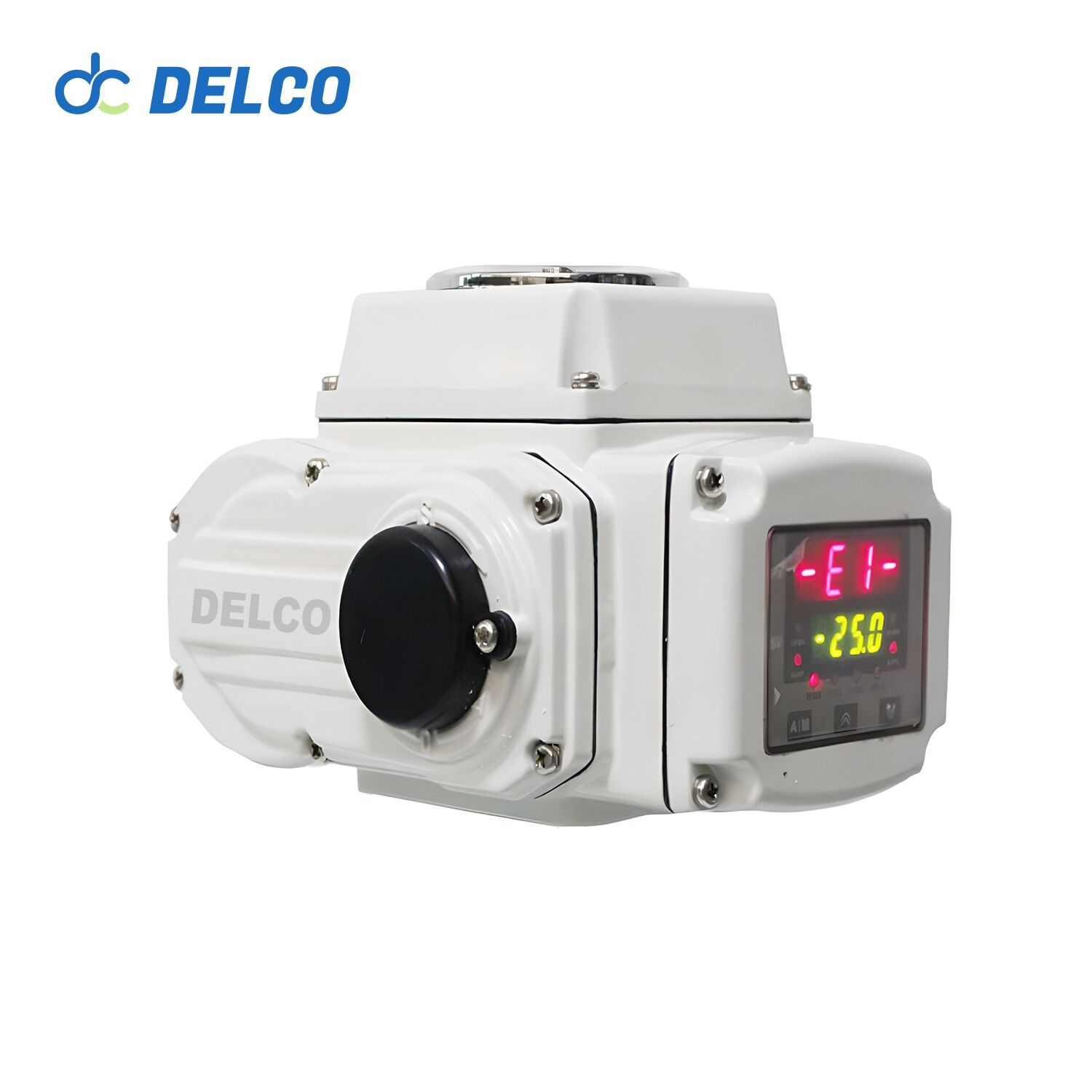

Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
Model and main technical parameters
Product Model: | DK | Housing Material: | Aluminum alloy |
Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10%,24/110/220VDC 50/60HZ±10% |
Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminium alloy, aluminium bronze, polycarbonate |
Ambient Humidity: | Up to 90% | Ingress Protection: | IP65; IP67; IP68 |
Explosion-proof grade: | Exd II BT4; Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
Regulating / Modulating Type Rotary Electric Actuator
- Torque Range: 50N.m or 4000N.m
- Quarter turn operation with mechanical stops
- Rugged Type 4X weatherproof aluminum alloy enclosure

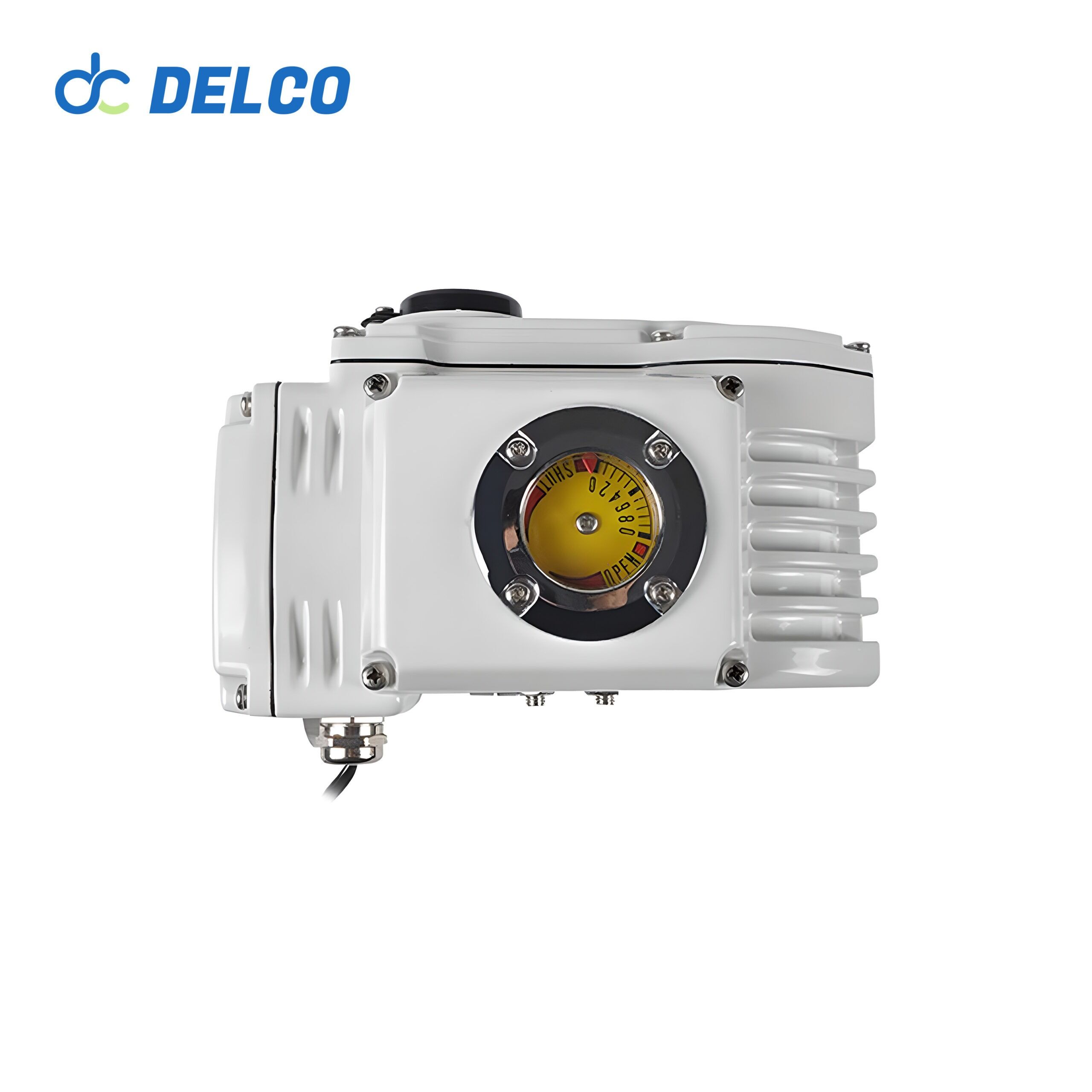

- Visual valve position indicator
- Angle of Rotation: 0-90◦

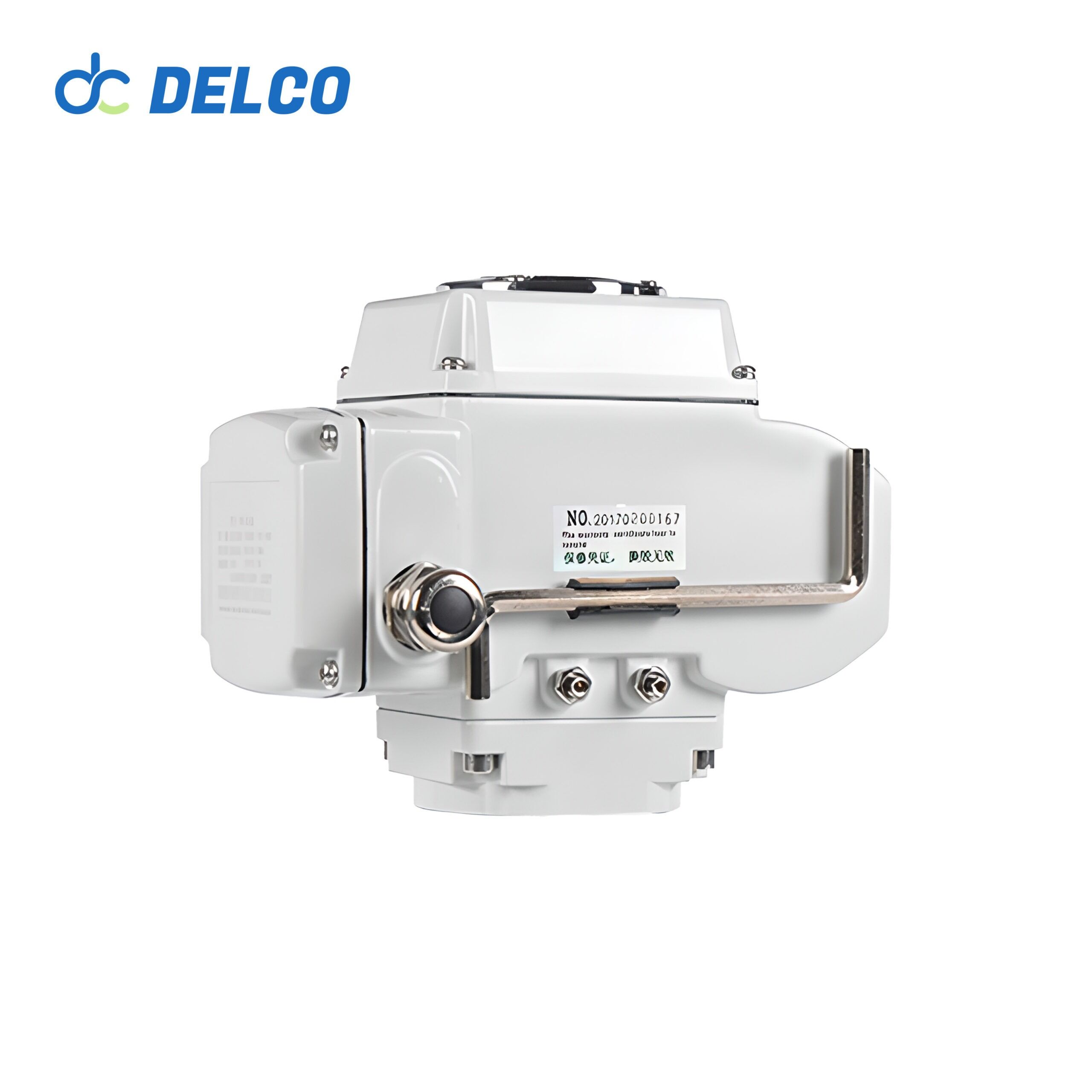

- With Manual override
- Heavy duty motor with overload protection
- Thermostatically controlled anti-condensation heater
- Two auxiliary limit switches to confirm valve positions
- Self-locking all metal gear drive, no additional brake required
- Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
- Input & Output Signal: 4-20mADC, 1-5VDC, 0-10VDC
- Tolerance: ±0.5%
