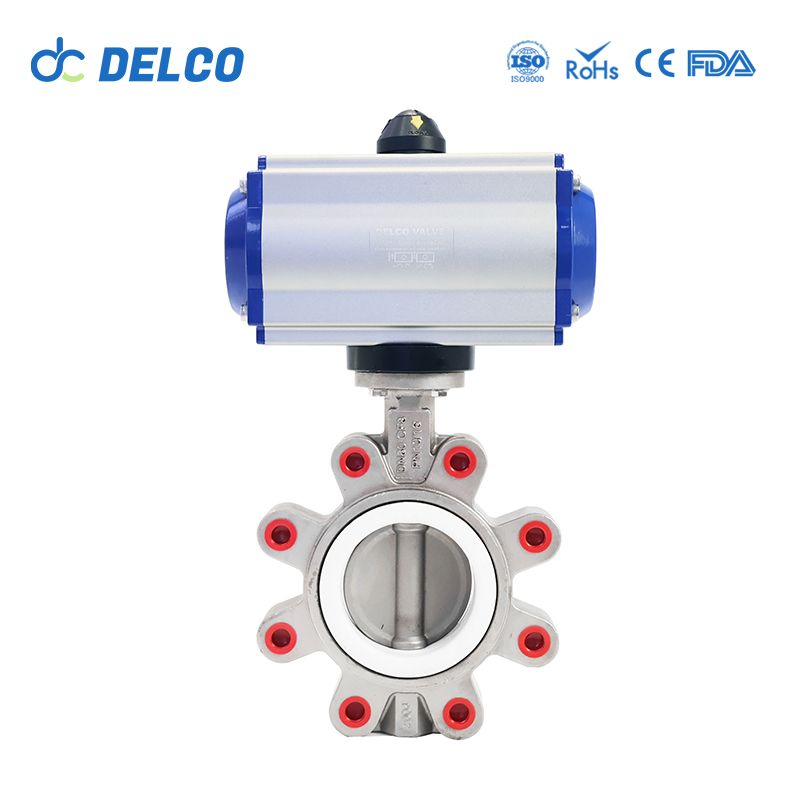

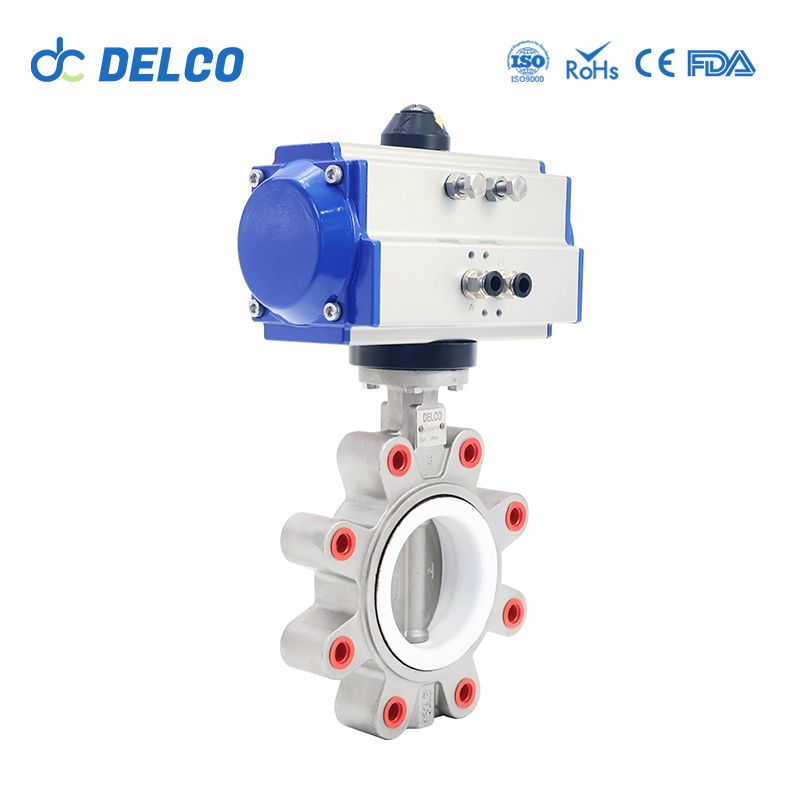

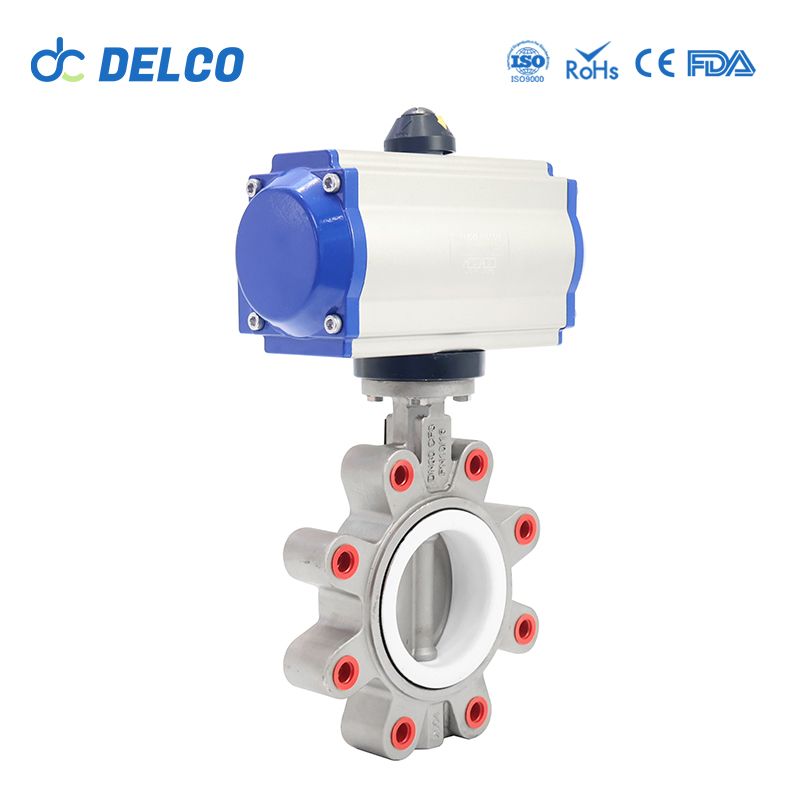

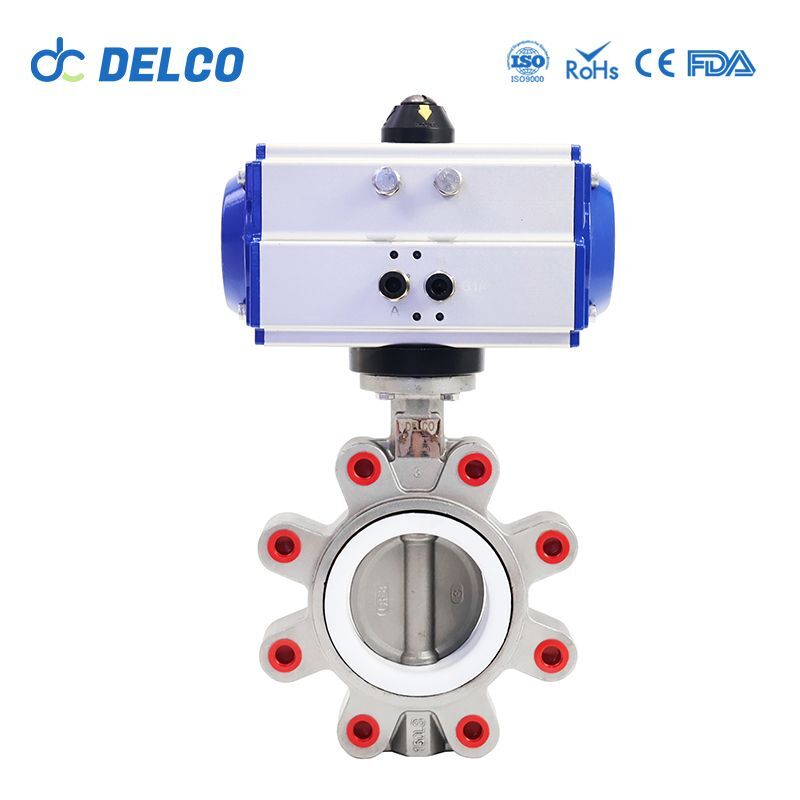

  5. Stainless Steel Lug Pneumatic Butterfly Valves-DK67-LB-S

Stainless Steel Lug Pneumatic Butterfly Valves-DK67-LB-S

Air actuated butterfly valves with lug body design offer versatile fluid control solutions. They come with either a spring return actuator or a double acting actuator, catering to different operational needs. These valves feature seals suitable for use with air, water, oil, and other compatible media.

Pneumatic butterfly valves are classified into two main types based on their sealing performance: metal seal and soft seal. Metal seal valves provide robust sealing performance, while soft seal valves offer flexibility and compatibility with various media.

The advantages of pneumatic butterfly valves include their compact structure, miniature size, long service life, excellent sealing performance, and easy maintenance with quick-detachable and installation features.

Model: DK67-LB-S

Size Range: 2”~16”

Pressure Range: 1.0MPa to 1.6MPa

Material: Stainless Steel 304/316 or Cast Iron

What Is The Pneumatic Lug Type Butterfly Valve?

LT type, also known as single plate butterfly valve or lug type butterfly valve, is a simple and efficient regulating valve. It features a disk-shaped closing element, known as a butterfly plate, which rotates around the valve shaft to control the flow of various fluids in low-pressure pipeline systems.

This versatile valve is suitable for a wide range of applications, including air, water, steam, corrosive media, mud, oil products, and liquid metals. Its primary function in pipelines is to cut off or throttle the flow of fluids. The butterfly plate, positioned within the valve body, rotates around its axis to facilitate opening, closing, or adjusting the flow as needed.

Lug Type Butterfly Valve

Data Sheet of Valve:

Body Size range Body material End connection Operating pressure Structure
DN50~DN400 Stainless steel  Lug, Flange 1.0 to 1.6MPa Midline Structure/ L-type
Valve components Sealing material Core material Stem material Applicable media
PTFE, PPL, NBR Stainless steel Stainless steel Water, oil, Gas, Liquid, steam, powder, anti-corrosive base

Pneumatic Lug Type Butterfly Valves Features:

● Air Pressure Supply: 2.0 bar to 8.0 bar
● Actuator Type: Spring Return(Single Acting) and Double Acting
● Structure: Midline Structure / A-Type
● Rotation: Quarter-turn
● Material: Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
● Connection Type: Wafer, Lug, Tri Clamp and Flange
● Features: Large Size Range, 1 Million Lifetime, Fast Acting, etc
● Suitable Medium: Water, Oil, Air, Gas, etc

Technical Parameters of Butterfly Valves:

Pneumatic actuator
Pneumatic actuators
actuators

Air source processor:  The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.

Pneumatic solenoid valve:  The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.

Limit switch:  The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.

Valve positioner:  The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.

Manual device:  The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
