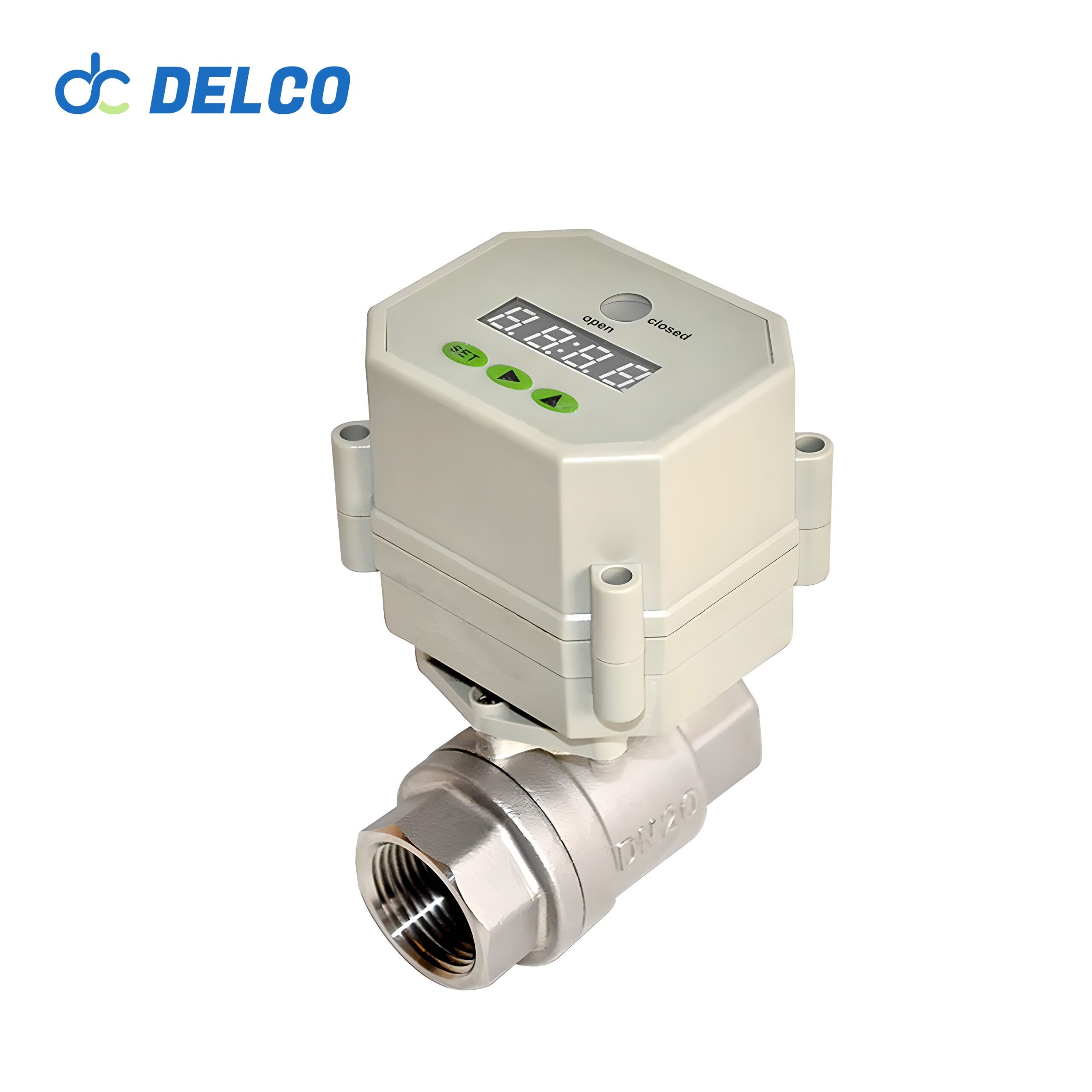

Stainless Steel Timer Control Electric Motorized Ball Valves
The DELCO Miniature Timer Control Motorized Ball Valve is constructed from high-quality brass and stainless steel, and is available in gray and black colors. It operates on a wide voltage range of AC110V to 230V and DC9 to 24V, and comes in sizes from 1/2” to 2”. This valve ensures zero leakage and excellent sealing performance, and features a user-friendly ON/OFF timer control. OEM branding is available for customized needs.
It has proven effective in various industrial applications, including air conditioning systems, fire fighting systems, water treatment systems, pipeline purging, analytical instruments, and flue gas sampling, among others.
Model: Motorized Ball Valves
Size Range: 1/2″ to 1″
Pressure Range: 0~1.0MPa
Material: Stainless Steel 304/316 or brass
What Is Timer Control Electric Motorized Ball Valve?
Timer control electric motorized ball valves are valves that combine the functionality of an electric motorized ball valve with a timer control feature. These valves use an electric actuator to rotate a ball with a hole through it, allowing for precise control of fluid flow. The integrated timer allows users to schedule the opening and closing of the valve at specific times, enabling automated and timed operations without manual intervention.
These valves are particularly useful in applications where fluid flow needs to be regulated at specific intervals. For example, they can be used in irrigation systems to water plants at set times, in industrial processes to control the flow of chemicals or gases according to a predefined schedule, and in HVAC systems to manage heating or cooling cycles. The combination of motorized operation and timer control enhances efficiency, convenience, and precision in various applications.
Data Sheet of Valve:
Model | Motorized Ball Valves | Voltage | AC110V~230V, DC9~24V |
MOQ | 1 Set | Working current | ≤80mA |
Open/Close time | ≤7s | No. of Ways | 2 Way |
Torque output | 2.0N.M | End Connection | BSP Thread |
Life time | 100,000 times | Medium | Water, Air |

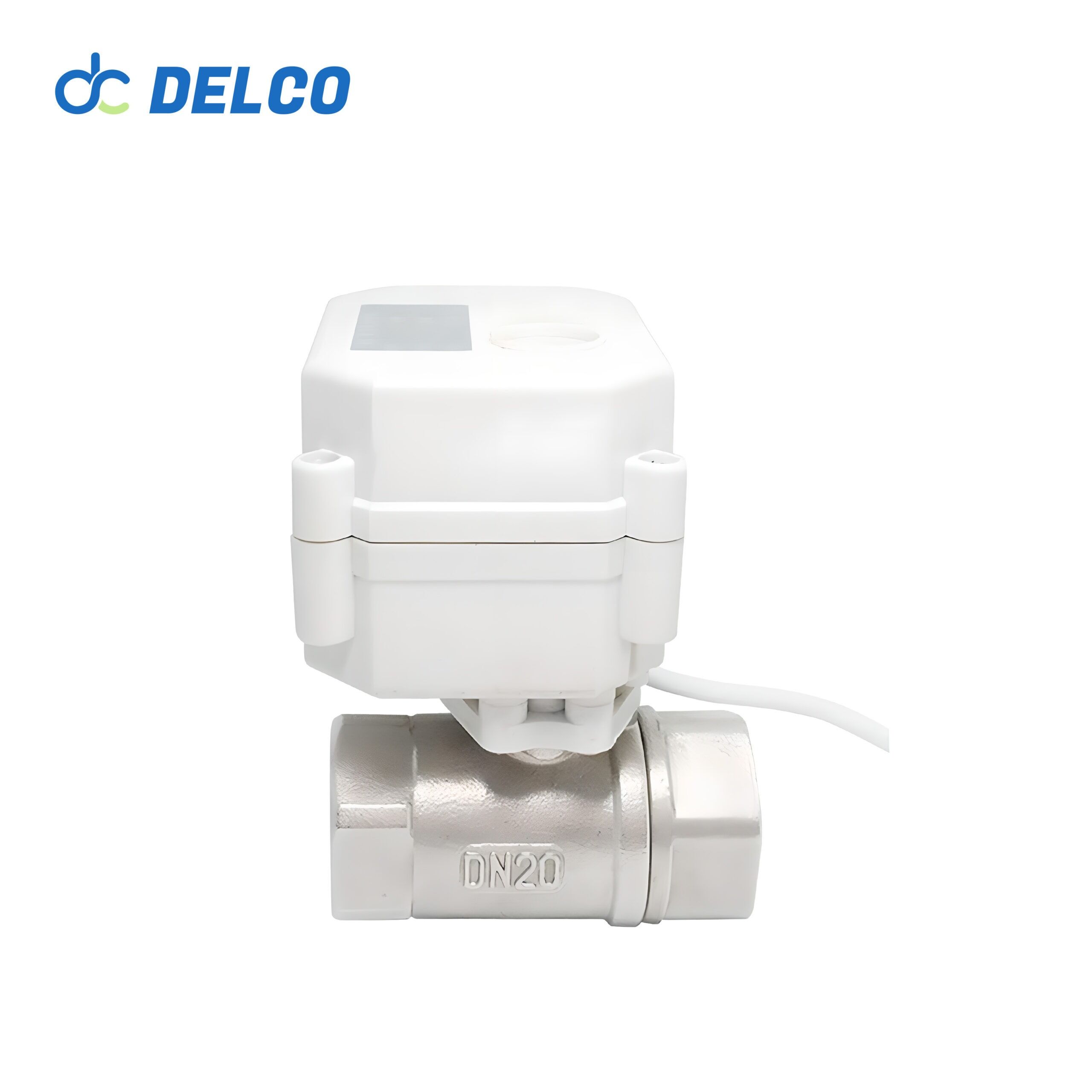

DELCO Valve 304 Electric Water Ball Valve
- All-copper gear design, high accuracy output torque, especially for multi-channel scaling system
- Small size, compact structure, easy to set time control
- A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing
- Good sealing performance. IP67 protection class
- Leakage: Zero leakage, Return difference: ±2.5%
One-time business is not our goal, we pursuit for long-term partner relationships.
- Telephone: +86 159 8960 2972
- 24 Hours Service: +86-159 8960 2972
- WhatsApp: +86-159 8960 2972
- Wechat: +86 159 8960 2972
- Email: sales@delcofluid.com
We are not just providing simple quotes but experts in selection, calculation, and drawing.
ASK FOR A QUOTE
