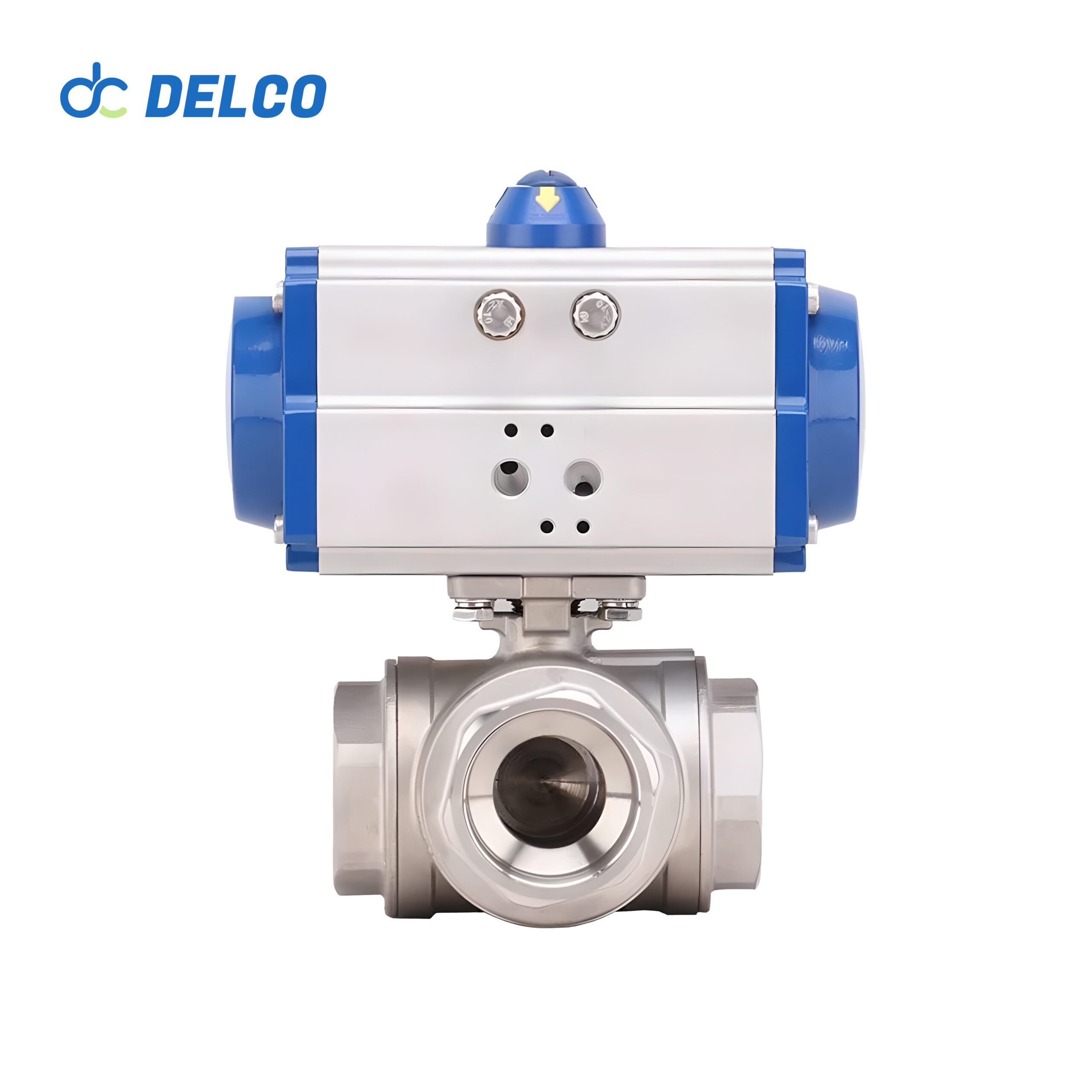

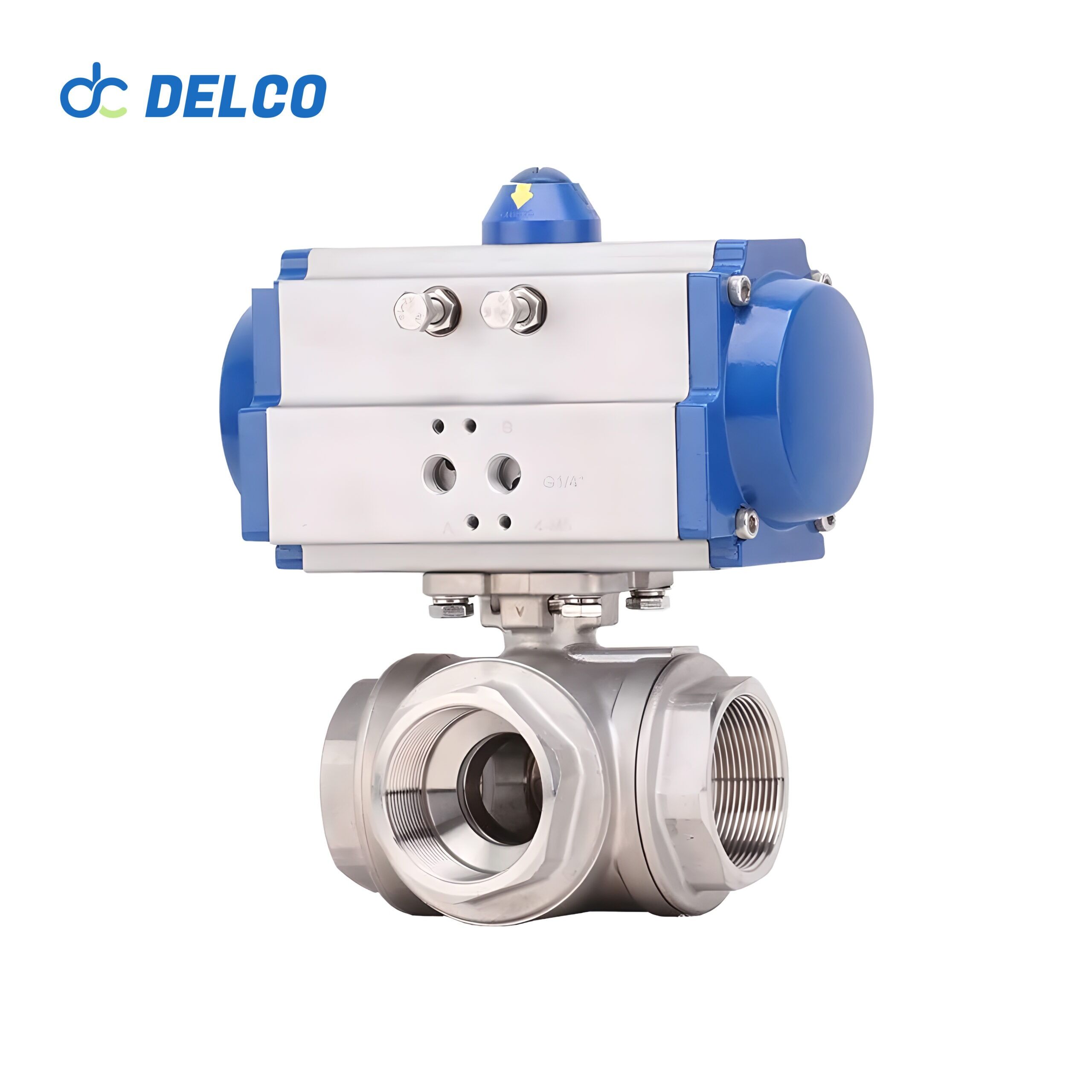

DELCO Pneumatic 3-way thread ball valves-DK66-3T
Pneumatic 3-way threaded ball valves are essential components in fluid control systems, designed to regulate the flow of liquids or gases along three different pathways. Featuring a threaded connection design, these valves provide precise control and versatility in directing fluid flow within pipelines. Commonly employed in industrial applications such as chemical processing, HVAC systems, and water treatment, pneumatic 3-way threaded ball valves play a crucial role in optimizing fluid distribution and mixing processes.
Actuator Types: Spring Return(Single Acting) and Double Acting Pneumatic Actuator
Material Options: Cast Iron, WCB, Stainless Steel And Plastic
Suitable Medium: Water, Wastewater, Steam, Oil, Air, Gas, Pulp, etc
- Model: Pneumatic ball valves
- Size Range: 1/4″ to 4″
- Pressure Range: 1.0 to 1.6MPa
- Material: Stainless Steel 304/316
What Is The Pneumatic 3-way Thread Ball Valve？
Pneumatic 3-way threaded ball valves are precision-engineered components utilized in fluid control systems to manage the flow of liquids or gases along three distinct pathways. Characterized by their threaded connections, these valves feature a spherical closure mechanism (the “ball”) that allows for redirection or mixing of fluids within pipelines.
They are designed to provide precise control over fluid flow, enabling operators to regulate distribution or mixing processes with accuracy and efficiency. Commonly employed in industrial settings such as chemical processing, HVAC systems, and water treatment, pneumatic 3-way threaded ball valves play a critical role in optimizing fluid management and system performance.
Benefits Of Pneumatic 3-way Thread Ball Valves
The advantages of pneumatic 3-way threaded ball valves lie in their versatility, precision, and reliability. These valves provide seamless redirection of fluid flow, eliminating the need for additional piping components and reducing installation complexity. With pneumatic actuation, they offer rapid response and accurate control over fluid distribution or mixing processes. Furthermore, their robust construction and threaded connections ensure secure sealing, preventing leakage and enhancing system integrity. Overall, pneumatic 3-way threaded ball valves offer a dependable solution for fluid control applications, improving operational efficiency and facilitating seamless fluid management.
Pneumatic 3-way thread ball valves technical Parameter：
| Valve Body | Valve components | ||
| Size Range | DNO8-DN100 | Sealing material | Stainless Steel |
| Body Material | SS304 SS316 SS316L | Core Material | Stainless Steel 316 |
| End Connection | Threaded, Butt Welded | Stem Material | PTFE:30℃~180℃PPL:30℃~250℃ |
| Structure | 3 Way L-port/ T-port | Applicable media | Control of Water, Air, Gas, Oil, Liquid, Steam |
Versatile Flow Control: With three distinct pathways, pneumatic 3-way threaded ball valves offer versatile flow control options, enabling redirection or mixing of fluids as per operational requirements.
Threaded Connection Design: The threaded connections of these valves allow for easy installation and maintenance, ensuring secure sealing and minimizing the risk of leakage.
Precision Operation: Equipped with pneumatic actuation, these valves offer rapid response and precise control over fluid flow, facilitating efficient operation and process optimization.
Robust Construction: Constructed from high-quality materials, pneumatic 3-way threaded ball valves exhibit durability and reliability, capable of withstanding harsh operating conditions and ensuring long-term performance.
Wide Application Range: Suitable for a variety of industrial applications, including chemical processing, HVAC systems, and water treatment, these valves provide a dependable solution for fluid control needs in diverse environments.
Technical Parameters of Valves Actuator
Air source processor: The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.
Pneumatic solenoid valve: The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.
Limit switch: The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.
Valve positioner: The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.
Manual device: The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
